HOME Portable instruments Air flow meters Air Flow Meter

DBM 620

Air Flow Meter

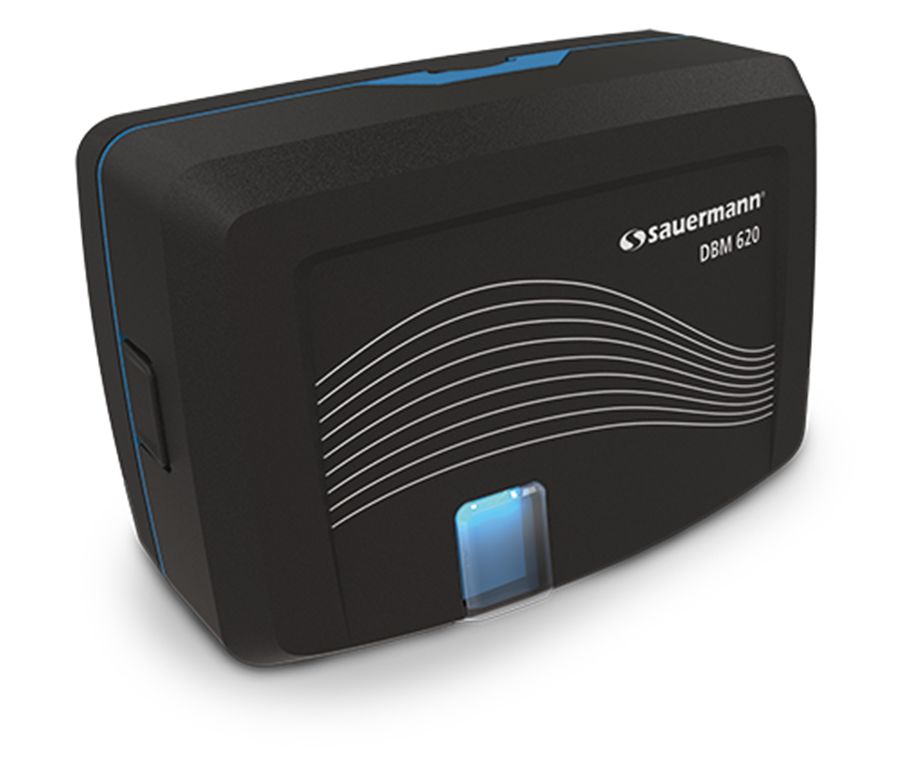

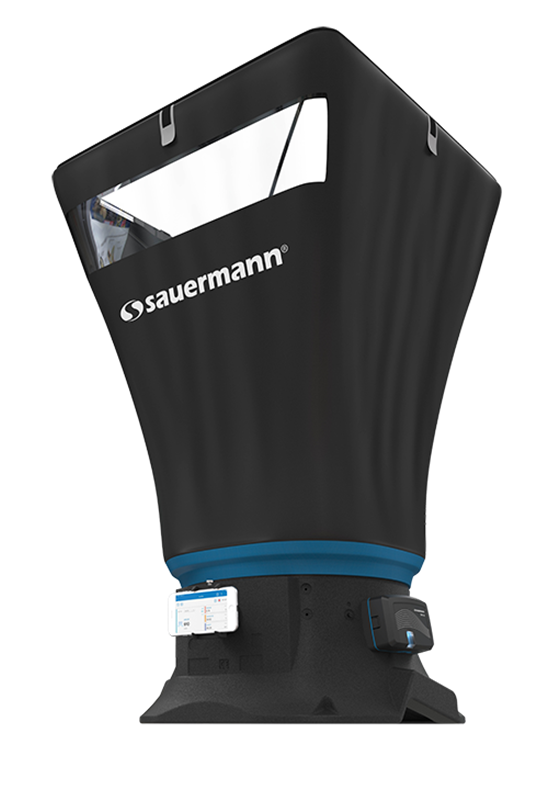

The newly redesigned Kimo DBM 620 Air Flow Meter is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings from air vents.

Technical specification table Operation manual Operation Manual (Simplified Version)

Air Changes per Hour (ACPH) metric is the first of its kind to be included in a Balometer

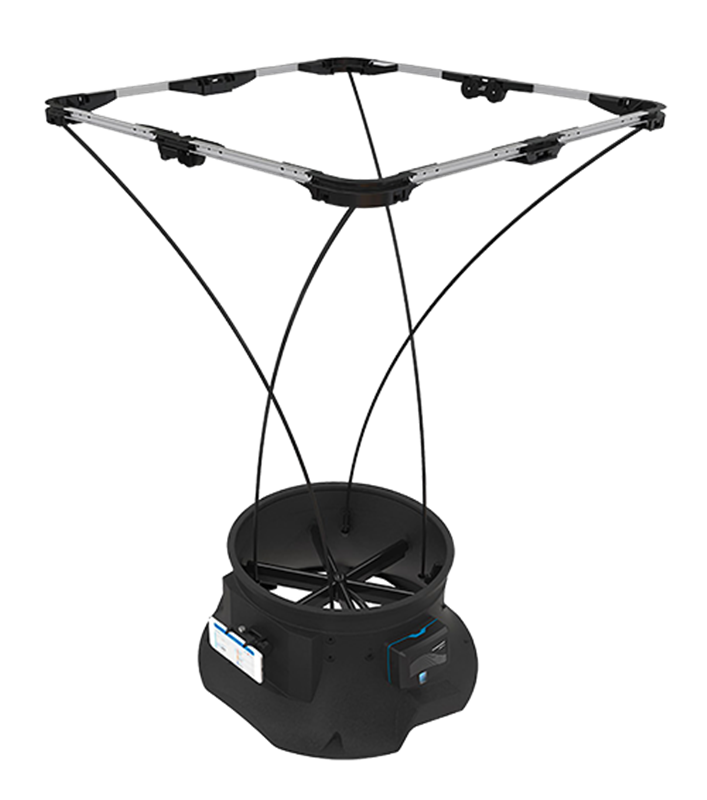

Easily swap between 5 different hood configurations

Sauermann Pilot App allows for easy reading and export of data

Also functions as autonomous micromanometer with Pitot tube attachment

Lighter and smaller than previous models

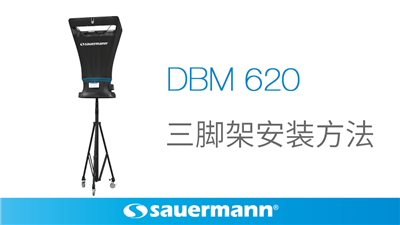

Extendable tripod eliminates the need for ladders in most environments

×

Product info

APPSoftware

Video

Compliance

MEASURE DETAILS

Units
°F, °C, % RH, Pa, m/s, mbar, l/s, hPa, ft/min, m³/h, inWg, cfm

MEASURING RANGES

Débit (paramètre calculé)
35.00 m³/h ... 4250.00 m³/h
Débit (paramètre calculé)
10.00 l/s ... 1181.00 l/s
Débit (paramètre calculé)
21.00 cfm ... 2501.00 cfm
Vitesse (paramètre calculé)
0.20 m/s ... 10.00 m/s
Vitesse (paramètre calculé)
39.00 ft/min ... 1969.00 ft/min
Température (CTN)
-20.00 °C ... 70.00 °C
Température (CTN)
-4.00 °F ... 158.00 °F
Humidité relative (capteur capacitif)
0.00 % RH ... 100.00 % RH
Pression atmosphérique
700.00 hPa ... 1100.00 hPa
Pression
-2500.00 Pa ... 2500.00 Pa
Pression
-10.00 inWg ... 10.00 inWg

TECHNICAL DETAILS

Parameters
Air velocity
Airflow
Atmospheric pressure
Differential pressure
Humidity
Temperature
Displays
No
IP Protection
IP 40
Battery life
30 hours
Standards
UKCA
2011/65/EU RoHS II
2012/19/EU WEEE
2014/53/EU RED
Wireless connection
1
Power supply
4 alkaline batteries LR6 AA 1.5V
Protective cover
No
Interchangeable module
No

INSTRUMENT DIMENSIONS

Length
1 9/16 inches
475 mm
Width
1 1/2 inches
455 mm
Height
27/32 inches
255 mm
Weight
6 13/32 pounds
2900 g

OPERATING TEMPERATURE

Min
-5.00 °C
23.00 °F
Max
50.00 °C
122.00 °F

STORAGE TEMPERATURE

Min
-20.00 °C
-4.00 °F
Max
60.00 °C
140.00 °F

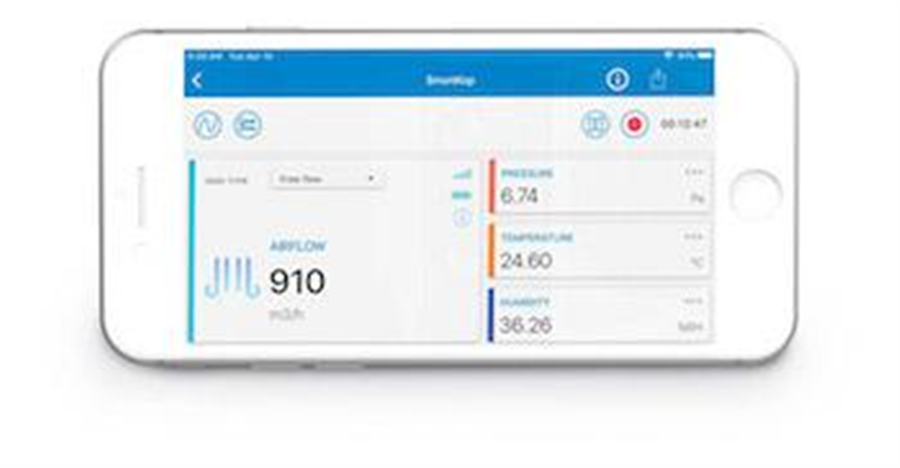

SmartKap Mobile App

SmartKap Mobile App

RoHS Certificate Reach certificate CE certificate
