HOME Data loggers Autonomous data loggers Temperature

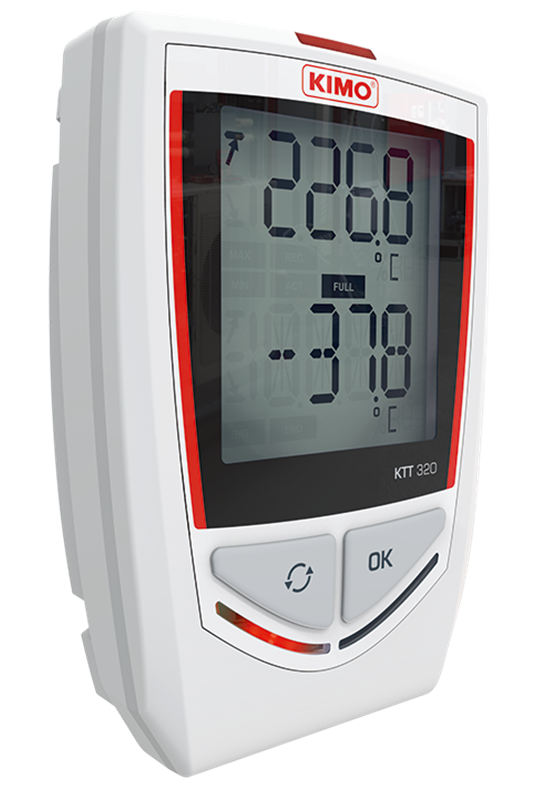

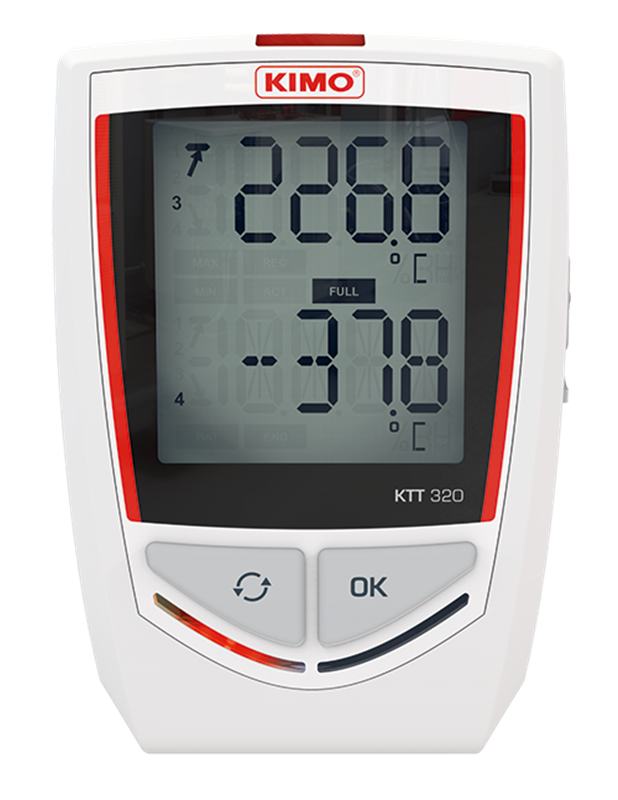

KTT 320

Temperature

When easy wireless connection and a wide range of temperature readings are needed, the KTT 320 Thermocouple Data Logger is the key with its four thermocouple inputs.
Data Loggers are widely used in agriculture, industry and clinical laboratories to monitor a variety of parameters.

Technical specification table Operation manual Operation Manual (Simplified Version)

Wireless connection for smartphones & tablets (Android and iOS)

Large storage capacity of 2 million points

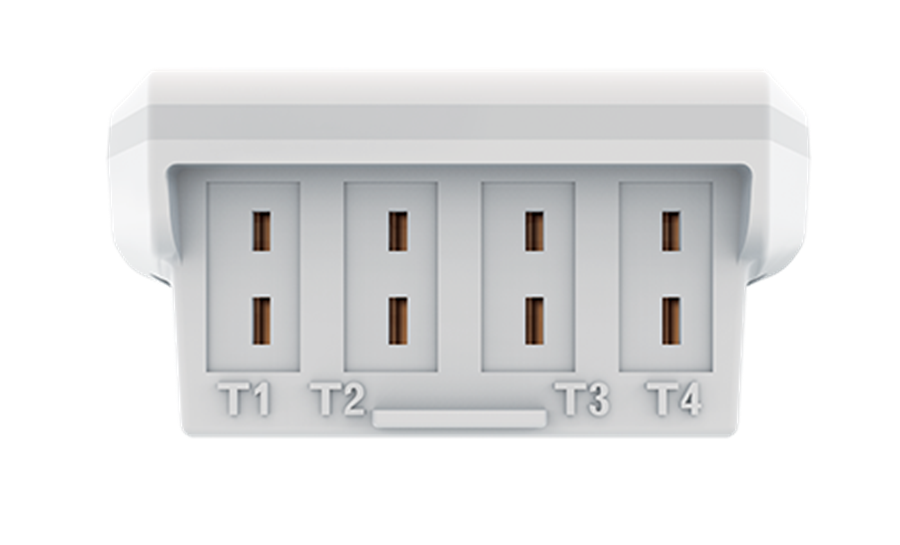

4 Thermocouple probe inputs

Supplied with an anti-theft wall mount with lock

Free downloadable basic software

Large 2-line LCD screen

×

Product info

Probe

Accessories

APPSoftware

Compliance

MEASURE DETAILS

Frequency of measurements min
1 seconds
Frequency of measurements max
24 hours
Number of record points
2 000 000
Units
°F, °C
Alarm
2 configurable setpoint alarms

TECHNICAL DETAILS

Parameters
Temperature
Displays
2-line display
IP Protection
IP 54
Battery life
5 years
Standards
FCC part 15
UKCA
UL61010
2011/65/EU RoHS II
2012/19/EU WEEE
2014/30/EU EMC
2014/35/EU Low Voltage
Wireless connection
1
Power supply
2 lithium double AA 3.6 V batteries EN
Sensors
External sensors
Magnetise case
Yes
Securable mounting
Yes, wall bracket & lock included

INSTRUMENT DIMENSIONS

Length
4 11/32 inches
110.2 mm
Width
3 1/8 inches
79 mm
Height
1 3/8 inches
35.4 mm
Weight
200 g

OPERATING TEMPERATURE

Min
-20.00 °C
-4.00 °F
Max
70.00 °C
158.00 °F

STORAGE TEMPERATURE

Min
-20.00 °C
-4.00 °F
Max
50.00 °C
122.00 °F

Temperature / Hygrometry / Current / Voltage / Impulse

Temperature / Hygrometry / Current / Voltage / Impulse

Pt100 temperature probes

Pt100 temperature probes

Thermo-hygrometry probes

Thermo-hygrometry probes

Ammeter clamps For class 220 Kistock

Ammeter clamps For class 220 Kistock

Current / voltage input cables

Current / voltage input cables

KNT 320 data collector

KNT 320 data collector

Wall mount anti-theft device

Wall mount anti-theft device

Configuration software for Kistock data loggers

Configuration software for Kistock data loggers

KILOG

KILOG

Kistock mobile

Kistock mobile

RoHS Certificate Reach certificate CE certificate
