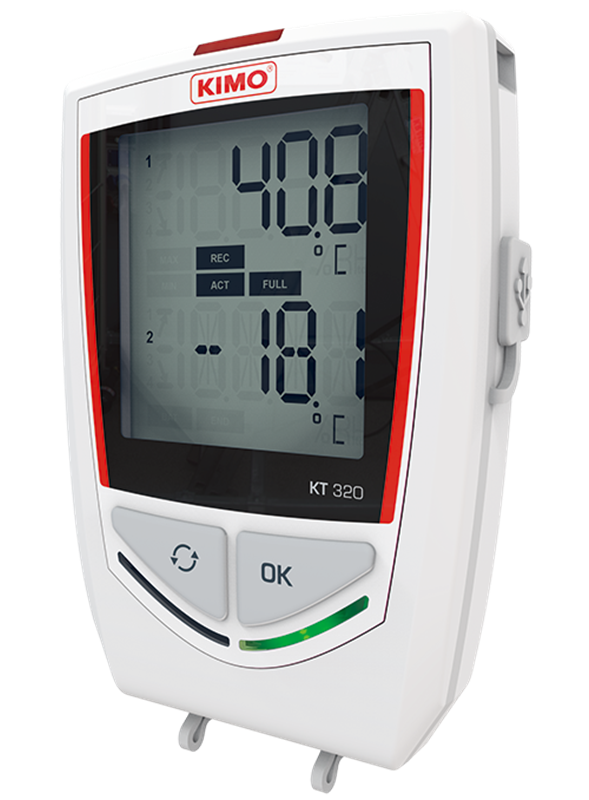

KT 320

Temperature / Hygrometry / Current / Voltage / Impulse

Inquiry

Need quick access to data but don’t want to remove the logger from its location? The KT 320 Multi-Function Data Logger utilizes wireless connection via the Kistock Mobile app which allows for connection between the logger and a smartphone or tablet. It can also measure up to five recordable parameters simultaneously.

Technical specification table Operation manual Operation Manual (Simplified Version)

Wireless connection for smartphones & tablets (Android and iOS)

Large storage capacity of 2 million points

Supplied with an anti-theft wall mount with lock

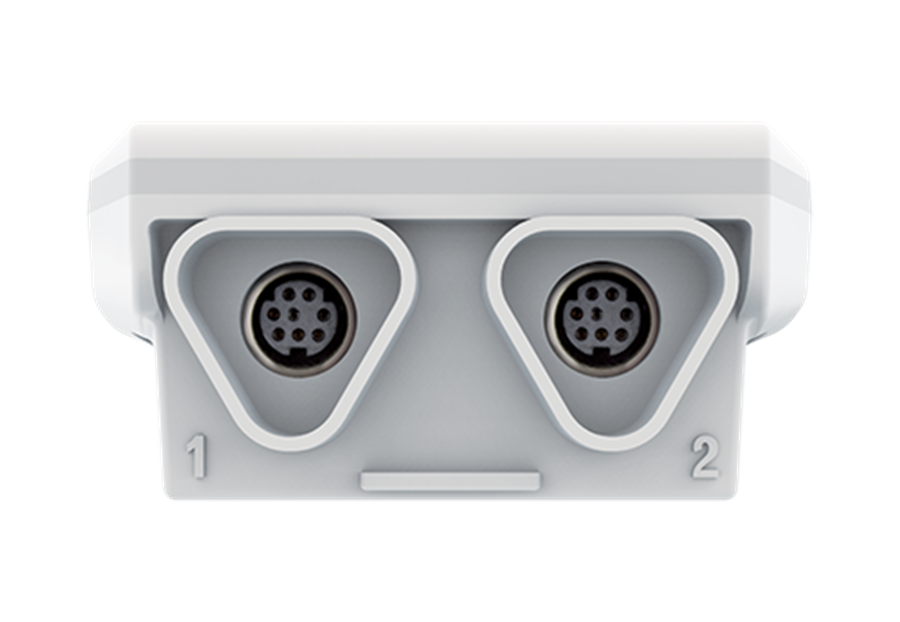

2 Smart plug probe inputs

Large easy to read 2-line LCD screen

Free downloadable basic software


×

Product info

Probe

Accessories

APPSoftware

Compliance

MEASURE DETAILS

  • Frequency of measurements min
    1 seconds
  • Frequency of measurements max
    24 hours
  • Number of record points
    2 000 000
  • Units
    °F, °C, % RH, A, mA, mV, V
  • Alarm
    2 configurable setpoint alarms

TECHNICAL DETAILS

  • Parameters
    Current
    Humidity
    Impulsion
    Temperature
    Voltage
  • Displays
    2-line display
  • IP Protection
    IP 65
  • Battery life
    5 years
  • Standards
    FCC part 15
    UKCA
    UL61010
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Wireless connection
    1
  • Power supply
    2 lithium double AA 3.6 V batteries
  • Sensors
    External sensors
    Internal sensors
  • Magnetise case
    Yes
  • Securable mounting
    Yes, wall bracket & lock included


INSTRUMENT DIMENSIONS

  • Length
    4 11/32 inches
    110.2 mm
  • Width
    3 1/8 inches
    79 mm
  • Height
    1 3/8 inches
    35.4 mm
  • Weight
    206 g



OPERATING TEMPERATURE

  • Min
    -40.00 °C
    -40.00 °F
  • Max
    70.00 °C
    158.00 °F

STORAGE TEMPERATURE

  • Min
    -20.00 °C
    -4.00 °F
  • Max
    50.00 °C
    122.00 °F



Polycarbonate case

Polycarbonate case
Pt100 temperature probes

Pt100 temperature probes

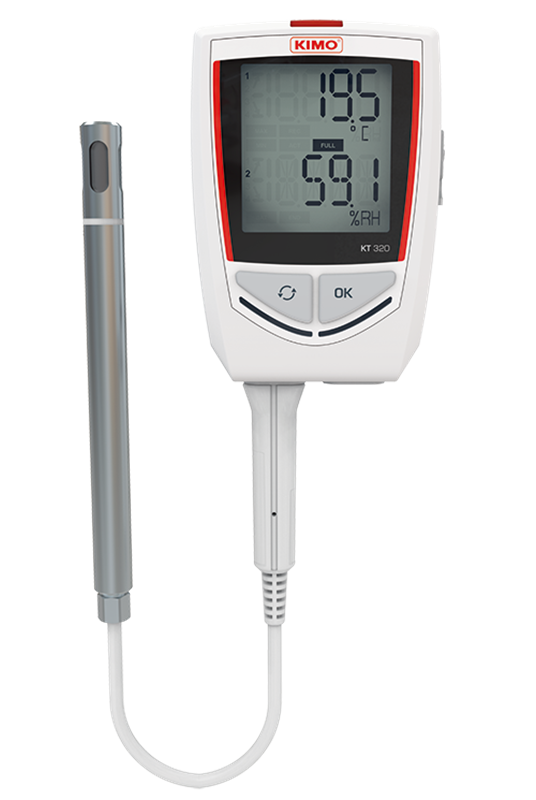

Thermo-hygrometry probes

Thermo-hygrometry probes
Ammeter clamps For class 220 Kistock

Ammeter clamps For class 220 Kistock
Current / voltage input cables

Current / voltage input cables
KNT 320 data collector

KNT 320 data collector
Wall mount anti-theft device

Wall mount anti-theft device
Configuration software for Kistock data loggers

Configuration software for Kistock data loggers
KILOG

KILOG
Kistock mobile

Kistock mobile
