KTT 220

Temperature

Inquiry

When a wide range of temperature readings are needed, the KTT 220 Multi-Function Thermocouple Data Logger is the key with its two thermocouple inputs.
Data Loggers are widely used in agriculture, industry and clinical laboratories to monitor a variety of parameters.

Technical specification table Operation manual Operation Manual (Simplified Version)

Inputs for 2 thermocouple probes

Large easy to read 2-line display

Magnetic back for fast & simple mounting

Large storage capacity of 1 million points

Fast data downloading (18,000 points/second)

Monitoring mode for detailed reporting outside of set points


×

Product info

Probe

Accessories

APPSoftware

Compliance

MEASURE DETAILS

  • Frequency of measurements min
    1 seconds
  • Frequency of measurements max
    24 hours
  • Number of record points
    1 000 000
  • Units
    °F, °C
  • Alarm
    2 configurable setpoint alarms

TECHNICAL DETAILS

  • Parameters
    Temperature
  • Displays
    2-line display
  • IP Protection
    IP 54
  • Battery life
    4 years
  • Standards
    FCC part 15
    UKCA
    UL61010
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    1 AA lithium 3.6V battery
  • Sensors
    External sensors
  • Magnetise case
    Yes
  • Securable mounting
    Yes, wall bracket & lock included


INSTRUMENT DIMENSIONS

  • Length
    3 21/32 inches
    93.2 mm
  • Width
    2 9/16 inches
    65.2 mm
  • Height
    1 3/16 inches
    30.5 mm
  • Weight
    115 g



OPERATING TEMPERATURE

  • Min
    -20.00 °C
    -4.00 °F
  • Max
    70.00 °C
    158.00 °F

STORAGE TEMPERATURE

  • Min
    -20.00 °C
    -4.00 °F
  • Max
    50.00 °C
    122.00 °F



Temperature / Hygrometry / Current / Voltage / Impulse

Temperature / Hygrometry / Current / Voltage / Impulse
Thermo-hygrometry probes

Thermo-hygrometry probes
NTC temperature probes

NTC temperature probes
Water pressure probe

Water pressure probe

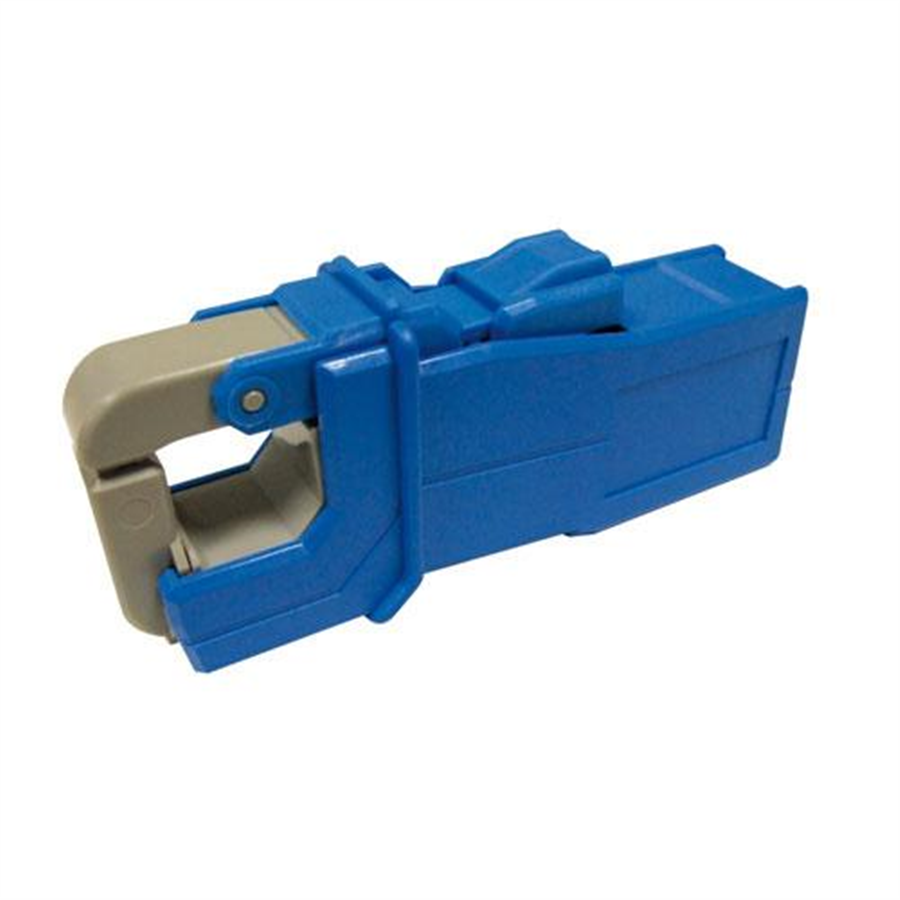

Ammeter clamps For class 220 Kistock

Ammeter clamps For class 220 Kistock

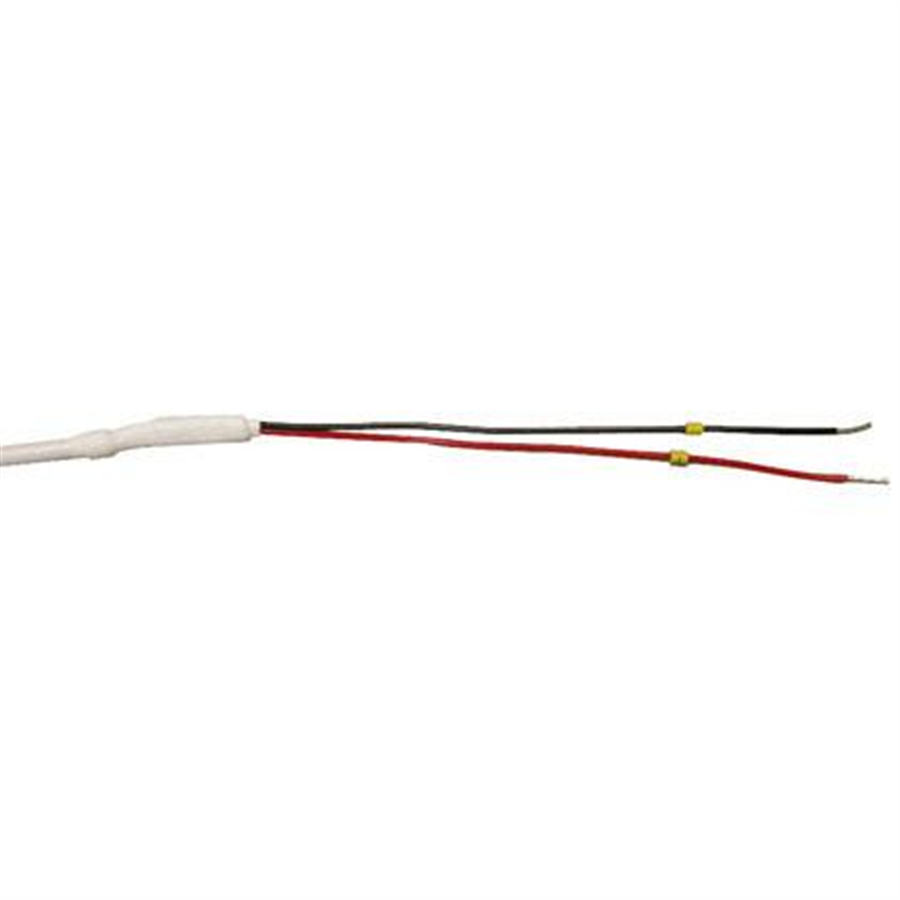

Current / voltage input cables

Current / voltage input cables
KNT 320 data collector

KNT 320 data collector
Wall mount anti-theft device

Wall mount anti-theft device
Configuration software for Kistock data loggers

Configuration software for Kistock data loggers
KILOG

KILOG
