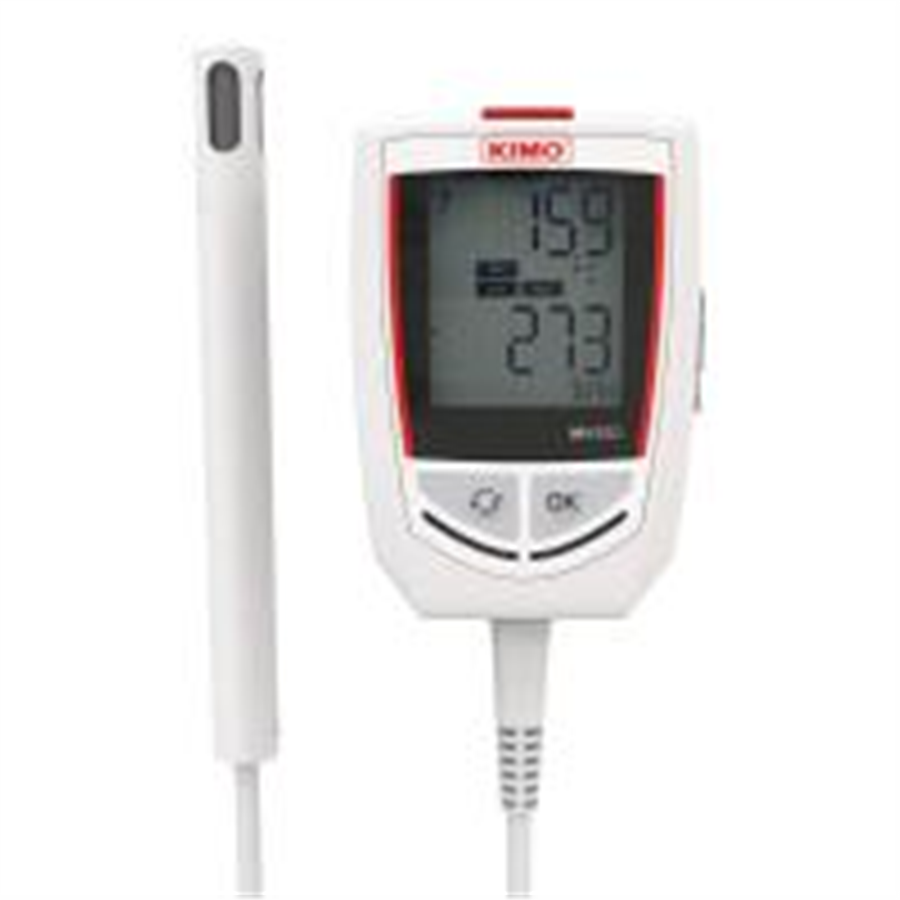

KH 220

Temperature / Hygrometry / Current / Voltage / Impulse / Water pressure / Light

Inquiry

The KH 220 Multifunction Data Logger is the answer when up to five parameters need to be recorded simultaneously.
Data Loggers are widely used in agriculture, industry and clinical laboratories to monitor a variety of parameters.

Technical specification table Operation manual Operation Manual (Simplified Version)

Free downloadable basic software

2 configurable set point alarms

Large storage capacity of 1 million points

Input for 1 universal probe

Magnetic back for fast & simple mounting

Monitoring mode for detailed reporting outside of set points


×

Product info

Probe

Accessories

APPSoftware

Compliance

MEASURE DETAILS

  • Frequency of measurements min
    1 seconds
  • Frequency of measurements max
    24 hours
  • Number of record points
    1 000 000
  • Units
    °F, °C, % RH, A, bar, fc, lux, mA, mV, V, °Ftd
  • Alarm
    2 configurable setpoint alarms

TECHNICAL DETAILS

  • Parameters
    Current
    Humidity
    Impulsion
    Light
    Temperature
    Voltage
    Water pressure
  • Displays
    2-line display
  • IP Protection
    IP 20
  • Battery life
    4 years
  • Standards
    FCC part 15
    UKCA
    UL61010
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    1AA lithium 3.6V battery
  • Sensors
    External sensors
    Internal sensors
  • Magnetise case
    Yes
  • Securable mounting
    Yes, wall bracket & lock included


INSTRUMENT DIMENSIONS

  • Length
    3 25/32 inches
    96 mm
  • Width
    2 9/16 inches
    65.2 mm
  • Height
    1 3/16 inches
    30.5 mm
  • Weight
    115 g



OPERATING TEMPERATURE

  • Min
    -20.00 °C
    -4.00 °F
  • Max
    70.00 °C
    158.00 °F

STORAGE TEMPERATURE

  • Min
    -20.00 °C
    -4.00 °F
  • Max
    50.00 °C
    122.00 °F



Polycarbonate case

Polycarbonate case
Thermo-hygrometry probes

Thermo-hygrometry probes
NTC temperature probes

NTC temperature probes
Water pressure probe

Water pressure probe
Ammeter clamps For class 220 Kistock

Ammeter clamps For class 220 Kistock
Current / voltage input cables

Current / voltage input cables
KNT 320 data collector

KNT 320 data collector
Wall mount anti-theft device

Wall mount anti-theft device
Configuration software for Kistock data loggers

Configuration software for Kistock data loggers
Kistock mobile

Kistock mobile
RoHS Certificate Reach certificate CE certificate
