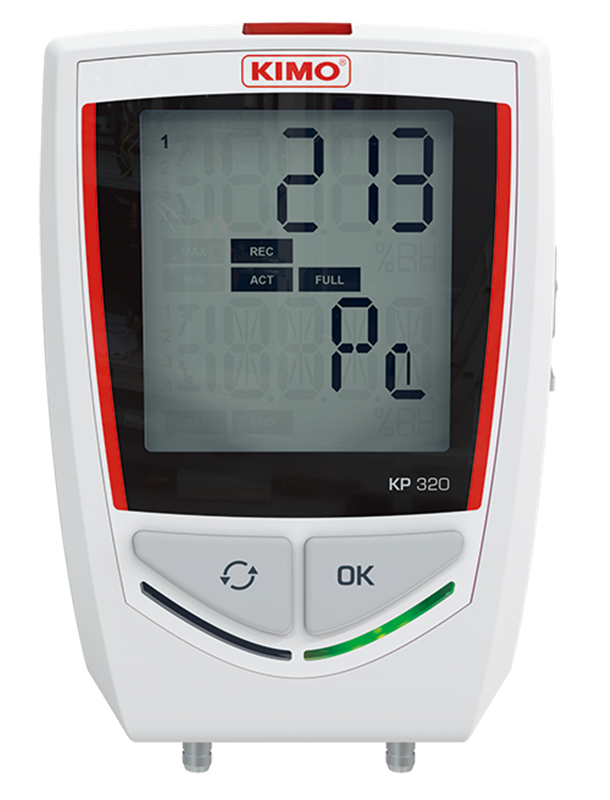

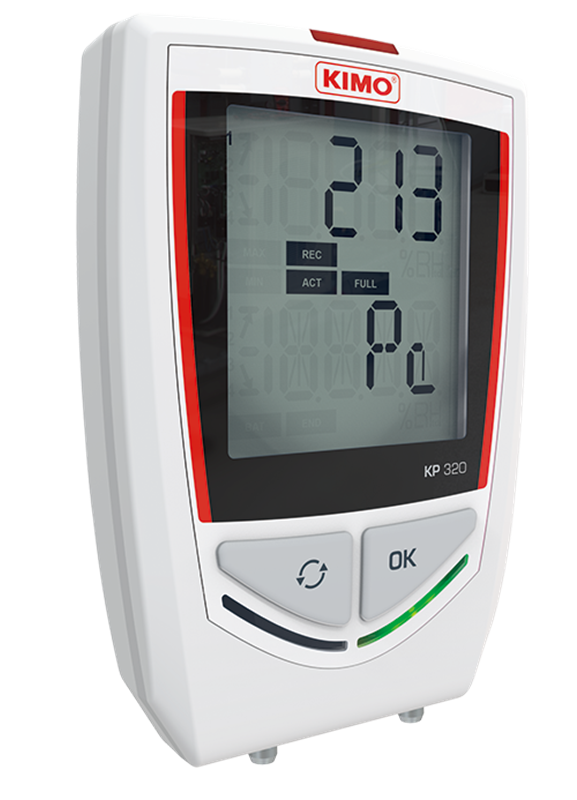

KP 320

Differential pressure

The highly accurate KP 320 Differential Pressure Data Logger with wireless connection is the ideal high performance data logger for critical room pressurization applications.
Data Loggers are widely used in agriculture, industry and clinical laboratories to monitor a variety of parameters.

Technical specification table Operation manual Operation Manual (Simplified Version)

Wireless connection for smartphones & tablets (Android and iOS)

Large storage capacity of 2 million points

Supplied with an anti-theft wall bracket & lock

Fast data downloading, 18,000 points/second

Large 2-line LCD screen

Free downloadable basic software

×

Product info

Accessories

APPSoftware

Compliance

MEASURE DETAILS

Frequency of measurements min
1 seconds
Frequency of measurements max
24 hours
Number of record points
2 000 000
Units
Pa
Alarm
2 configurable setpoint alarms

TECHNICAL DETAILS

Parameters
Differential pressure
Displays
2-line display
IP Protection
IP 65
Battery life
5 years
Standards
FCC part 15
UKCA
UL61010
2011/65/EU RoHS II
2012/19/EU WEEE
2014/30/EU EMC
2014/35/EU Low Voltage
Wireless connection
1
Power supply
2 lithium double AA 3.6 V batteries
Sensors
Internal sensors
Magnetise case
Yes
Securable mounting
Yes, wall bracket & lock included

INSTRUMENT DIMENSIONS

Length
4 11/32 inches
110.2 mm
Width
3 1/8 inches
79 mm
Height
1 3/8 inches
35.4 mm
Weight
206 g

OPERATING TEMPERATURE

Min
5.00 °C
32.00 °F
Max
50.00 °C
122.00 °F

STORAGE TEMPERATURE

Min
-20.00 °C
-4.00 °F
Max
50.00 °C
122.00 °F

KNT 320 data collector

KNT 320 data collector

Wall mount anti-theft device

Wall mount anti-theft device

Configuration software for Kistock data loggers

Configuration software for Kistock data loggers

KILOG

KILOG

Kistock mobile

Kistock mobile

RoHS Certificate Reach certificate CE certificate
