HOME Portable instruments Accessories Airflow cones

K35 - K75 - K120 - K150

Airflow cones

Inquiry

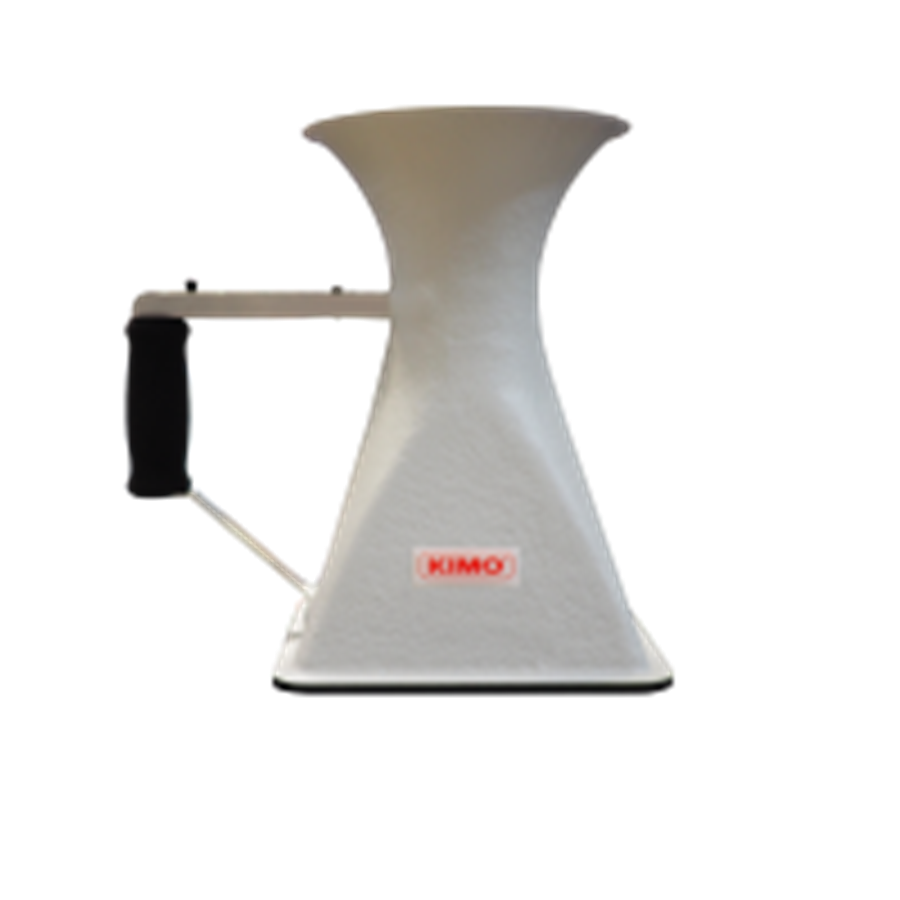

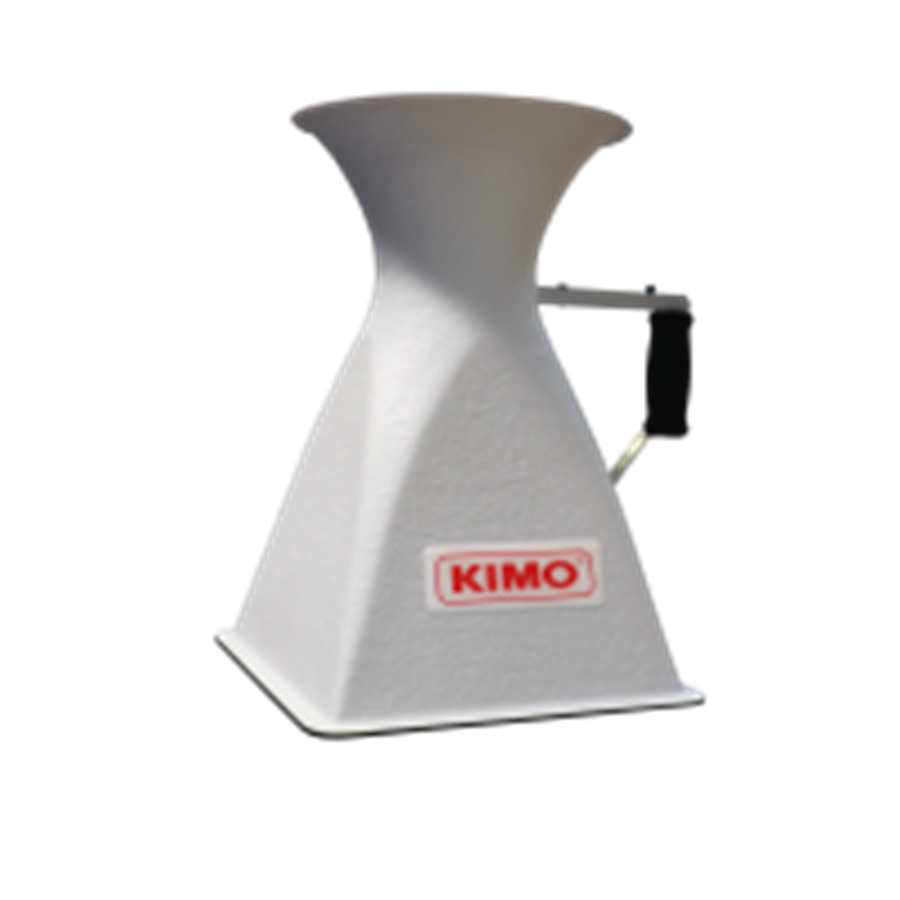

The K35, K75, K120 and K150 are airflow measurement cones designed for Ø 8 mm hot-wire anemometers.
These cones are especially suited to Kimo VT 110, VT 210, MP 210 and AMI 310 instruments.

Technical specification table Operation manual

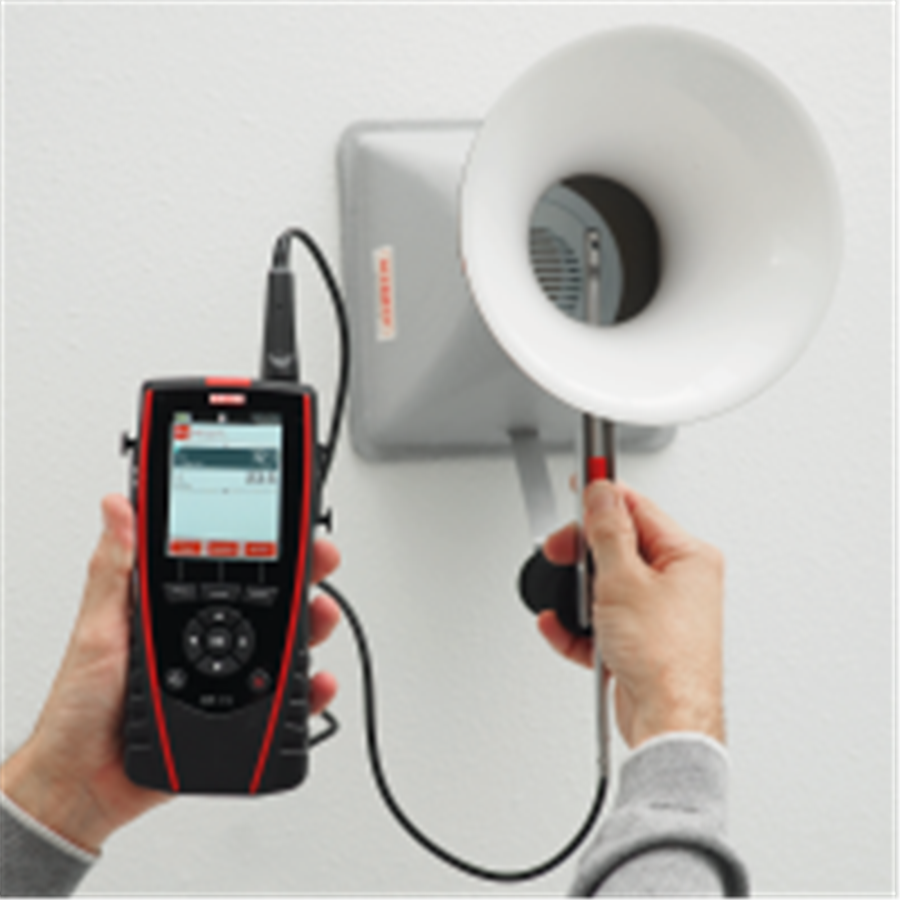

Supply and exhaust volume flow rate measurement

Suitable for the Ø 8 mm hotwire anemometers

Available in several dimensions

Supplied with a transport bag

Product info

Designation

K35 (10374)

K75 (10637)

K120 (11595)

Choose Language

The K35, K75, K120 and K150 are airflow measurement cones designed for Ø 8 mm hot-wire anemometers.
These cones are especially suited to Kimo VT 110, VT 210, MP 210 and AMI 310 instruments.

Designation

K35 (10374)

K75 (10637)

K120 (11595)

K150 (11926)

Flow

10 to 400 m3/h

30 to 750 m3/h

50 to 1200 m3/h

10 to 400 m3/h

Dimensions

200 x 200 mm

Height: 330 mm

300 x 300 mm

Height: 470 mm

450 x 450 mm

Height: 600 mm

550 x 100 mm

Height: 585 mm

The K35, K75, K120 and K150 are airflow measurement cones designed for Ø 8 mm hot-wire anemometers. These cones are especially suited to Kimo VT 110, VT 210, MP 210 and AMI 310 instruments.

Designation

K35 (10374)

K75 (10637)

K120 (11595)

K150 (11926)

Flow

10 to 400 m3/h

30 to 750 m3/h

50 to 1200 m3/h

10 to 400 m3/h

Dimensions

200 x 200 mm

Height: 330 mm

300 x 300 mm

Height: 470 mm

450 x 450 mm

Height: 600 mm

550 x 100 mm

Height: 585 mm

The K35, K75, K120 and K150 are airflow measurement cones designed for Ø 8 mm hot-wire anemometers.
These cones are especially suited to Kimo VT 110, VT 210, MP 210 and AMI 310 instruments.
