Wireless pressure probe
Wireless pressure probe
Wireless pressure probe
Wireless pressure probe
Si-RM1

Wireless pressure probe

Inquiry

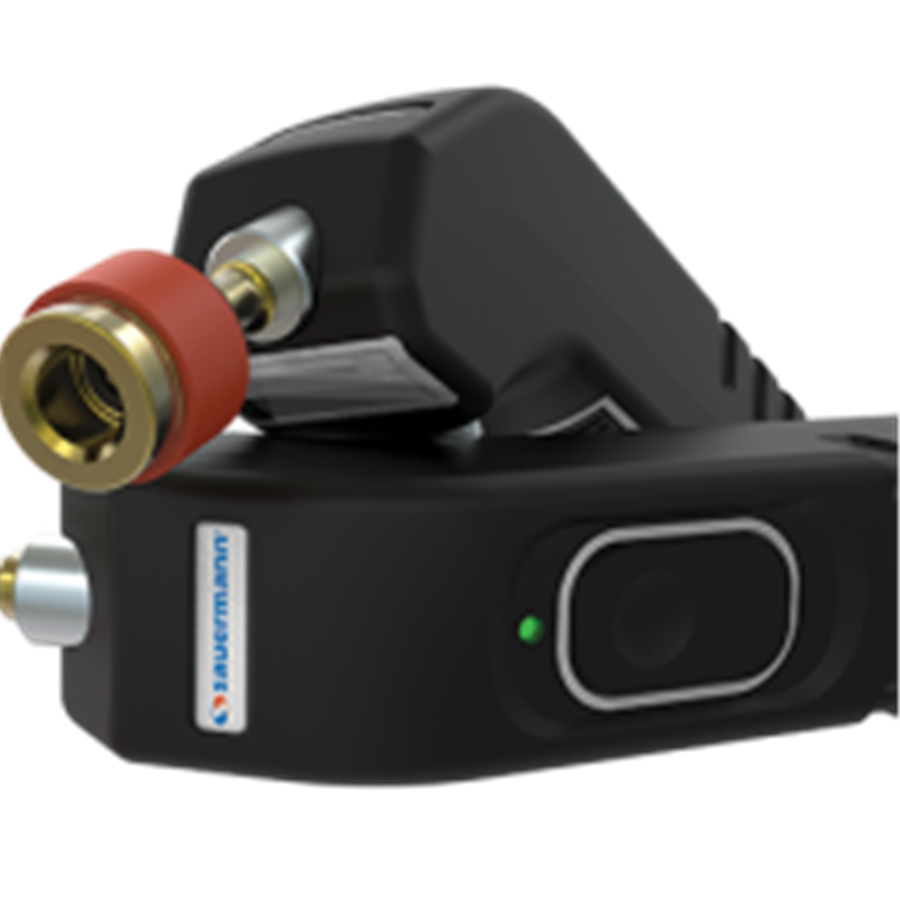

This Si-RM1 wireless pressure probe accurately measures high side and low side pressure.
It measures relative pressure range from -1 to 60 bar and -14 to 870 psi and comes with wireless connection low energy.

ABS-PC with elastomer overmoulding
¼'' FFL connector with depressor
¼'' MFL connector with Shrader® valve
Comes with conformity certificate
Long range wireless connection low energy
Comes with three AAA batteries


    ×

    Product info

    Accessories

    APPSoftware

    Compliance

    Technical documentation

    MEASURE DETAILS

    • Units
      bar, psi



    MEASURING RANGES

    • Pressure
      -1.00 bar ... 60.00 bar
    • Pressure
      -14.00 psi ... 870.00 psi

    TECHNICAL DETAILS

    • Parameters
      Pressure
    • Battery life
      250 hours
    • Standards
      UKCA
    • Wireless connection
      Yes
    • Connections

      To installation: female 1⁄4’’ FFL with Schrader® depressor

      To flexible: male 1⁄4’’ MFL with Schrader® valve

    • Refrigerant database
      126 refrigerant gases


    INSTRUMENT DIMENSIONS

    • Length
      Width
      Height
      Weight
    • 29/32 inches , 73.7 mm
      1 5/16 inches , 33.6 mm
      6 5/16 inches , 161 mm



    OPERATING TEMPERATURE

    • Min
      Max
    • -20.00 °C
      50.00 °C
    • -4.00 °F
      122.00 °F

    STORAGE TEMPERATURE

    • Min
      Max
    • -20.00 °C
      80.00 °C
    • -20.00 °F
      80.00 °F
