Pressostat
Pressostat
PST-12/13

Pressostat

Inquiry

-10 000 ~ +10 000 Pa

Technical specification table Operation Manual (Simplified Version)

•  PST-12 : -1000 ~ +1000 Pa

•  PST-13 : -10000 ~ +10000 Pa;

•  Visual and audible alarm, red led in front;

• RCR relay output 3A/240 Vac (NC), power supply 24 Vac/Vdc

• ABS V0 IP65 housing;

• “¼ turn” system mounting with wall-mount plate;

• Housing with simplified mounting system;


×

Product info

APPSoftware

Download

Compliance

Measure details

  • Units
    Pa, mbar, hPa, kPa, inWg, mmH₂O, mmHg, daPa
  • Alarm
    Red led in front and internal buzzer (70 dB at 10 cm)

Technical details

  • Parameters
    Differential pressure
  • Displays
    1-line display
  • IP Protection
    IP 65
  • Standards
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    24 Vac/Vdc ±10%
  • Relay
    1 RCR relay 3 A / 230 VAC
  • Ethernet communication
    No
  • ModBus network
    No


Instrument Dimensions

  • Length
    90 mm
  • Width
    46 mm
  • Height
    109 mm
  • Weight
    143 g



Operating temperature

  • Min
    0.00 °C
  • Max
    50.00 °C

Storage temperature

  • Min
    -10.00 °C
  • Max
    70.00 °C

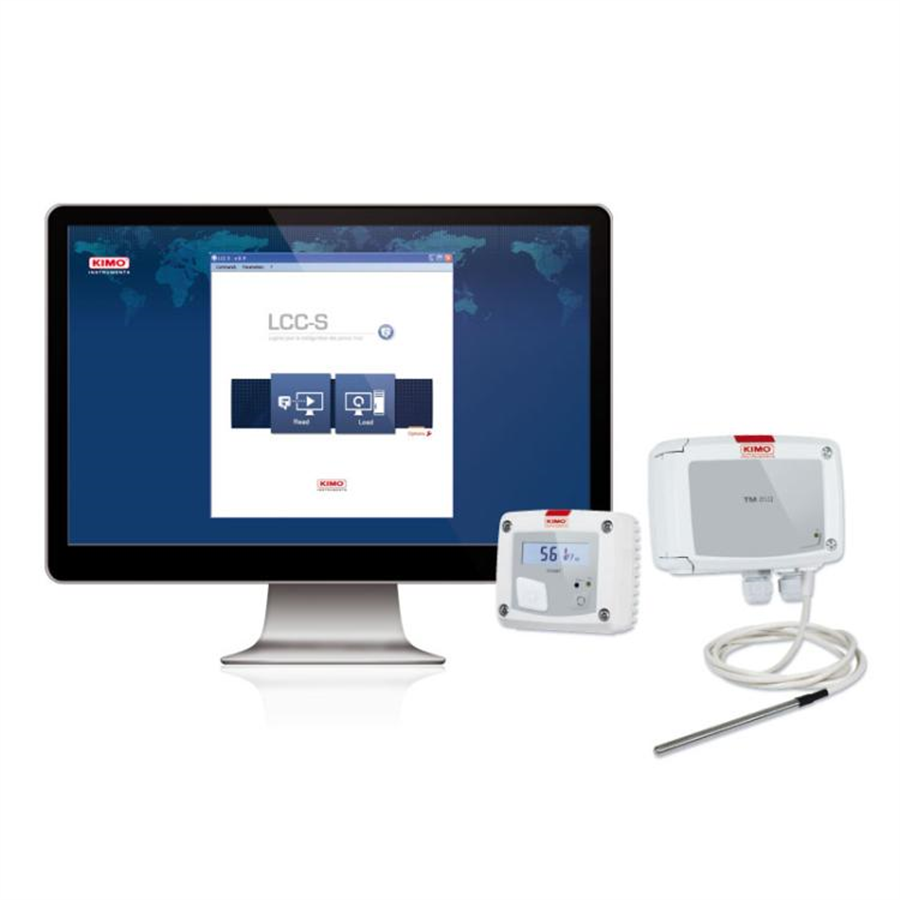

LCC-S

LCC-S
3D File
RoHS Certificate Reach certificate CE certificate
