CPE 110

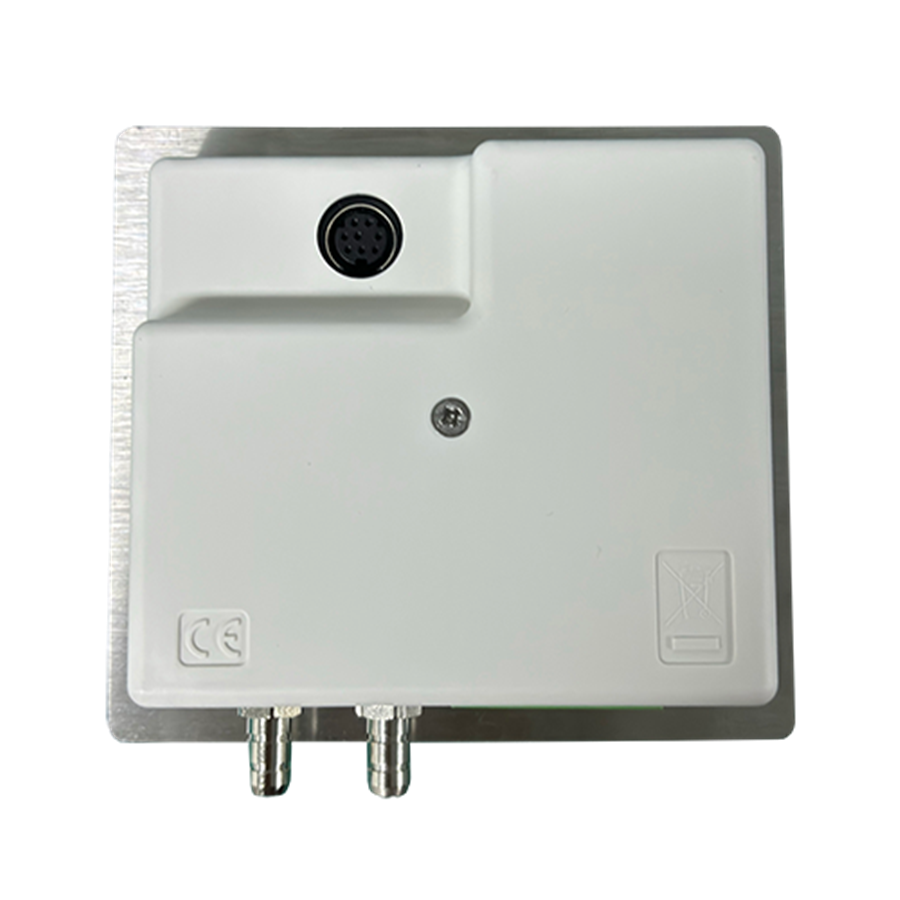

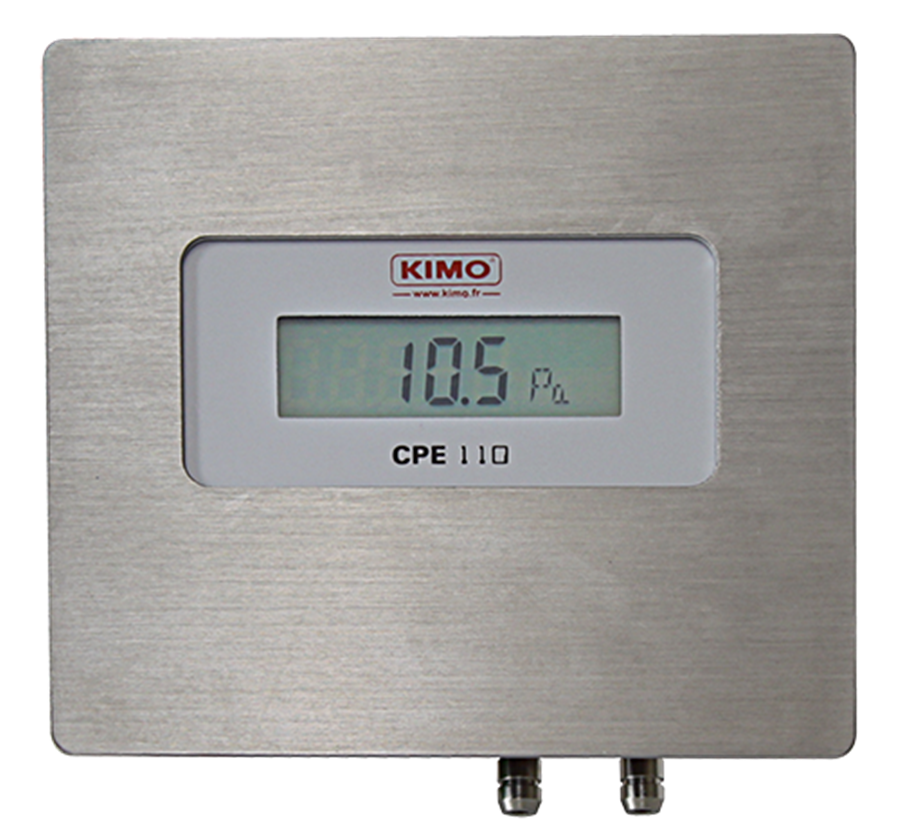

Embedded Micro Differential Pressure Transmitter

±10 ~ ±100 Pa

Technical specification table

• Measuring range: ±10 ~ ±100 Pa (0.1 Pa resolution)；

• Configurable range: 0~25Pa, 0~50Pa and 0~100 Pa;

• 4~20 mA output;

• 24 Vac/Vdc (3/4 wires) power supply;

• Front face made of 316L stainless steel, IP65 protection;

• On-line auto zero calibration function, no need to disconnect power supply;

• Design to use in cleanroom application and flush-mount installation;

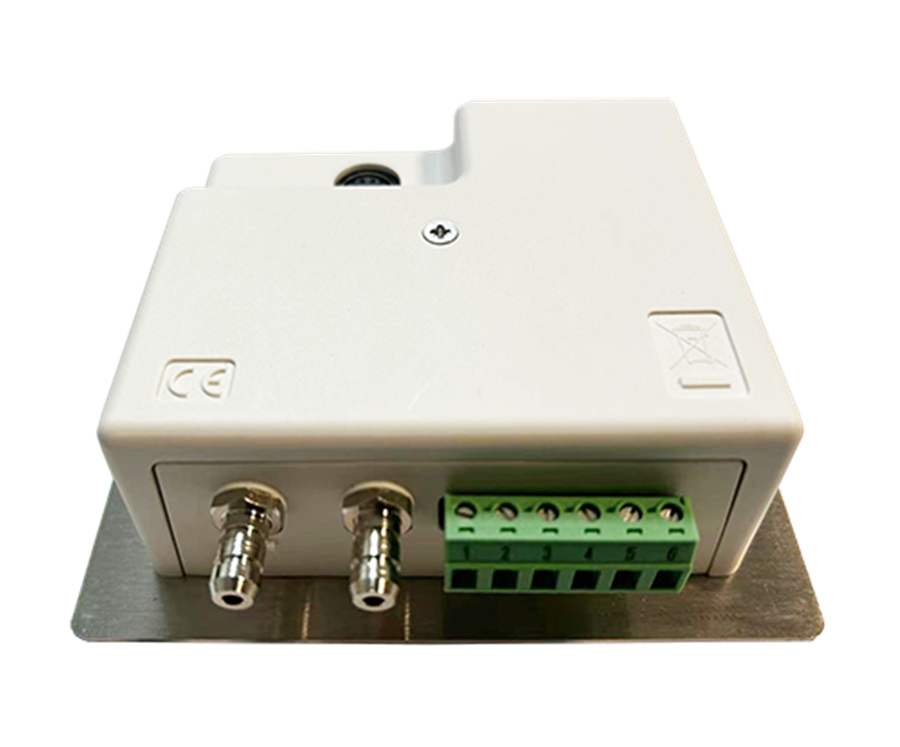

• Terminal block for wiring of power supply and signal output;

Product info

>Kit content

MEASURE DETAILS

Units

TECHNICAL DETAILS

Parameters

Differential pressure

Displays

1-line display

IP Protection

IP 65

Standards

UKCA

2011/65/EU RoHS II

2012/19/UE DEEE

2014/30 UE CEM

2014/35/UE Low Voltage

Power supply

Active：24 Vac/Vdc

Outputs

Active：24 Vac/Vdc

Ethernet communication

ModBus network

1 User Manual
