Air velocity and temperature sensor
Air velocity and temperature sensor
Air velocity and temperature sensor
Air velocity and temperature sensor
Air velocity and temperature sensor
Air velocity and temperature sensor
Air velocity and temperature sensor
Air velocity and temperature sensor

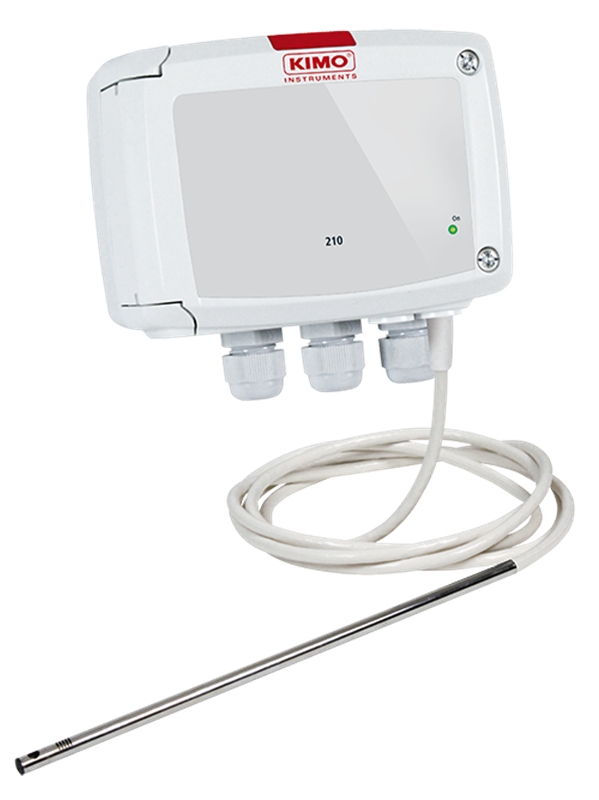

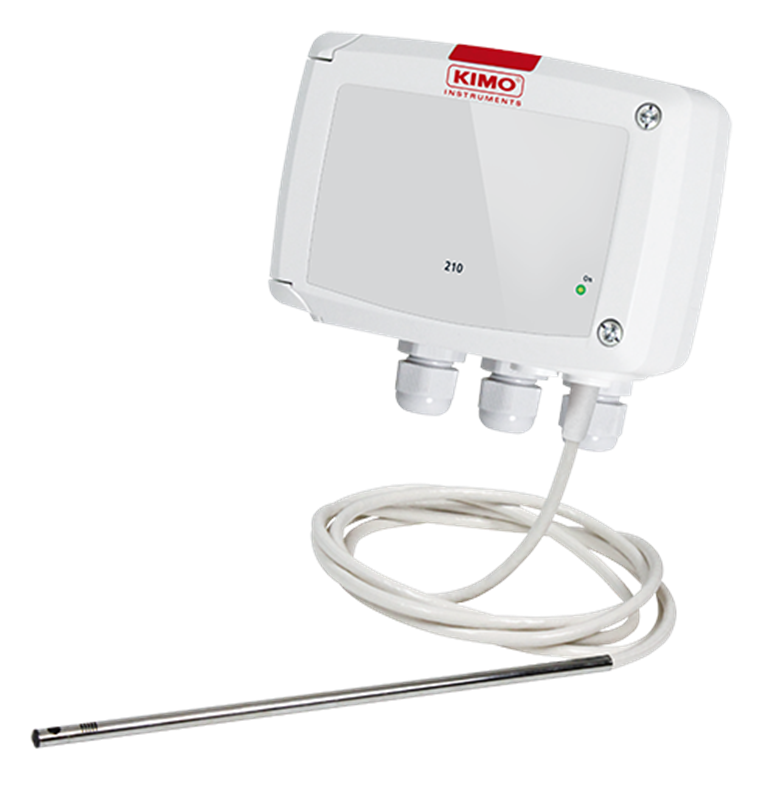

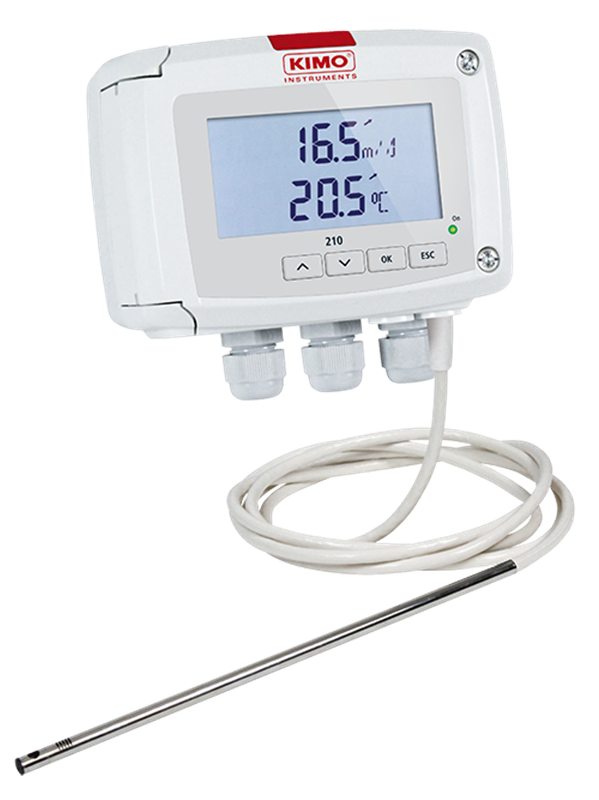

CTV 210

Air velocity and temperature sensor

Inquiry

0 ~ 30 m/s，0 ~ +50°C

Technical specification table Operation manual

• Configurable ranges: 0~1 m/s to 0~30 m/s;

• Temperature: 0 ~ 50 °C;

• Resolution:  0.01 m/s ( 0~3m/s), 0.1 m/s ( 3.1~30m/s);

• Function: air velocity, air flow, temperature;

• Two 4-wire analogue output 0-5/10 V or 0/4-20 mA;

• 2 relay outputs;

• Power supply 24 Vdc/Vac or 230 Vac;

• Display arrows for measurement trend;

• Air velocity comparison and calibration can be performed on site;

• ABS V0 IP65 housing, with or without display;

• “¼ turn” system mounting with wall-mount plate;


×

Product info

APPSoftware

Download

Compliance

Measure details

  • Units
    °F, °C, m/s, km/h, fpm

Technical details

  • Parameters
    Air velocity
    Temperature
  • Displays
    No
    2-line display
  • IP Protection
    IP 65
  • Standards
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    24 Vac/Vdc or 100-240 Vac
  • Outputs
    2 x 4-20 mA or 2 x 0-20 mA or 2 x 0-5 V or 2 x 0-10 V (4 wires)
  • Relay
    2 changeover relays 3 A / 230 V
  • Ethernet communication
    No
  • ModBus network
    No


Instrument Dimensions

  • Length
    125 mm
  • Width
    59.2 mm
  • Height
    115 mm
  • Weight
    340 g



Operating temperature

  • Min
    -10.00 °C
  • Max
    50.00 °C

Storage temperature

  • Min
    -10.00 °C
  • Max
    70.00 °C



LCC-S

LCC-S
3D File
RoHS Certificate Reach certificate CE certificate
