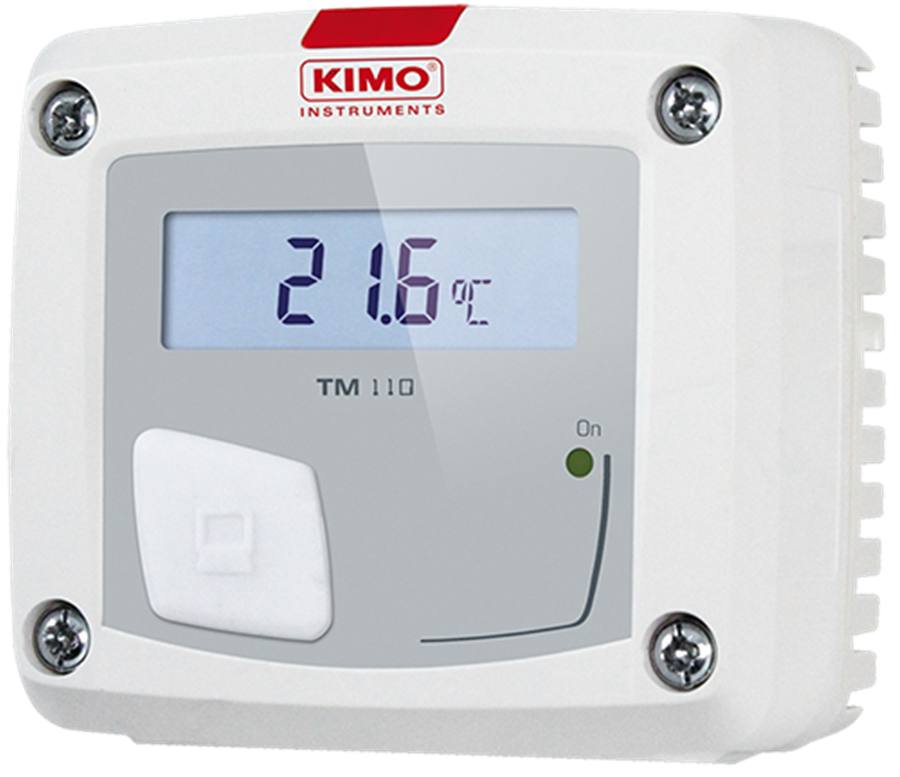

TM 110 Temperature transmitter / sensor

Inquiry

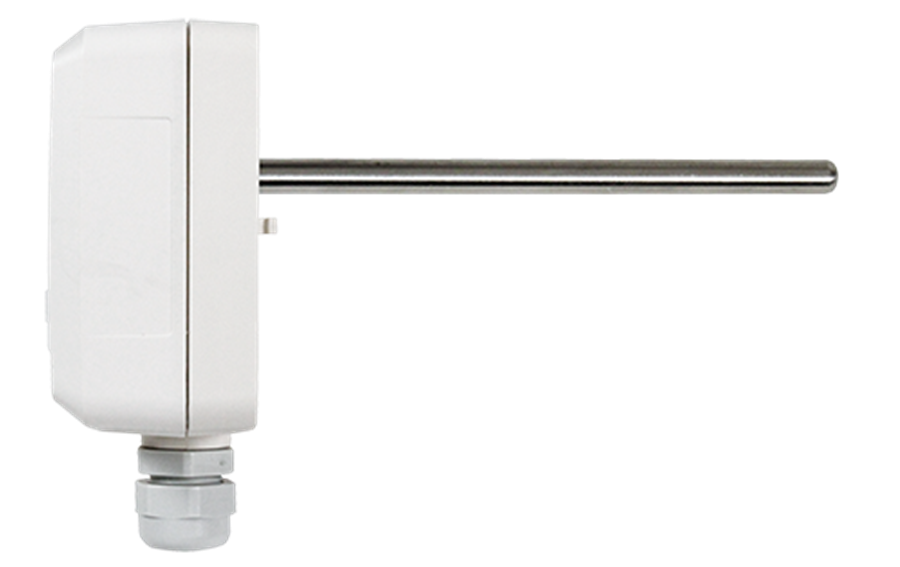

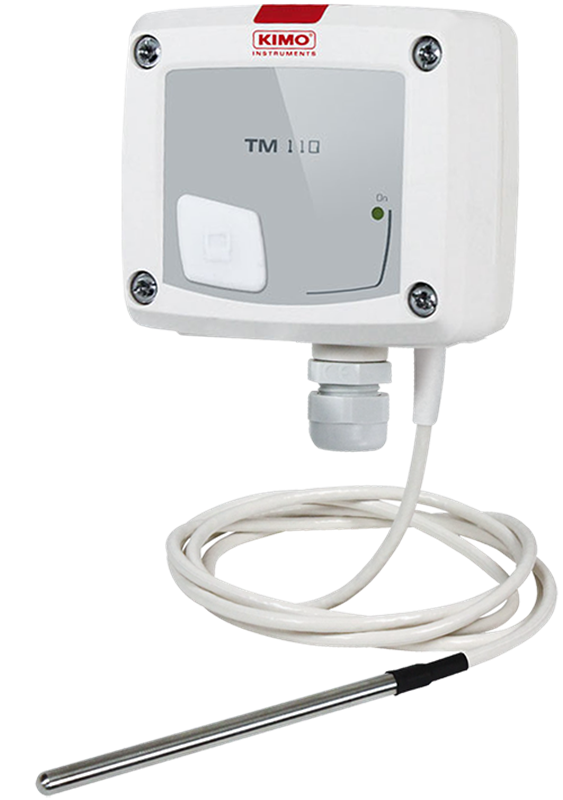

Kimo’s TM 110 has a temperature range from 0 to 50°C (ambient and airtight ambient models), from -20 to +80°C (duct model) and from -100 to 400°C (model with Pt100 terminal block).

Technical specification table Operation Manual (Simplified Version)

Measuring range from 0 to 50°C (ambient and airtight ambiant models), from -20 to +80°C (duct model) and from -100 to 400°C (model with Pt100 terminal block)

0-10 V output or 4-20 mA output

With or without 10-digits LCD display

Housing with simplified mounting system

Software or DIP switch configuration

Quick and easy mounting with the 1/4 turn system with wall-mount plate

Product info

APPSoftware

Download

Compliance

MEASURE DETAILS

Units
°F, °C

TECHNICAL DETAILS

Parameters
Temperature
Displays
No
1-line display
Standards
UKCA
2011/65/EU RoHS II
2012/19/EU WEEE
2014/30/EU EMC
2014/35/EU Low Voltage
Power supply
24 Vac/Vdc (Active) or 16/30 Vdc (Passive)
Outputs
0-10 V (Active) or 4-20 mA (Passive)
Ethernet communication
No
ModBus network
No

INSTRUMENT DIMENSIONS

Length
90 mm
Width
46 mm
Height
109 mm
Weight
162 g

OPERATING TEMPERATURE

Min
0.00 °C
Max
50.00 °C

STORAGE TEMPERATURE

Min
-10.00 °C
Max
60.00 °C
