Si-RD3 Refrigerant leak detector
Si-RD3 Refrigerant leak detector
Si-RD3 Refrigerant leak detector
Si-RD3 Refrigerant leak detector
Si-RD3 Refrigerant leak detector
Si-RD3 Refrigerant leak detector
Si-RD3 Refrigerant leak detector
Si-RD3 Refrigerant leak detector

Si-RD3 Refrigerant leak detector

Inquiry

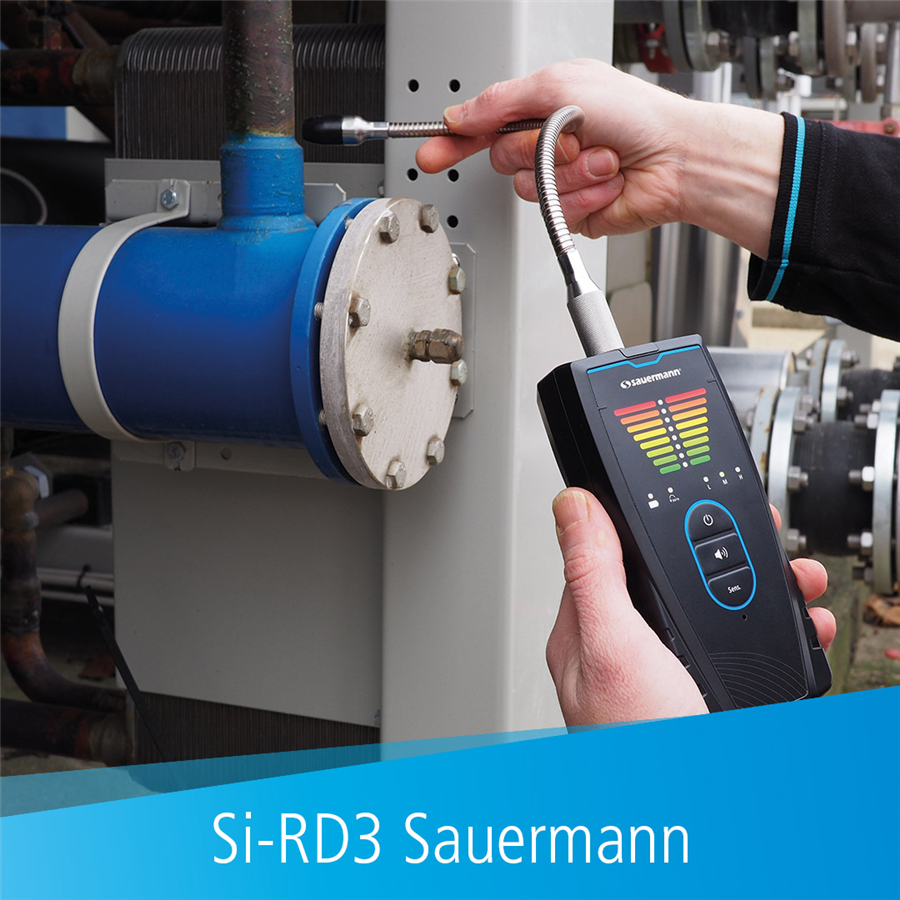

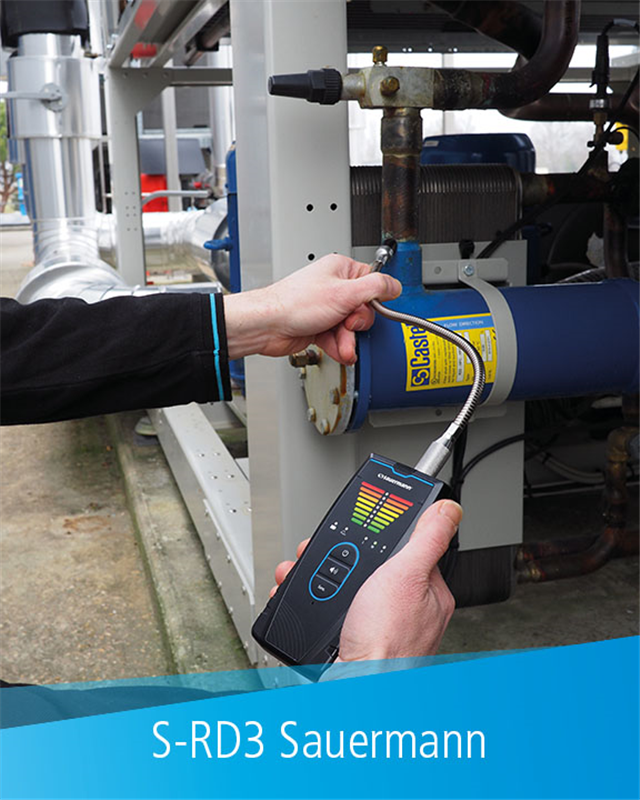

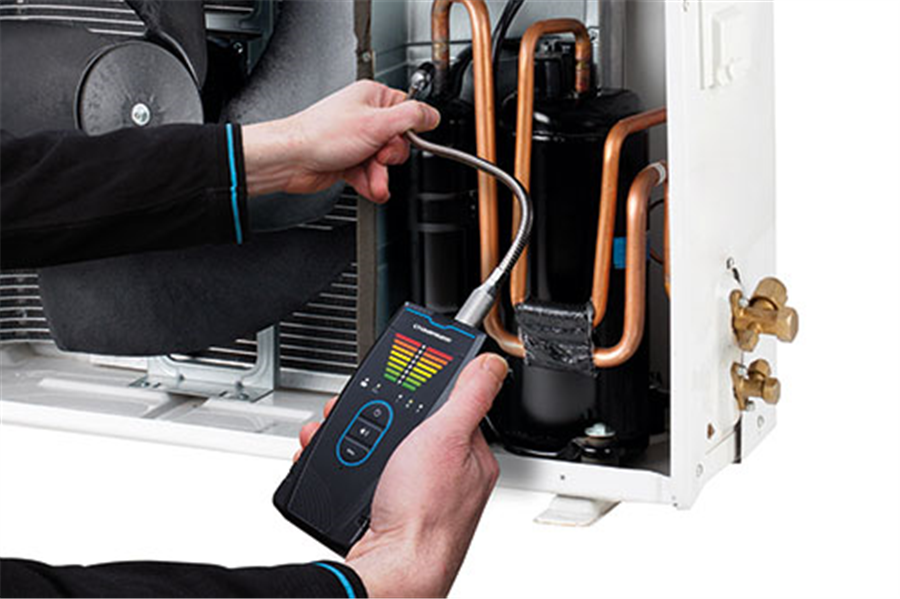

The Si-RD3 refrigerant leak detector uncovers leaks of most common refrigerant gases to a high degree of sensitivity, including all HCFC and HFC refrigerants, R1234yf, R1234ze, R290, R600a, and 5% hydrogen–95% nitrogen mixtures (Nidron 5 and Trace-A-Gas). 

Technical specification table Operation manual Operation Manual (Simplified Version)
Detects most common refrigerants and mixtures
Visible and audible alarms
Highly sensitive: 0 – 3 g/year
30 cm flexible probe


×

Product info

>Kit content

Accessories

Download

Compliance

MEASURE DETAILS

  • Units
    g/year

TECHNICAL DETAILS

  • Parameters
    Gas detection
  • IP Protection
    IP 54
  • Battery life
    12 hours
  • Standards
    2015/863 EU (RoHS 3)
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    4 piles AAA LR03 1.5 V
  • Protective cover
    No
  • Interchangeable module
    No


INSTRUMENT DIMENSIONS

  • Length
    71.5 mm
  • Width
    34.2 mm
  • Height
    147.9 mm
  • Weight
    295 g



OPERATING TEMPERATURE

  • Min
    0.00 °C
  • Max
    50.00 °C

STORAGE TEMPERATURE

  • Min
    -20.00 °C
  • Max
    80.00 °C



1 Verification certificate
1 Transport case
1 Quick Start Guide
1 Filter


Protective cover CQ 15

Protective cover CQ 15
Distribution Brochure
RoHS Certificate Reach certificate CE certificate
