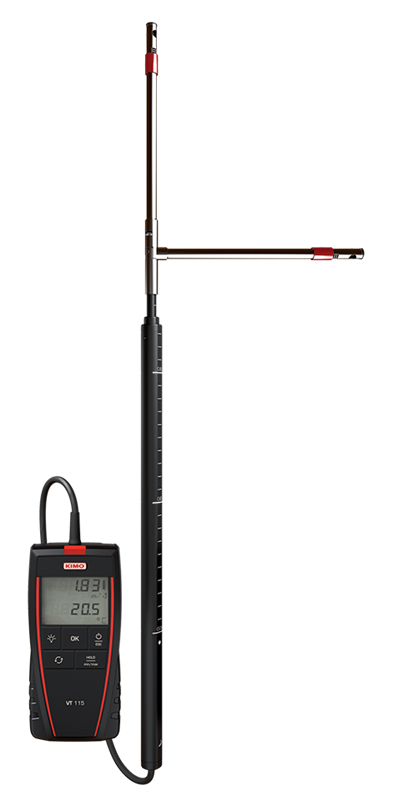

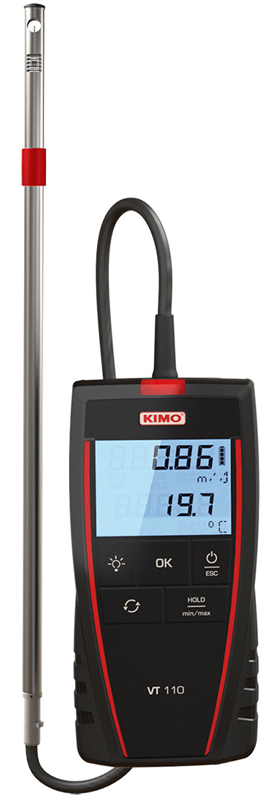

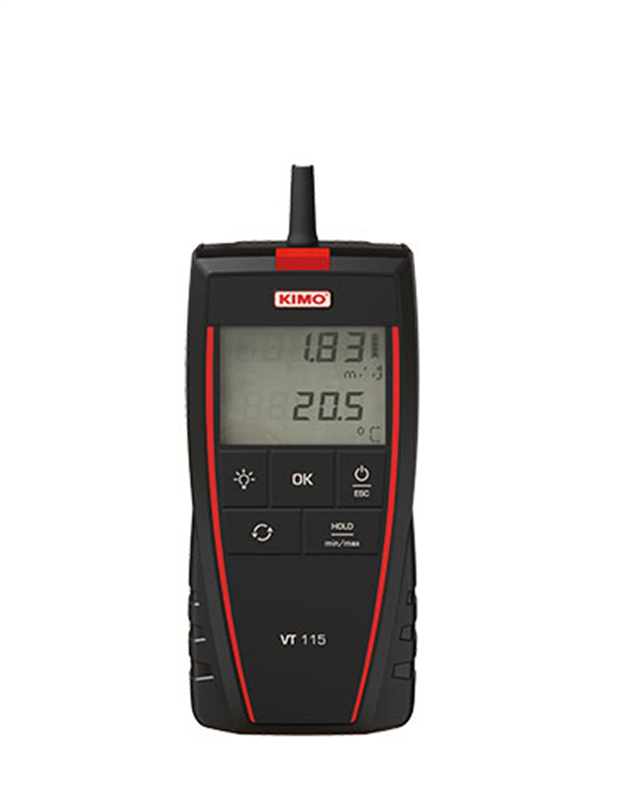

VT 110 / VT 115

Hotwire thermo-anemometer

Inquiry

Kimo’s VT 110 / 115 is perfect for measuring airflow, air velocity and temperature with its hot wire probe.

Technical specification table Operation manual Operation Manual (Simplified Version)
Measuring range: air velocity: 0.15 to 30 m/s, temperature: 0 to +50°C, and airflow: 0 to 99,999 m3/h
Easy to use and adjustable backlight
Automatic average
Hold function and min-max values
Selection of units
Airflow calculation


×

Product info

Accessories

Compliance

MEASURE DETAILS

  • Units
    °F, °C, m³/s, m/s, l/s, m³/h, km/h, fpm, cfm



MEASURING RANGES

  • Velocity
    0.15 m/s ... 30.00 m/s
  • Velocity
    30.00 fpm ... 5900.00 fpm
  • Airflow
    0.00 m³/h ... 99999.00 m³/h
  • Airflow
    0.00 cfm ... 99999.00 cfm
  • Temperature
    -20.00 °C ... 80.00 °C
  • Temperature
    -4.00 °F ... 176.00 °F

TECHNICAL DETAILS

  • Parameters
    Air velocity
    Airflow
    Temperature
  • Displays
    4-line display
  • IP Protection
    IP 54
  • Battery life
    50 hours
  • Standards
    FCC part 15
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    4 batteries AAA LR03 1.5 V
  • Anemometer type
    Hotwire
  • Probe type
    Wire probe
  • Protective cover
    No
  • Interchangeable module
    No


INSTRUMENT DIMENSIONS

  • Length
    3 inches
    76.7 mm
  • Width
    1 11/32 inches
    34.2 mm
  • Height
    5 25/32 inches
    147.9 mm
  • Weight
    9/16 pounds
    250 g



OPERATING TEMPERATURE

  • Min
    0.00 °C
    32.00 °F
  • Max
    50.00 °C
    122.00 °F

STORAGE TEMPERATURE

  • Min
    -20.00 °C
    -4.00 °F
  • Max
    80.00 °C
    176.00 °F



Transport case MT 51

Transport case MT 51
Protective cover CQ 15

Protective cover CQ 15
Telescopic extension RTE

Telescopic extension RTE
Airflow cones

Airflow cones
RoHS Certificate Reach certificate CE certificate
