Si-VH3

Hotwire Thermo-anemometer With integrated hotwire probe

Inquiry

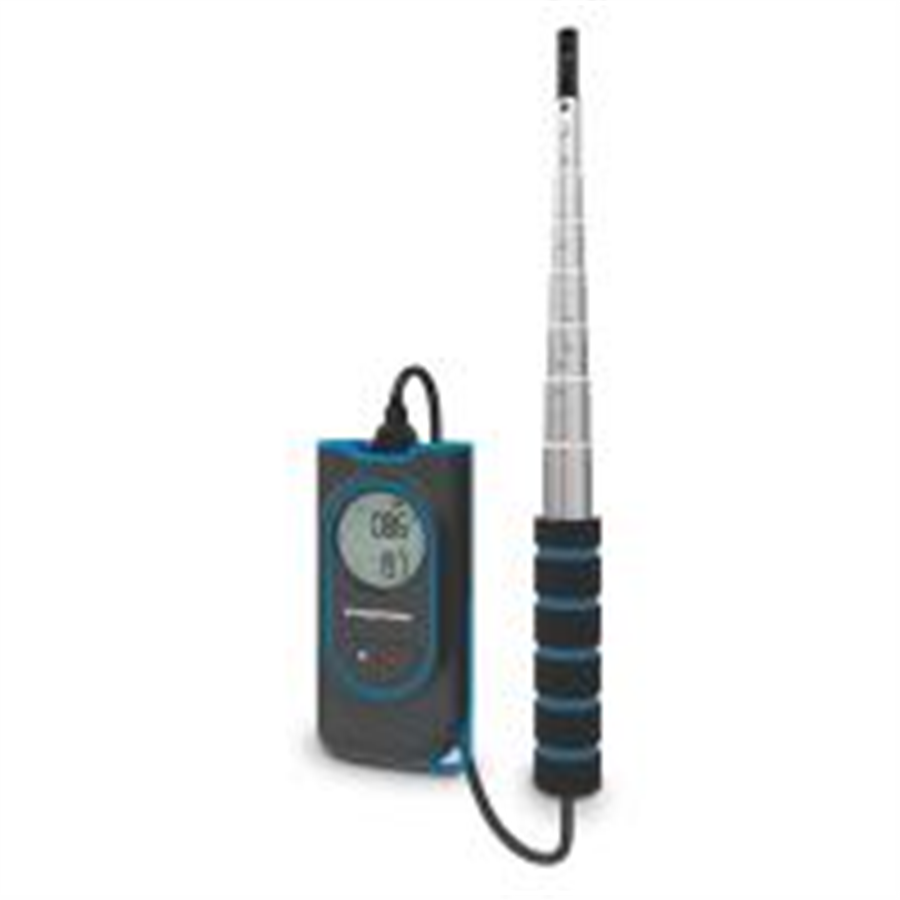

The palm-sized Sauermann Si-VH3 hotwire thermo-anemometer easily measures airflow, air velocity & temperature with its hotwire probe with telescopic rod.

Technical specification table Operation manual Operation Manual (Simplified Version)
80 cm (31,5”) telescopic rod with double graduation
Low consumption device
Backlit LCD screen
Magnetic backing for easy fixing + Carrying bag


×

Product info

>Kit content

APPSoftware

Video

Download

Compliance

MEASURE DETAILS

  • Units
    °F, °C, m³/s, mph, m/s, m³/min, m³/h, km/h, fpm, cfm



MEASURING RANGES

  • Air velocity
    0.00 m/s ... 30.00 m/s
  • Airflow
    0.00 m³/h ... 9999.00 m³/h
  • Temperature
    -10.00 °C ... 60.00 °C

TECHNICAL DETAILS

  • Parameters
    Air velocity
    Airflow
    Temperature
  • Displays
    2-line display
  • IP Protection
    IP 54
  • Battery life
    20 hours
  • Standards
    RoHS II 2011/65/EU (EU)2015/863
    UKCA
    2012/19/EU WEEE
    2014/53/EU RED
  • Power supply
    3 alkaline batteries LR03 AAA 1.5V
  • Anemometer type
    Hotwire
  • Probe type
    Wire probe
  • Protective cover
    No
  • Interchangeable module
    No


INSTRUMENT DIMENSIONS

  • Length
    2 3/4 inches
    70 mm
  • Width
    1 5/16 inches
    33 mm
  • Height
    5 15/16 inches
    151 mm
  • Weight
    16 pounds
    454 g



OPERATING TEMPERATURE

  • Min
    0.00 °C
  • Max
    50.00 °C

STORAGE TEMPERATURE

  • Min
    -20.00 °C
  • Max
    70.00 °C



1 Certificate of conformity
1 Quick Start Guide
3 alkaline batteries LR03 AAA 1.5 V
1 Carrying bag


Si-HVACR Measurement Mobile App

Si-HVACR Measurement Mobile App

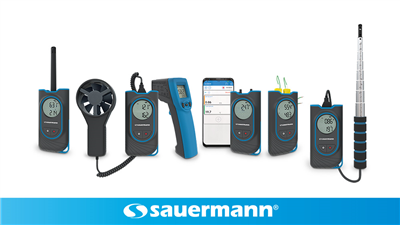

HVACR measuring instruments range Distribution Brochure
RoHS Certificate CE certificate
