MP 120L

Manometer

Inquiry

A Micromanometer allows you to easily make HVAC pressure measurements.

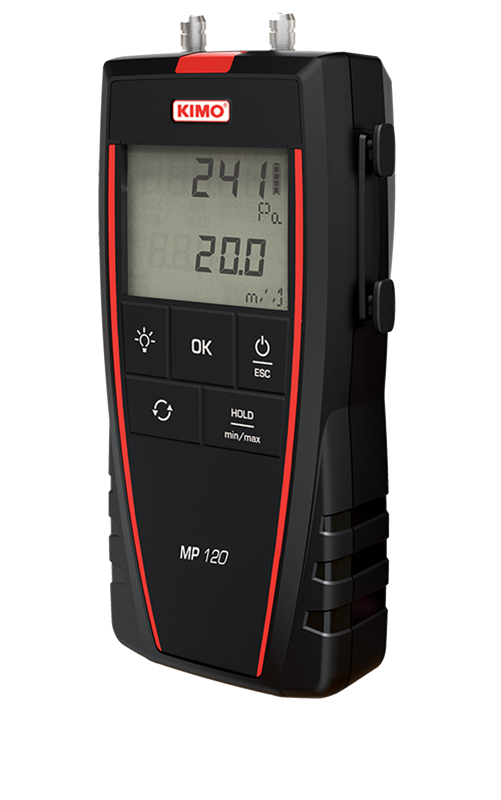

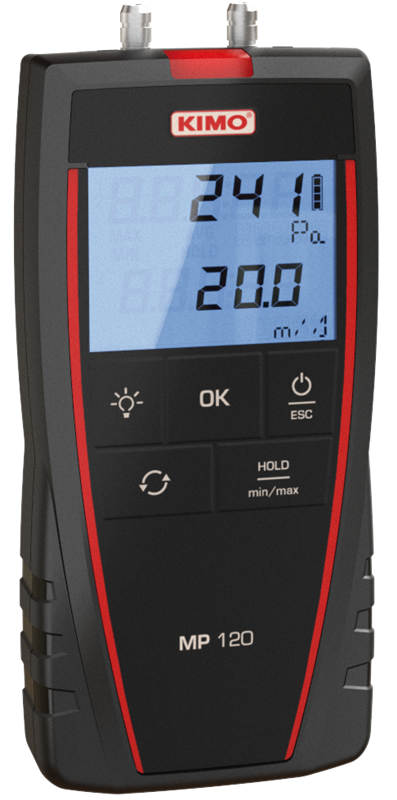

The Kimo MP 120 is a portable, handheld meter suitable for measuring pressure and air velocity.

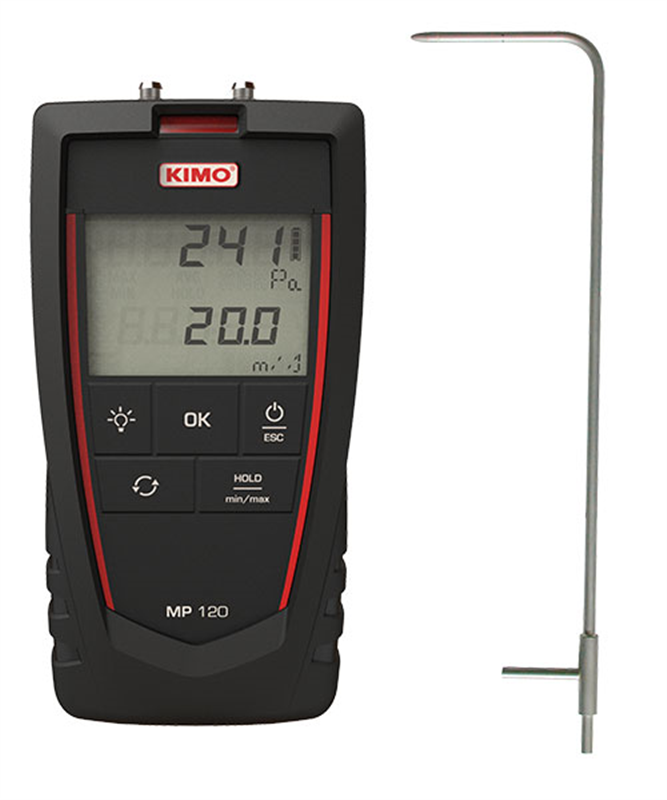

Pitot tube not included, sold separately.

Technical specification table Operation manual Operation Manual (Simplified Version)
Measuring range: pressure: -1,000 to +1,000 Pa and air velocity: 0 to 40 m/s
Easy to use
Adjustable backlight, manual autozero
Hold function and min-max values


×

Product info

Accessories

Compliance

MEASURE DETAILS

  • Units
    Pa, m/s, km/h, fpm, inWg, mmH₂O, daPa



MEASURING RANGES

  • Differentielle pressure
    -4.01 inWg ... 4.01 inWg
  • Differentielle pressure
    -1000.00 Pa ... 1000.00 Pa
  • Velocity
    0.00 fpm ... 7874.00 fpm
  • Velocity
    0.00 m/s ... 40.00 m/s

TECHNICAL DETAILS

  • Parameters
    Air velocity
    Differential pressure
  • Displays
    4-line display
  • IP Protection
    IP 54
  • Battery life
    180 hours
  • Standards
    FCC part 15
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    4 batteries AAA LR03 1.5 V
  • Protective cover
    No
  • Interchangeable module
    No


INSTRUMENT DIMENSIONS

  • Length
    2 25/32 inches
    71.5 mm
  • Width
    1 11/32 inches
    34.2 mm
  • Height
    5 25/32 inches
    147.9 mm
  • Weight
    1/2 pounds
    220 g



OPERATING TEMPERATURE

  • Min
    0.00 °C
    32.00 °F
  • Max
    50.00 °C
    122.00 °F

STORAGE TEMPERATURE

  • Min
    -20.00 °C
    -4.00 °F
  • Max
    80.00 °C
    176.00 °F



Transport case MT 51

Transport case MT 51
Protective cover CQ 15

Protective cover CQ 15
RoHS Certificate Reach certificate CE certificate
