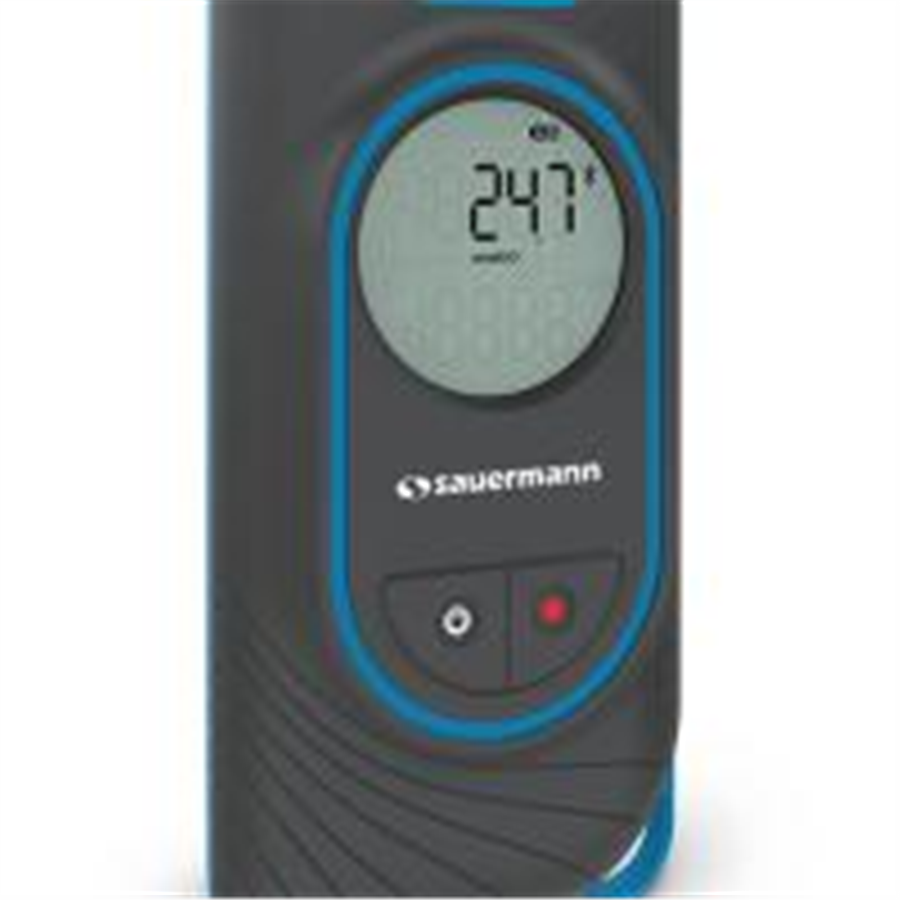

The palm-sized Sauermann Si-PM3 digital differential pressure manometer easily measures pressure.

Technical specification table Operation manual Operation Manual (Simplified Version)
Measuring range: -150 to +150 hPa (-60 to 60 inH2O)
Air velocity and airflow with Pitot tube (optional)
Backlit LCD screen
Magnetic backing for easy fixing & carrying bag


×

Product info

>Kit content

APPSoftware

Video

Download

Compliance

MEASURE DETAILS

  • Units
    inH₂O, Pa, mbar, hPa, mmH₂O, psi



MEASURING RANGES

  • Pressure
    -150.00 hPa ... 150.00 hPa
  • Airflow
    0.00 m³/h ... 9999.00 m³/h
  • Air velocity
    2.00 m/s ... 80.00 m/s

TECHNICAL DETAILS

  • Parameters
    Air velocity
    Airflow
    Differential pressure
  • Displays
    2-line display
  • IP Protection
    IP 40
  • Battery life
    170 hours
  • Standards
    RoHS II 2011/65/EU (EU)2015/863
    UKCA
    2012/19/EU WEEE
    2014/53/EU RED
  • Wireless connection
    1
  • Power supply
    3 alkaline batteries LR03 AAA 1.5 V
  • Protective cover
    No
  • Interchangeable module
    No


INSTRUMENT DIMENSIONS

  • Length
    2 3/4 inches
    70 mm
  • Width
    1 5/16 inches
    33 mm
  • Height
    5 9/16 inches
    141 mm
  • Weight
    7 pounds
    200 g



OPERATING TEMPERATURE

  • Min
    0.00 °C
  • Max
    50.00 °C

STORAGE TEMPERATURE

  • Min
    -20.00 °C
  • Max
    70.00 °C



2 clear tubes Ø4x6 mm, 1 m (39.37’’) length
1 Certificate of conformity
1 Quick Start Guide
3 alkaline batteries LR03 AAA 1.5 V
1 Carrying bag


Si-HVACR Measurement Mobile App

Si-HVACR Measurement Mobile App
HVACR measuring instruments range
RoHS Certificate CE certificate
