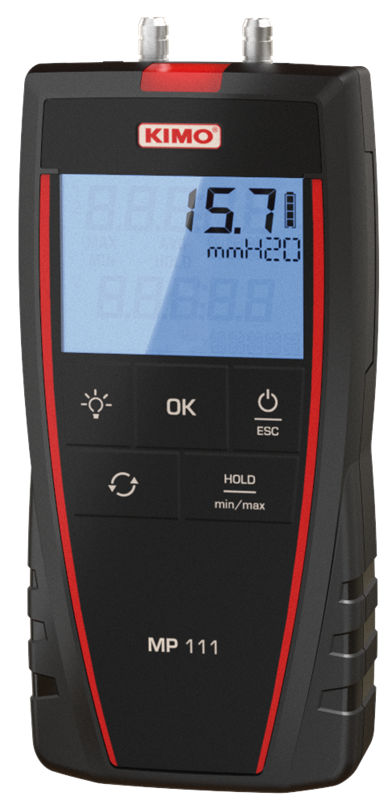

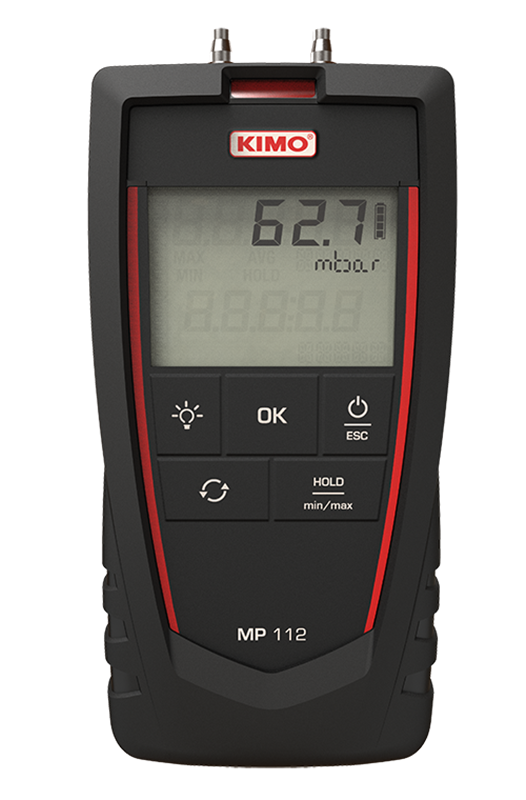

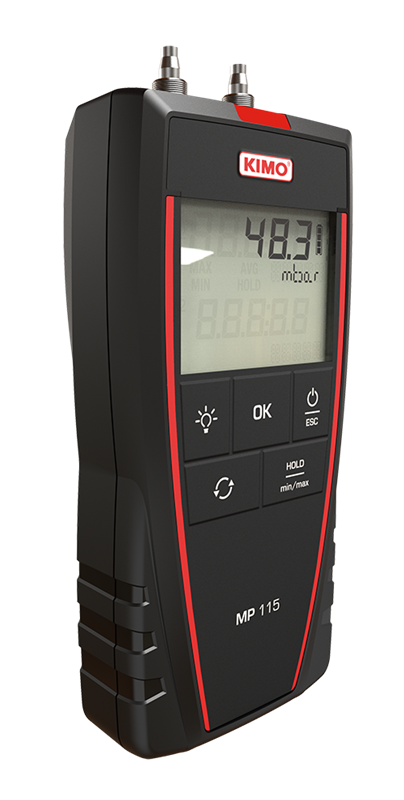

MP 110 / 111 / 112 / 115

Manometer

Inquiry

Kimo offers a wide range of cleanroom products including the MP 110 / 111 / 112 / 115 Portable Differential Pressure Meter.

Technical specification table Operation manual Operation Manual (Simplified Version)
Easy to use
Adjustable backlight
Hold function and min-max values, selection of units
Manual autozero


×

Product info

Accessories

Compliance

MEASURE DETAILS

  • Units
    Pa, kPa, bar, mbar, inWg, mmH₂O, mmHg, daPa, psi



MEASURING RANGES

  • MP 110
    -1000.00 Pa ... 1000.00 Pa
  • MP 110
    -4.01 inWg ... 4.01 inWg
  • MP 111
    -1000.00 mmH₂O ... 1000.00 mmH₂O
  • MP 111
    -39.37 inWg ... 39.37 inWg
  • MP 112
    -2000.00 mbar ... 2000.00 mbar
  • MP 112
    -29.00 PSI ... 29.00 PSI
  • MP 115
    -500.00 mbar ... 500.00 mbar
  • MP 115
    -7.25 PSI ... 7.25 PSI

TECHNICAL DETAILS

  • Parameters
    Differential pressure
  • Displays
    4-line display
  • IP Protection
    IP 54
  • Battery life
    180 hours
  • Standards
    FCC part 15
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    4 batteries AAA LR03 1.5 V
  • Probe type
    Built-in probe
  • Protective cover
    No
  • Interchangeable module
    No


INSTRUMENT DIMENSIONS

  • Length
    2 25/32 inches
    71.5 mm
  • Width
    1 11/32 inches
    34.2 mm
  • Height
    5 25/32 inches
    147.9 mm
  • Weight
    1/2 pounds
    220 g



OPERATING TEMPERATURE

  • Min
    0.00 °C
    32.00 °F
  • Max
    50.00 °C
    122.00 °F

STORAGE TEMPERATURE

  • Min
    -20.00 °C
    -4.00 °F
  • Max
    80.00 °C
    176.00 °F



Transport case MT 51

Transport case MT 51
Protective cover CQ 15

Protective cover CQ 15
