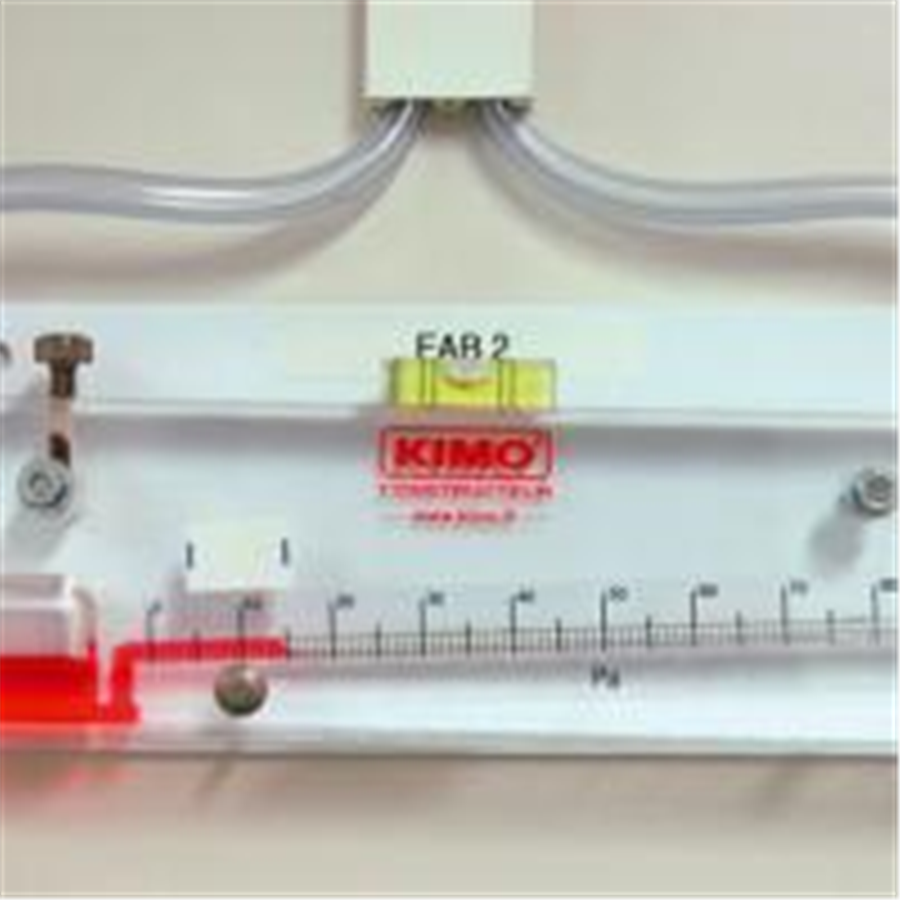

Inclined Liquid Column Manometers
Inclined Liquid Column Manometers
Inclined Liquid Column Manometers
Inclined Liquid Column Manometers
HP Series

Inclined Liquid Column Manometers

Inquiry

Kimo's HP range of inclined liquid column manometers are recommended for measuring overpressures in clean rooms, operating blocks, laboratories, aseptic rooms, laminar flows etc.

Technical specification table Operation Manual (Simplified Version)
High measurement sensitivity
Very low pressure ranges
Zero adjustment by moving the slide strip
Integrated spirit level for adjusting horizontality


×

Product info

>Kit content

Accessories

Compliance

HP 5

  • Differential pressure
    0-5 mmCE
  • Differential pressure
    0-50 Pa

HP 10

  • Differential pressure
    0-10 mmCE
  • Differential pressure
    0-100 Pa

HP 15

  • Differential pressure
    0-15 mmCE
  • Differential pressure
    0-150 Pa

TECHNICAL DETAILS

  • Parameters
    Differential pressure
  • Manometer type
    Inclined liquid column manometer
  • Manometric liquid
    AWS 10 red oil, density 0.87 at 15°C
  • Maximum static pressure
    6 bars
  • Reservoir capacity
    20 ml
  • Wall-mounted
    With or without white PVC support


OPERATING TEMPERATURE

  • Min
    -30.00 °C
  • Max
    60.00 °C



1 white PVC support
2 screws
2 rawlplugs
2 x 487 connectors
1 bottle of AWS.10 liquid


Accessories for liquid column manometers

Accessories for liquid column manometers
Reach certificate
