Vertical Liquid Column Manometers
Vertical Liquid Column Manometers
Vertical Liquid Column Manometers
Vertical Liquid Column Manometers
TJ Series

Vertical Liquid Column Manometers

Inquiry

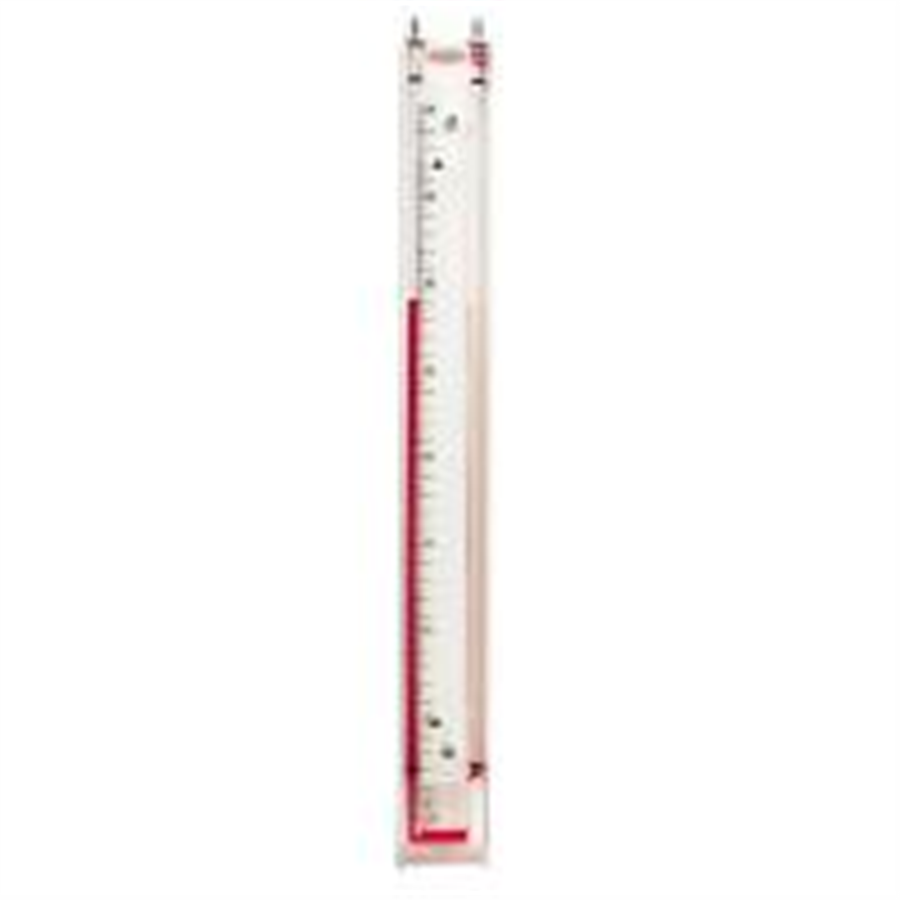

Kimo's TJ range of vertical liquid column manometers are used for measuring variations of pressure, depression or differential pressure of air or gas within a measurement range. These may vary depending on the type of manometric liquid used: AWS.10 or VOLT.1S.

Technical specification table Operation Manual (Simplified Version)
"J"- shaped column for direct measuring
Zero adjustment by moving the slide strip
For fixed use regardless of the manometric liquid used
For portable use with the TJ model using VOLT.1S liquid


×

Product info

>Kit content

Accessories

Compliance

TECHNICAL DETAILS

  • Parameters
    Differential pressure
  • Manometer type
    Vertical liquid column manometer
  • Manometric liquid
    AWS 10 liquid, density 0.86 or VOLT 1S liquid, density 1.86
  • Maximum static pressure
    6 bars
  • Reservoir capacity
    20 ml
  • Wall-mounted
    With or without white PVC support


OPERATING TEMPERATURE

  • Min
    -20.00 °C
  • Max
    30.00 °C


1 white PVC support
2 screws
2 rawlplugs
2 x 487 connectors
1 bottle of manometric liquid


Accessories for liquid column manometers

Accessories for liquid column manometers
Reach certificate CE certificate
