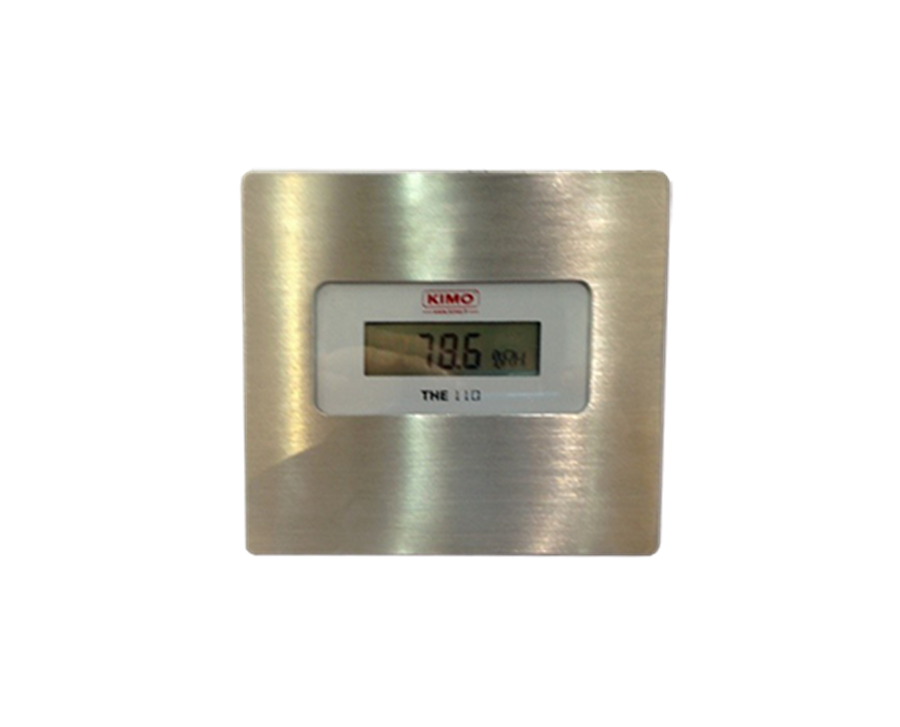

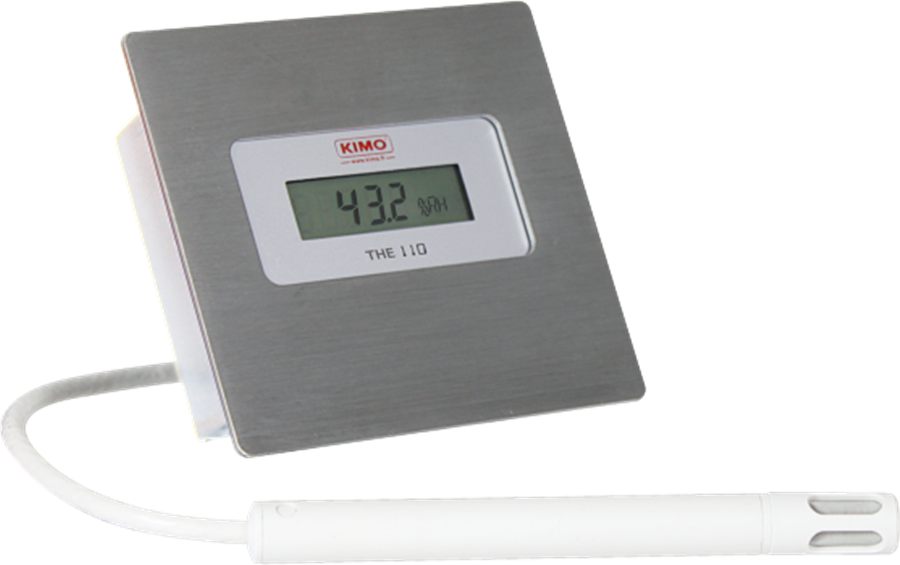

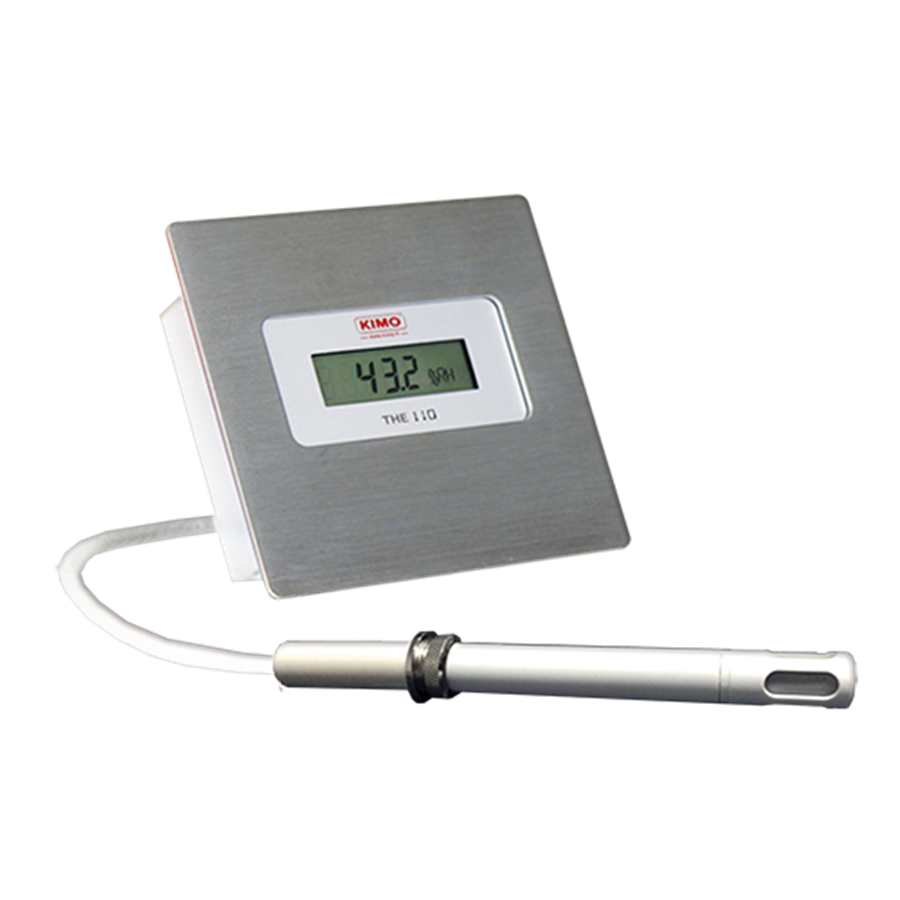

Flush-mount humidity and temperature transmitter
Flush-mount humidity and temperature transmitter
Flush-mount humidity and temperature transmitter
Flush-mount humidity and temperature transmitter
Flush-mount humidity and temperature transmitter
Flush-mount humidity and temperature transmitter
Flush-mount humidity and temperature transmitter
Flush-mount humidity and temperature transmitter
THE 110

Flush-mount humidity and temperature transmitter

Inquiry

0 ~ 100 %RH,-20 ~ +80 °C

Technical specification table

• Ranges from 0~100 %RH, -20~+80 °C;

• Alternating display of air velocity and temperature;

• Output 4~20 mA, power supply 16~30 Vdc ( 2 wires);

• Front face made of 316L brushed stainless steel, IP65 protection;

• Design to use in cleanroom application and flush-mount installation;

• Remote type probe, cable length of 10m;

• Terminal block for wiring of power supply and signal output and probe wires;


×

Product info

APPSoftware

MEASURE DETAILS

  • Units
    °F, °C, % RH

TECHNICAL DETAILS

  • Parameters
    Humidity
    Temperature
  • Displays
    No
    1-line display
  • IP Protection
    IP 65
  • Standards
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    24 Vac/Vdc (Active) or 16/30 Vdc (Passive)
  • Outputs
    0-10 V (Active) or 4-20 mA (Passive)
  • Ethernet communication
    No
  • ModBus network
    No


OPERATING TEMPERATURE

  • Min
    0.00 °C
  • Max
    50.00 °C



STORAGE TEMPERATURE

  • Min
    -10.00 °C
  • Max
    70.00 °C



LCC-S

LCC-S
