Humidity and temperature sensor
Humidity and temperature sensor
Humidity and temperature sensor
Humidity and temperature sensor
Humidity and temperature sensor
Humidity and temperature sensor
Humidity and temperature sensor
Humidity and temperature sensor
TH 110

Humidity and temperature sensor

Inquiry

0 ~ 100 %RH,-40 ~ +80°C

Technical specification table

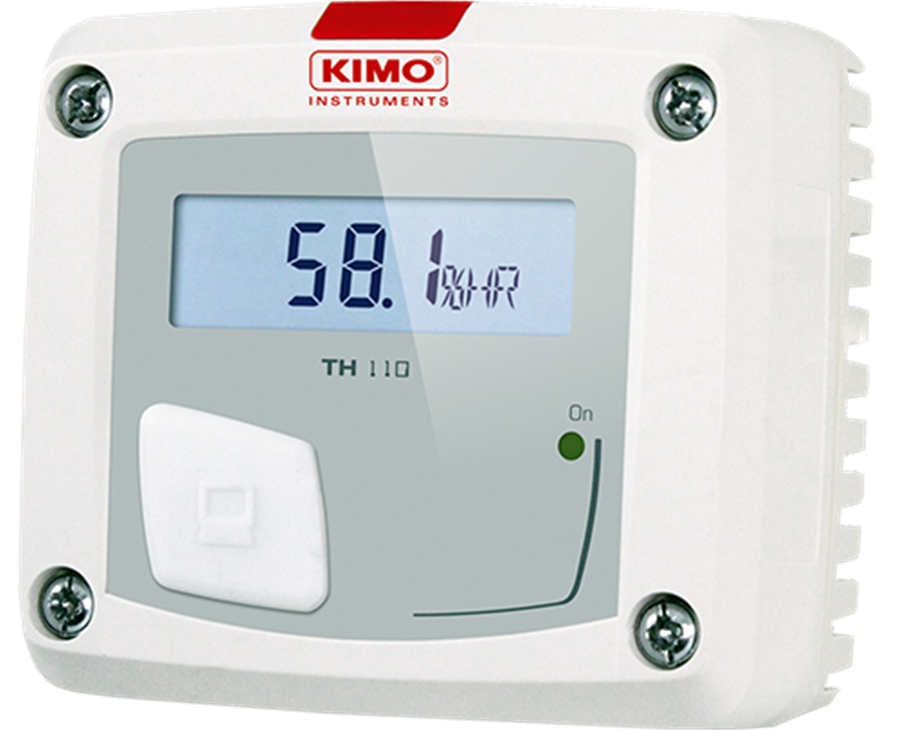

• Ambient model: 0~100 %RH, 0~50 °C;

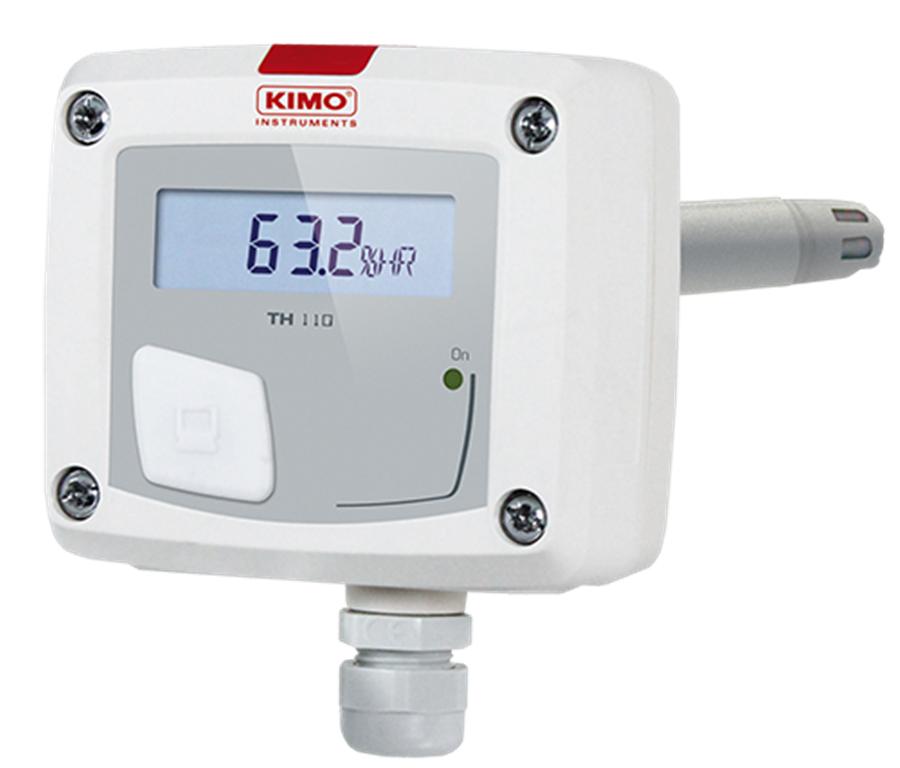

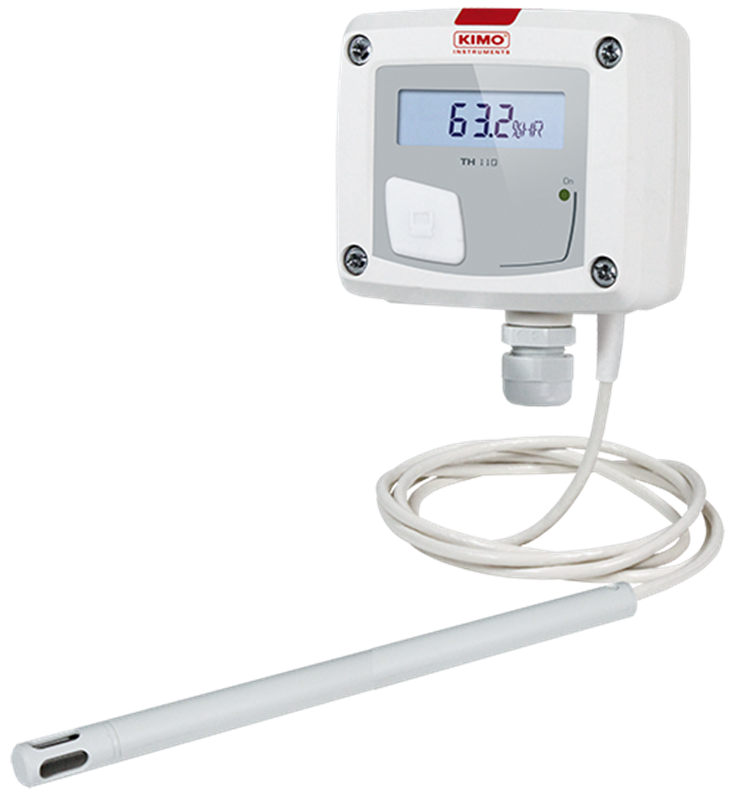

• Duct and Remote model: 0~100 %RH, -40~+80 °C;

• ABS V0 housing, IP65, with or without display;

• Alternating display of air velocity and temperature;

•  Connect analogue output/ power supply cable through back of transmitter;

• “¼ turn” system mounting with wall mount plate;


×

Product info

APPSoftware

Download

Compliance

MEASURE DETAILS

  • Units
    °F, °C, % RH

TECHNICAL DETAILS

  • Parameters
    Humidity
    Temperature
  • Displays
    No
    1-line display
  • IP Protection
    IP 65
  • Standards
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    24 Vac/Vdc (Active) or 16/30 Vdc (Passive)
  • Outputs
    0-10 V (Active) or 4-20 mA (Passive)
  • Ethernet communication
    No
  • ModBus network
    No


OPERATING TEMPERATURE

  • Min
    0.00 °C
  • Max
    50.00 °C



STORAGE TEMPERATURE

  • Min
    -10.00 °C
  • Max
    70.00 °C



LCC-S

LCC-S
3D File
RoHS Certificate Reach certificate CE certificate
