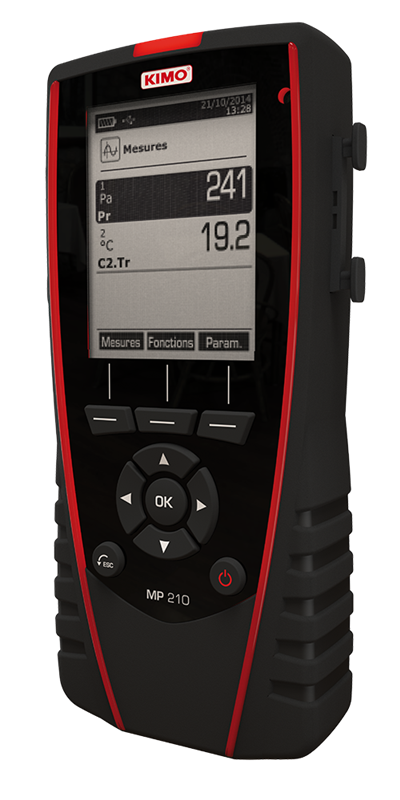

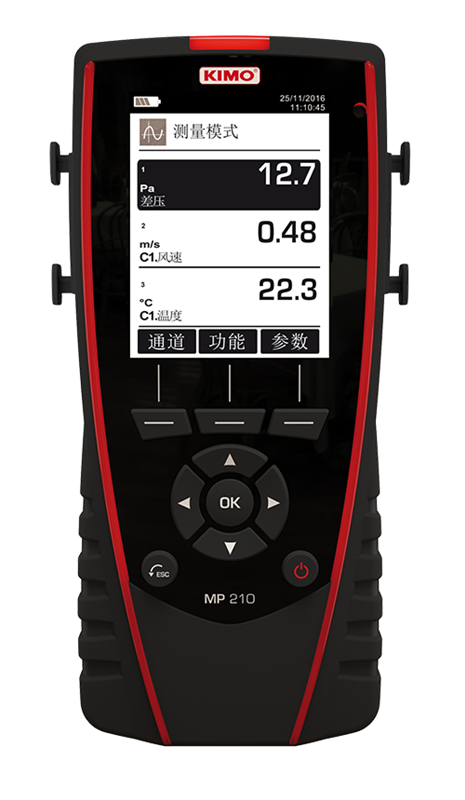

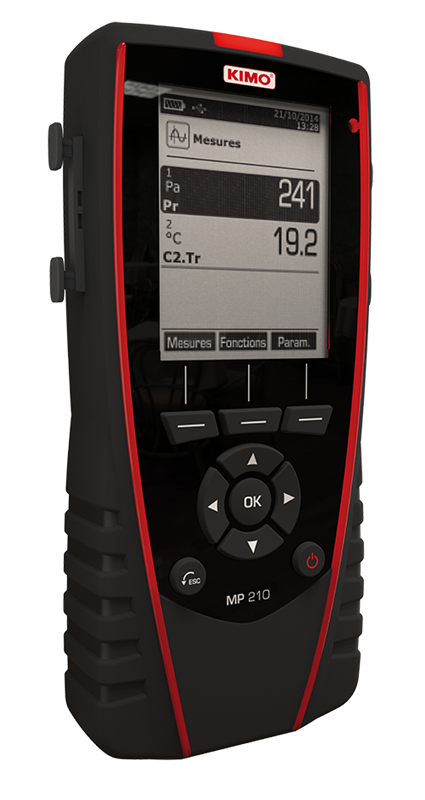

MP 210

Micromanometer

Inquiry

Kimo’s MP 210 micromanometer measures pressure, air velocity, airflow, temperature, tachometry, gas leak and carbon monoxide (up to 6 simultaneous measurements).

Technical specification table Operation manual Operation Manual (Simplified Version)
Measurement of pressure, air velocity, and airflow
Interchangeable modules
Two inputs for Pt100 temperature (from -200 to +600°C)
Up to 6 measurements simultaneously
Large graphic display
Calibration certificate


×

Product info

Probe

Accessories

APPSoftware

Compliance

MEASURE DETAILS

  • Units
    °F, °C, m³/s, mph, m/s, l/s, m³/h, km/h, fpm, cfm

TECHNICAL DETAILS

  • Parameters
    Air velocity
    Airflow
    Temperature
  • Displays
    4-line display
  • IP Protection
    IP 54
  • Battery life
    59 hours
  • Standards
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    Lithium-Ion battery
  • Probe type
    Wire & Wireless probe
  • Protective cover
    Yes
  • Interchangeable module
    Yes


INSTRUMENT DIMENSIONS

  • Length
    104 mm
  • Width
    63 mm
  • Height
    204 mm
  • Weight
    485 g



OPERATING TEMPERATURE

  • Min
    0.00 °C
  • Max
    50.00 °C

STORAGE TEMPERATURE

  • Min
    -20.00 °C
  • Max
    80.00 °C



Air velocity hot wire probes

Air velocity hot wire probes
Gas leak probe

Gas leak probe
Air quality probes

Air quality probes
Tachometry probe

Tachometry probe
Air velocity vane probes

Air velocity vane probes
Thermocouple temperature module

Thermocouple temperature module
Pressure module

Pressure module
Airflow cones

Airflow cones
Telescopic extension RTE

Telescopic extension RTE
Backpack SAD

Backpack SAD
Infrared remote printer

Infrared remote printer
Airflow cones

Airflow cones
Data processing software for HVAC portables

Data processing software for HVAC portables
RoHS Certificate Reach certificate CE certificate
