AMI 310

Multifunction

Inquiry

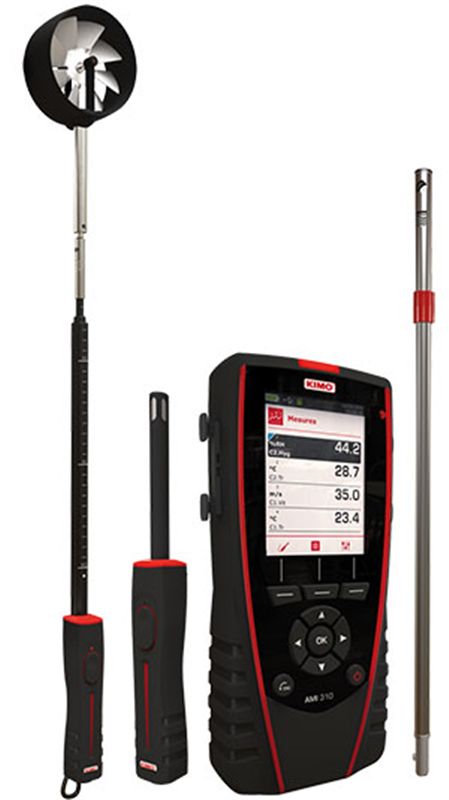

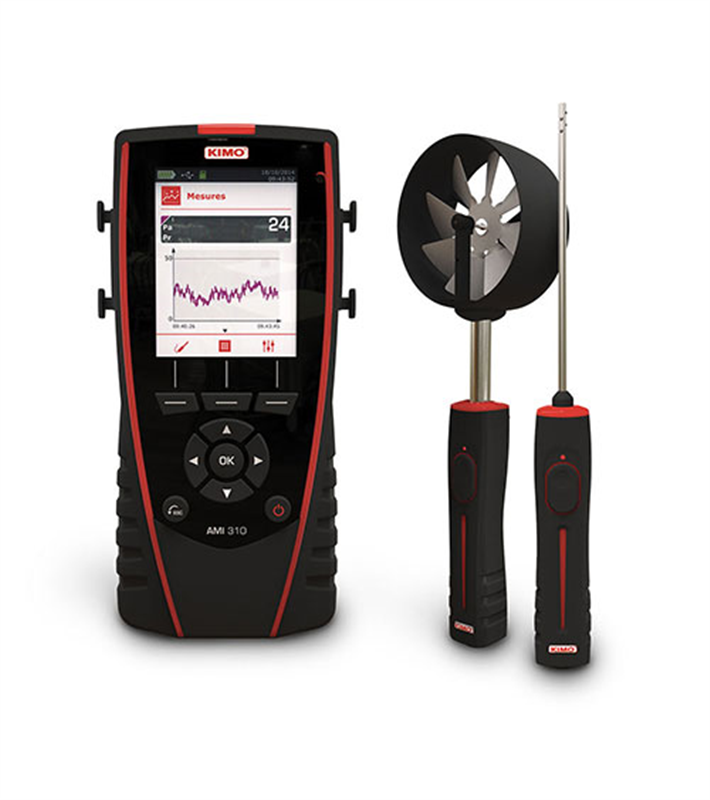

Kimo’s AMI 310 measures simultaneous parameters including pressure, temperature (Pt100 and thermocouple), humidity, air quality (CO/CO2), air velocity, airflow (vane probes and hotwire), and tachometry.

Technical specification table Operation manual Operation Manual (Simplified Version)
Measurement of hygrometry, temperature, CO2, CO, air velocity, airflow, pressure, and tachometry (depending on model and probe)

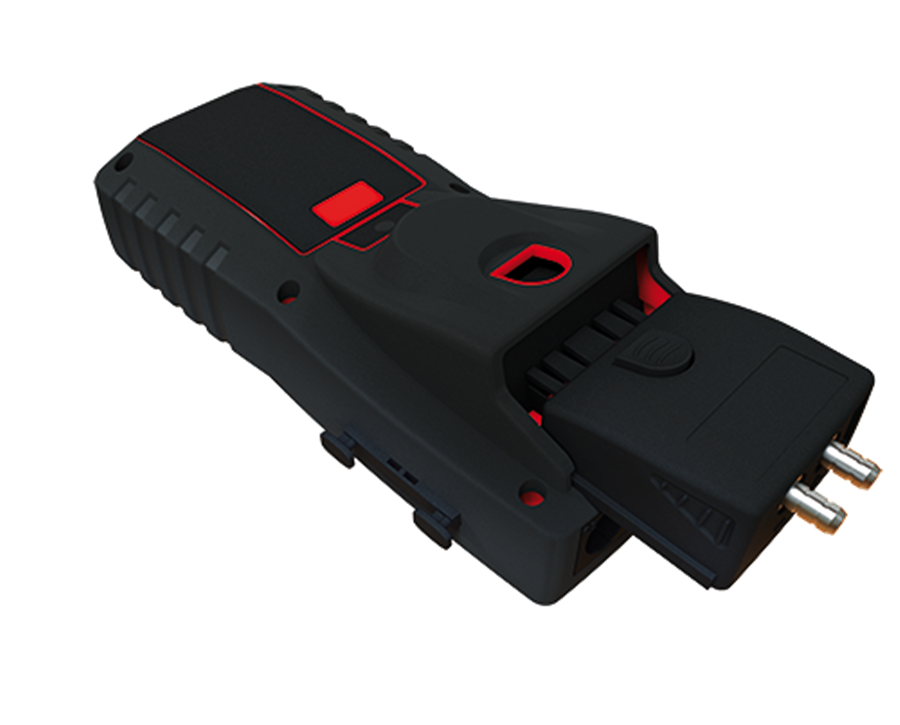

Interchangeable modules
Expandable memory with micro-SD card
Two inputs for Pt100 temperature (from -200 to +600°C)
Up to six measurements simultaneously
Calibration certificate


×

Product info

Probe

Accessories

APPSoftware

Compliance

Technical documentation

MEASURE DETAILS

  • Units
    °F, °C, % RH, Pa, rpm, m³/s, mph, kPa, ppm, g/m³, g/kg, m/s, bar, mbar, l/s, hPa, m³/h, tr/min, km/h, fpm, inWg, mmH₂O, mmHg, daPa, cfm, psi

TECHNICAL DETAILS

  • Parameters
    Air quality
    Air velocity
    Airflow
    Differential pressure
    Humidity
    Tachometry
    Temperature
  • Displays
    4-line display
  • IP Protection
    IP 54
  • Battery life
    32 hours
  • Standards
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    Lithium-Ion battery
  • Probe type
    Wire & Wireless probe
  • Protective cover
    Yes
  • Interchangeable module
    Yes


INSTRUMENT DIMENSIONS

  • Length
    104 mm
  • Width
    63 mm
  • Height
    204 mm
  • Weight
    485 g
shadow



OPERATING TEMPERATURE

  • Min
    0.00 °C
  • Max
    50.00 °C
shadow

STORAGE TEMPERATURE

  • Min
    -20.00 °C
  • Max
    80.00 °C
