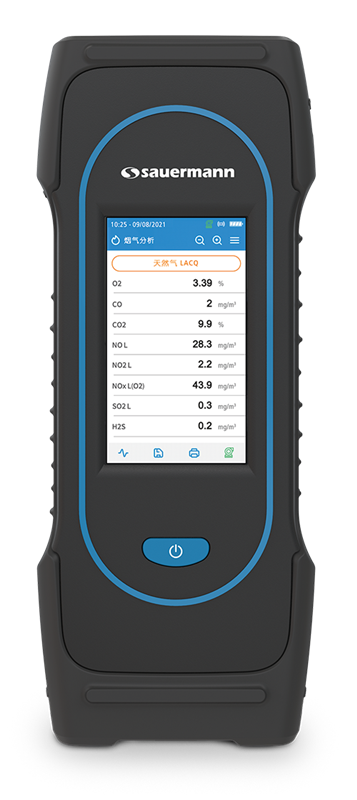

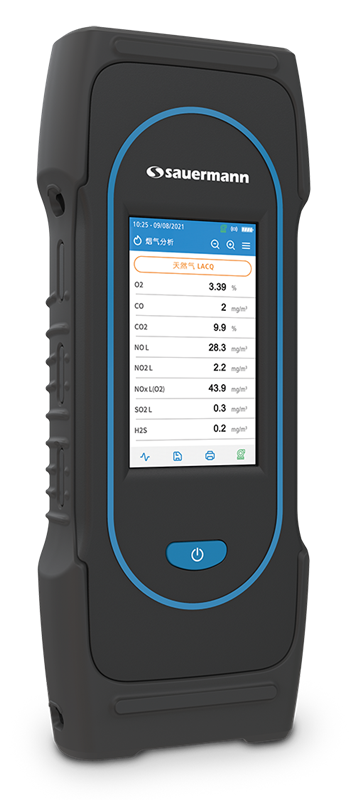

Si-CA 230

High performance analyzer, powered for industrial capablities

Inquiry

With double the number of cells and expanded measurement capabilities, the Si-CA 230 is suited to the most powerful industrial machines. And with support for more gases and a high CO tolerance threshold, its versatility makes it the ideal choice across residential, commercial and industrial applications.

Technical specification table Operation manual Operation Manual (Simplified Version)
Up to six gas sensors
Total NOx & Low NOx Capable
Field Replaceable Pre-Calibrated Sensors
Large Color Touch Screen
iOS and Android Mobile Apps for Real-Time Display & Control
CO Dilution auto-range with measurements to 50,000 ppm


×

Product info

>Kit content

Accessories

APPSoftware

Download

Compliance

Technical documentation

MEASURE DETAILS

  • Units
    °C, %, Pa, ppm, m/s, mbar



MEASURING RANGES

  • O2
    0.00 % ... 25.00 %
  • CO (H2 comp.)
    0.00 ppm ... 10000.00 ppm
  • CO (with dilution)
    100.00 ppm ... 50000.00 ppm
  • CO2
    0.00 % ... 99.00 %
  • NO
    0.00 ppm ... 5000.00 ppm
  • Low NO
    0.00 ppm ... 300.00 ppm
  • NO2
    0.00 ppm ... 1000.00 ppm
  • Low NO2
    0.00 ppm ... 100.00 ppm
  • NOx
    0.00 ppm ... 7500.00 ppm
  • Low NOx
    0.00 ppm ... 450.00 ppm
  • SO2
    0.00 ppm ... 5000.00 ppm
  • Low SO2
    0.00 ppm ... 100.00 ppm
  • CxHy (HC)
    0.00 % ... 5.00 %
  • H2S
    0.00 ppm ... 500.00 ppm
  • Flue temperature
    -20.00 °C ... 1250.00 °C
  • Air temperature
    -20.00 °C ... 120.00 °C
  • Differential temperature
    0.00 °C ... 1250.00 °C
  • Pressure/Draft
    -200.00 mbar ... 200.00 mbar
  • High accuracy draft
    500.00 Pa ... 500.00 Pa
  • Excess air
    0.00 % ... 999.00 %
  • Efficiency
    0.00 % ... 100.00 %
  • Efficiency (condensation)
    0.00 % ... 125.00 %
  • Stack Gas velocity
    0.00 m/s ... 99.00 m/s

TECHNICAL DETAILS

  • Parameters
    Air quality
    Gas analysis
    CO
    CO₂
    H₂S
    NO
    NO₂
    O₂
    SO₂
  • Displays
    Color graphical display
  • IP Protection
    IP 42
  • Battery life
    8 hours
  • Standards
    2015/863 EU (RoHS 3)
    TÜV SÜD Certification
    UKCA
    NF EN 50379-1
    NF EN 50379-2
    2014/53/EU RED
  • Wireless connection
    1
  • Power supply
    Rechargeable battery, Li-Ion 5100 mA/h 3.6 V
  • Usb
    Yes
  • Sensors
    CO
    CO2
    CxHy
    H2S
    NOx
    NO
    NO2
    O2
    SO2
  • Auto zero
    Yes
  • Printer
    Remote
  • Sensor protection
    Sensor protection by pump stopping
  • Mobile application
    Yes


INSTRUMENT DIMENSIONS

  • Length
    112 mm
  • Width
    55 mm
  • Height
    280 mm
  • Weight
    825 g



OPERATING TEMPERATURE

  • Min
    -5.00 °C
  • Max
    45.00 °C

STORAGE TEMPERATURE

  • Min
    -20.00 °C
  • Max
    50.00 °C

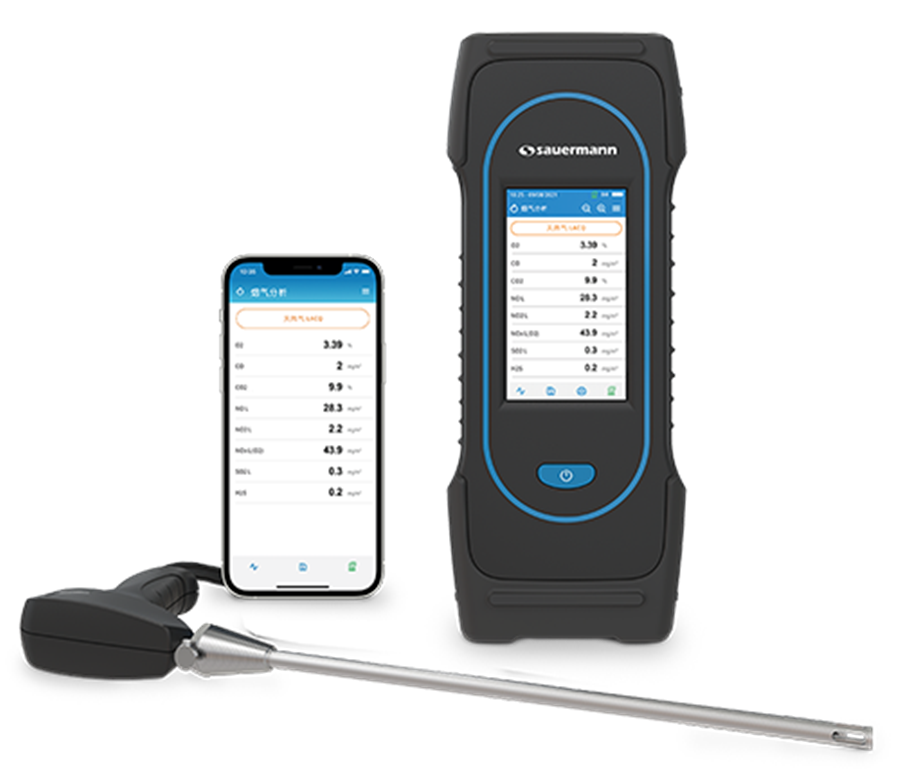

1 Si-CA 230 analyzer
1 O2 gas sensors
1 CO gas sensors
1 CO Dilution Auto-Range to 50,000 ppm
1 Protective rubber holster
1 300 mm flue gas probe with 3 m dual hose (other probe lengths available)
1 Water trap with filter
1 AC power supply / charger
1 USB cable
1 Mobile app & PC software
1 Internal wireless communication module
1 Carrying case
1 Quick Start Guide
1 Calibration certificate


Remote wireless printer

Remote wireless printer
Hose extension

Hose extension
Differential pressure hose kit

Differential pressure hose kit
SCU (Sample Conditioning Unit)

SCU (Sample Conditioning Unit)
NO or Low NO sensor for NOx

NO or Low NO sensor for NOx
SO2 or Low SO2 sensor

SO2 or Low SO2 sensor
NO2 or Low NO2 sensor

NO2 or Low NO2 sensor
CxHy sensor

CxHy sensor

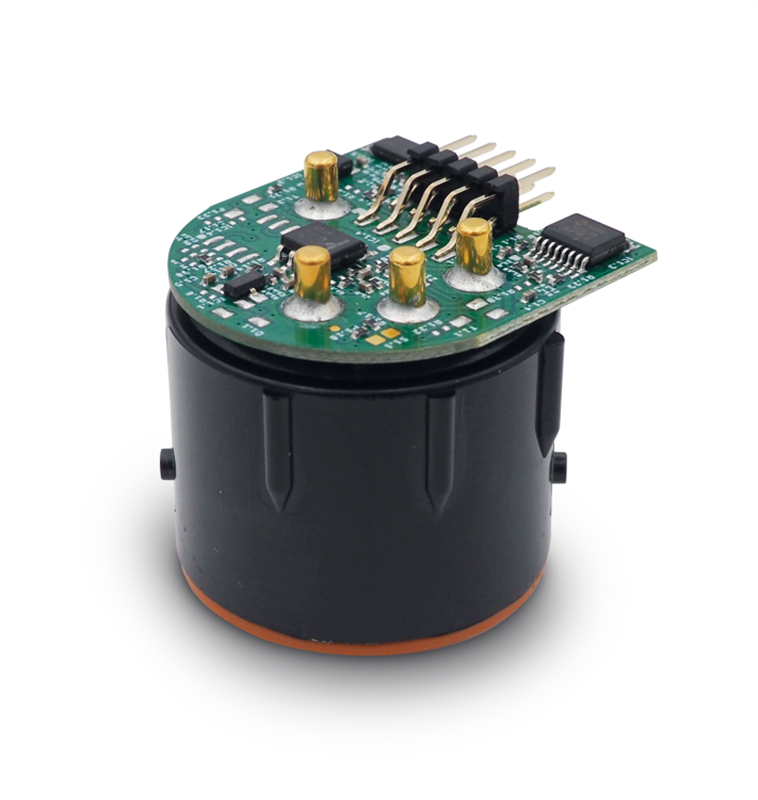

H2S sensor

H2S sensor
Sauermann Control mobile App

Sauermann Control mobile App
Sauermann Control software

Sauermann Control software
