Si-CA 030

All the essentials for combustion gas analysis

Inquiry

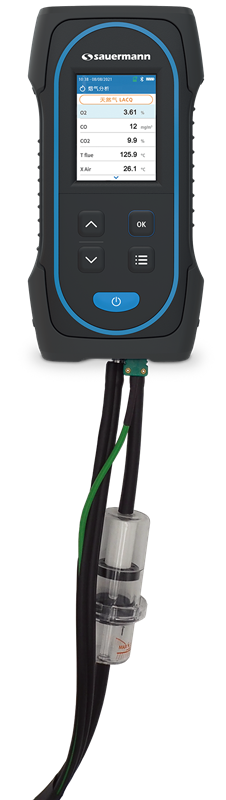

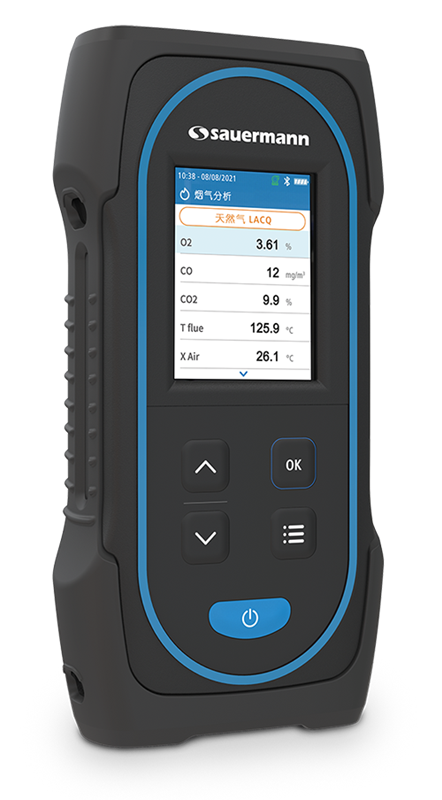

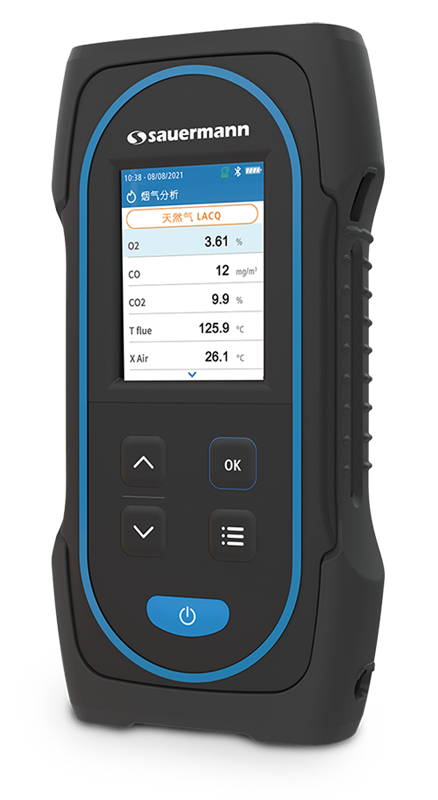

The Si-CA 030 offers everything heating engineers need to inspect and maintain residential and commercial boilers, with wireless connection to our smartphone app and automatic generation of servicing reports and certificates.

Technical specification table Operation manual Operation Manual (Simplified Version)
Up to three gas sensors O2, CO and NO (for NOx)
CO sensor measurement up to 8,000 ppm
Auto pump cut-off for high CO levels
Color display screen
Lightweight, only 350 g (12 oz)
Data management with automatic logging & report creation


×

Product info

Probe

>Kit content

Accessories

APPSoftware

Download

Compliance

MEASURE DETAILS

  • Units
    °C, %, ppm, mbar

MEASURING RANGES

  • O2
    0.00 % ... 25.00 %
  • CO
    0.00 ppm ... 8000.00 ppm
  • CO2
    0.00 % ... 99.90 %
  • Flue temperature
    -20.00 °C ... 1250.00 °C
  • Air temperature
    -20.00 °C ... 120.00 °C
  • Differential temperature
    0.00 °C ... 1250.00 °C
  • Pressure/Draft
    -200.00 mbar ... 200.00 mbar
  • Excess air
    0.00 % ... 999.00 %
  • Efficiency
    0.00 % ... 100.00 %
  • Efficiency (condensation)
    0.00 % ... 125.00 %

TECHNICAL DETAILS

  • Parameters
    CO
    CO₂
    O₂
  • Displays
    Color graphical display
  • IP Protection
    IP 42
  • Battery life
    8 hours
  • Standards
    2015/863 EU (RoHS 3)
    NF EN 50379-3
    TÜV SÜD Certification
    UKCA
    NF EN 50379-1
    2014/53/EU RED
  • Wireless connection
    1
  • Power supply
    Rechargeable battery, Li-Ion 5100 mA/h 3.6 V
  • Usb
    Yes
  • Sensors
    CO
    CO2
    O2
  • Auto zero
    Yes
  • Printer
    Remote
  • Sensor protection
    Sensor protection by pump stopping
  • Mobile application
    Yes


INSTRUMENT DIMENSIONS

  • Length
    99 mm
  • Width
    49 mm
  • Height
    194 mm
  • Weight
    350 g



OPERATING TEMPERATURE

  • Min
    -5.00 °C
  • Max
    45.00 °C

STORAGE TEMPERATURE

  • Min
    -20.00 °C
  • Max
    50.00 °C



Si-CA 030/130/230 Flexible probe

Si-CA 030/130/230 Flexible probe
Probes 27532, 27533, 27534

Probes 27532, 27533, 27534
1 Si-CA 030 analyzer
1 O2 gas sensors
1 CO gas sensors
1 NO gas sensors (optional)
1 Protective rubber holster
1 Flue gas probe with dual hose
1 Water trap with filter
1 AC power supply / charger
1 USB cable
1 Mobile app
1 Internal wireless communication module
1 Carrying case or box packaging
1 Quick Start Guide
1 Calibration certificate


Temperature / Hygrometry / Atmospheric pressure / CO2

Temperature / Hygrometry / Atmospheric pressure / CO2
Remote wireless printer

Remote wireless printer
Hose extension

Hose extension
Differential pressure hose kit

Differential pressure hose kit
SCU (Sample Conditioning Unit)

SCU (Sample Conditioning Unit)
NO2 or Low NO2 sensor

NO2 or Low NO2 sensor
Sauermann Control mobile App

Sauermann Control mobile App
Combustion gas analyzers Si-CA 030/130/230 Si-CA 030/130/230 selection guide
