TM 210

Multi channels thermometer

Inquiry

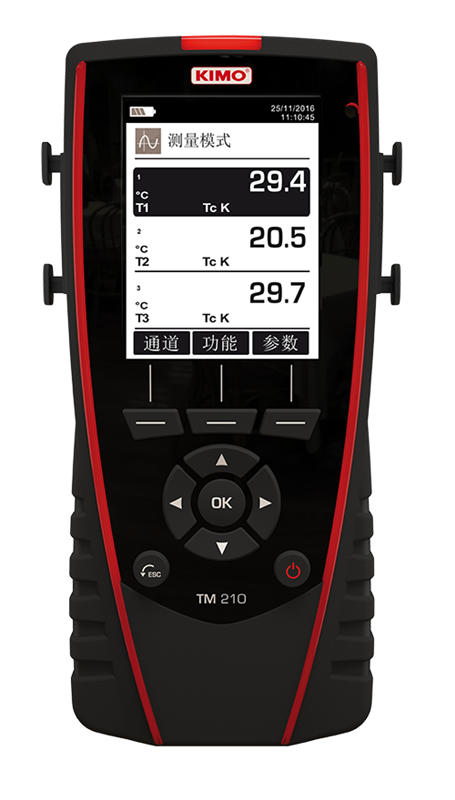

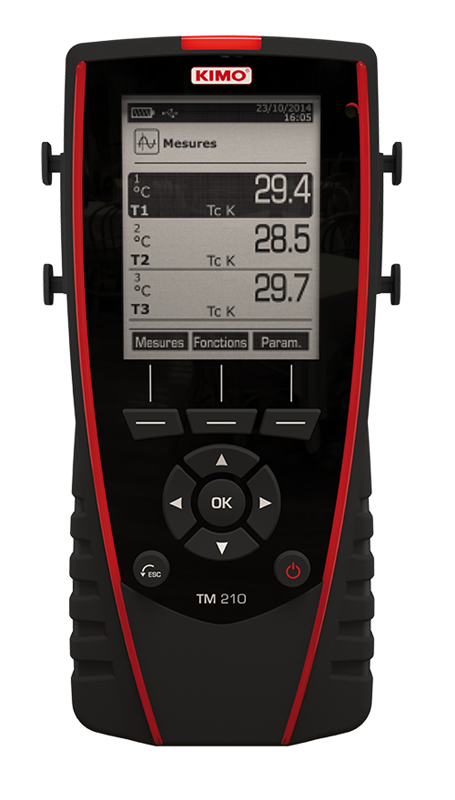

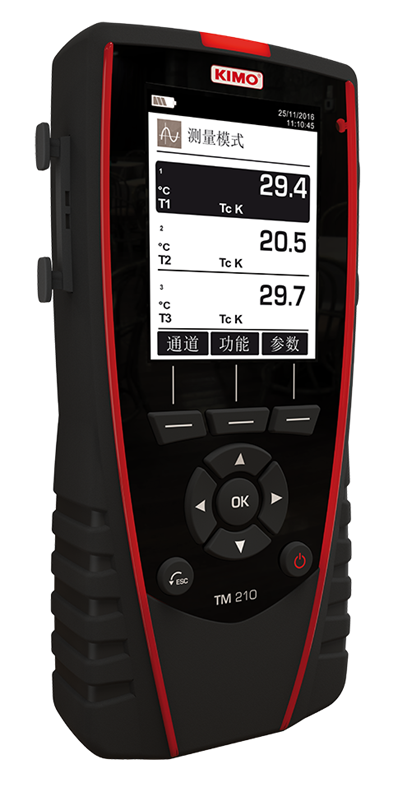

A multichannel thermometer is used in a variety of different fields. It can measure surface, air, and core temperatures. Kimo’s TM 210 differential thermometer is a versatile 6-channel thermometer which has 2 channels dedicated to Pt100 probes and 4 channels for thermocouple inputs.

Technical specification table Operation Manual (Simplified Version)
Measuring ranges: Ambient model: -20 to +80°C and terminal block model: from -100 to +400°C
With or without 2-line 19-digits LCD display
Two relays
0-5/10 V or 0/4-20 mA outputs
Quick and easy mounting with the 1/4 turn system with wall-mount plate
Adjustment certificate


×

Product info

Probe

Accessories

APPSoftware

Download

Compliance

MEASURE DETAILS

  • Units
    °C

TECHNICAL DETAILS

  • Parameters
    Temperature
  • Displays
    2-line display
  • IP Protection
    IP 65
  • Standards
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    24 Vac/Vdc
  • Outputs
    2 x 4-20 mA or 2 x 0-20 mA or 2 x 0-5 V or 2 x 0-10 V (4 wires)
  • Relay
    2 changeover relays 3 A / 230 V
  • Ethernet communication
    No
  • ModBus network
    No


INSTRUMENT DIMENSIONS

  • Length
    125 mm
  • Width
    59.2 mm
  • Height
    115 mm
  • Weight
    340 g



OPERATING TEMPERATURE

  • Min
    -10.00 °C
  • Max
    50.00 °C

STORAGE TEMPERATURE

  • Min
    -10.00 °C
  • Max
    70.00 °C



Thermocouple and Pt100 temperature probes

Thermocouple and Pt100 temperature probes

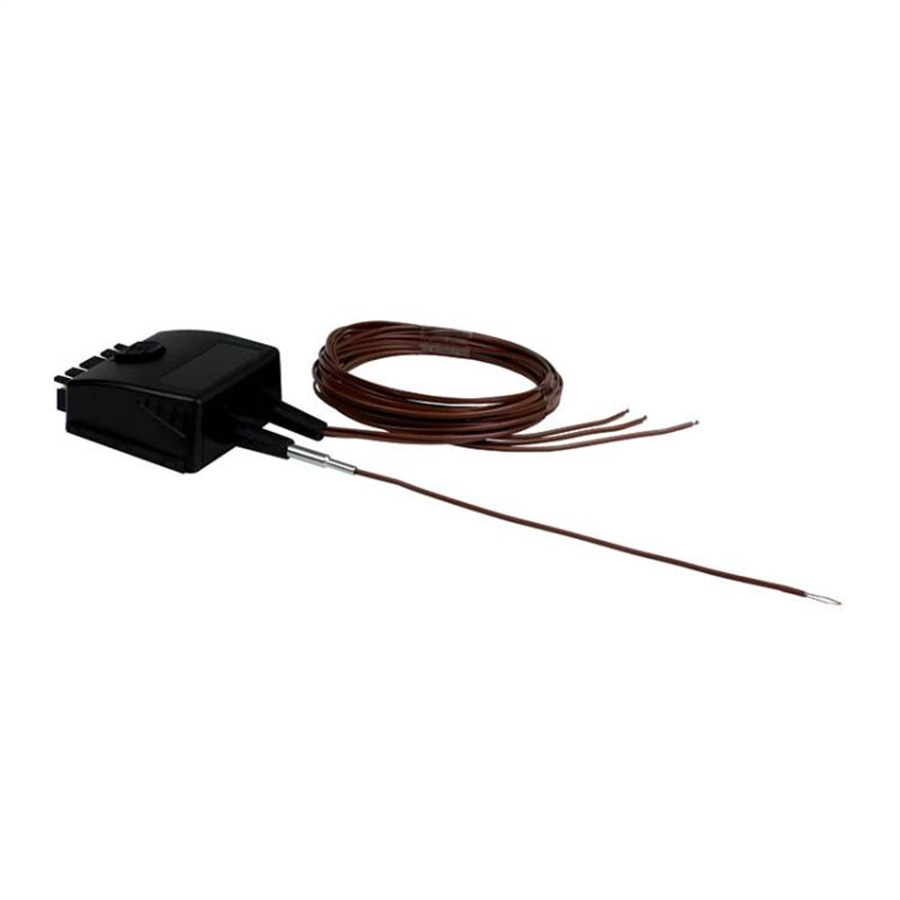

U coefficient module

U coefficient module
Thermocouple temperature module

Thermocouple temperature module
Polycarbonate case

Polycarbonate case
Telescopic extension RTE

Telescopic extension RTE
Backpack SAD

Backpack SAD
Infrared remote printer

Infrared remote printer
LCC-S

LCC-S
3D File
RoHS Certificate Reach certificate CE certificate
