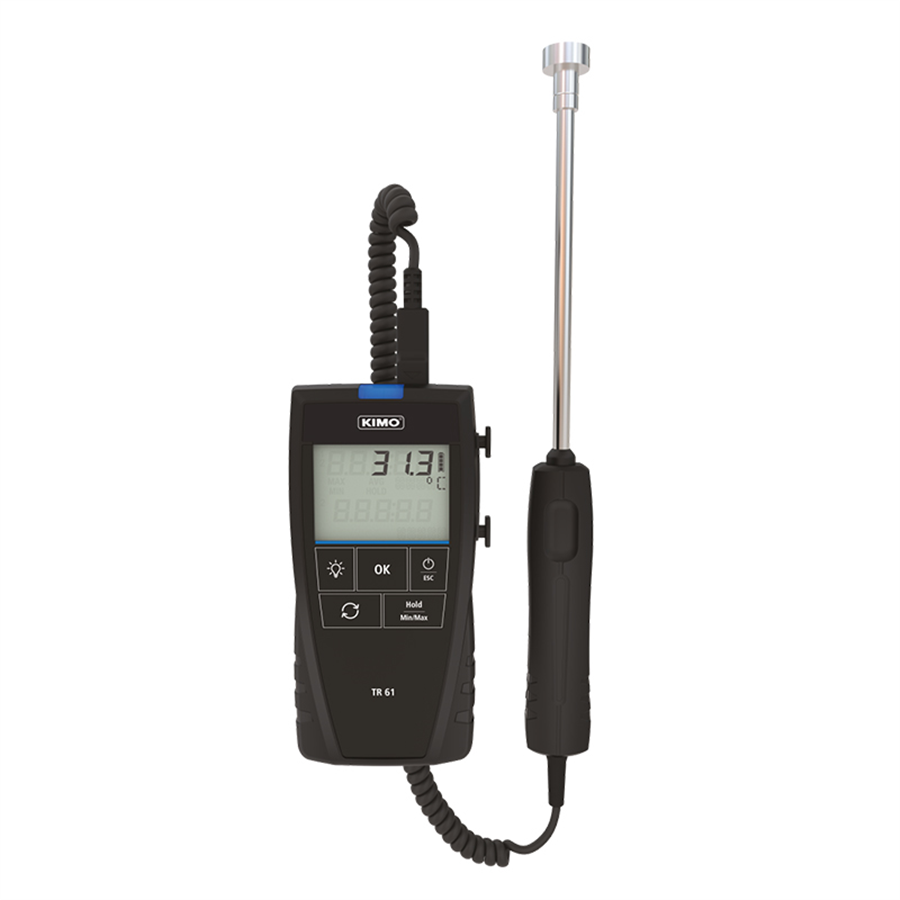

TR 61

Pt100 Temperature

-100 ~ +400 °C

Technical specification table Operation manual

TR 61: 1 channel and TR 62: 2 channels

Measuring range: -100 to +400°C

Adjustable alarms

Adjustable backlight

Hold function and min-max values

Adjustment certificate

×

Product info

Probe

Accessories

Compliance

MEASURE DETAILS

Units
°F, °C

MEASURING RANGES

Pt100 probe
-100.00 °C ... 400.00 °C
Pt100 probe
-148.00 °F ... 752.00 °F

TECHNICAL DETAILS

Parameters
Temperature
Displays
4-line display
IP Protection
IP 54
Battery life
180 hours
Standards
FCC part 15
UKCA
2011/65/EU RoHS II
2012/19/EU WEEE
2014/30/EU EMC
2014/35/EU Low Voltage
Power supply
4 batteries AAA LR03 1.5 V
Protective cover
No
Interchangeable module
No

INSTRUMENT DIMENSIONS

Length
5 13/16 inches
147.9 mm
Width
3 1/32 inches
76.7 mm
Height
1 11/32 inches
34.2 mm
Weight
15/32 pounds
210 g

OPERATING TEMPERATURE

Min
0.00 °C
32.00 °F
Max
50.00 °C
122.00 °F

STORAGE TEMPERATURE

Min
-20.00 °C
-4.00 °F
Max
80.00 °C
176.00 °F

Thermocouple and Pt100 temperature probes

Thermocouple and Pt100 temperature probes

Transport case MT 51

Transport case MT 51

Protective cover CQ 15

Protective cover CQ 15

Telescopic extension RTE

Telescopic extension RTE

RoHS Certificate Reach certificate CE certificate
