KIRAY 200

Infrared thermometer

Inquiry

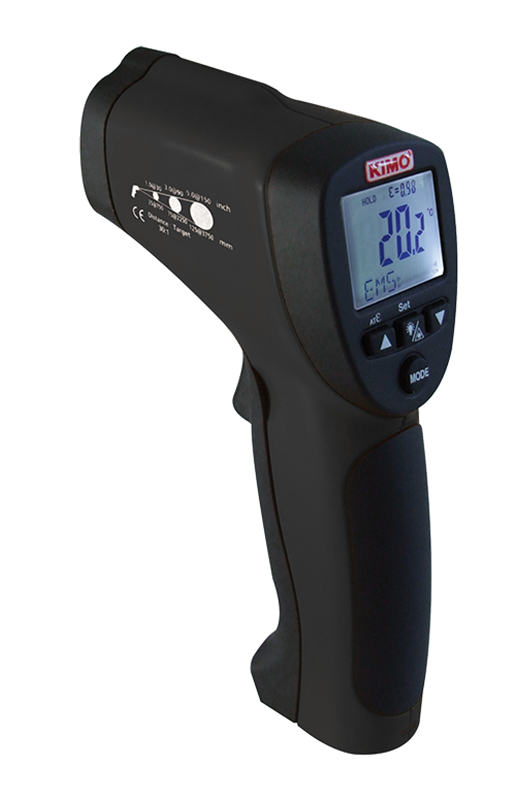

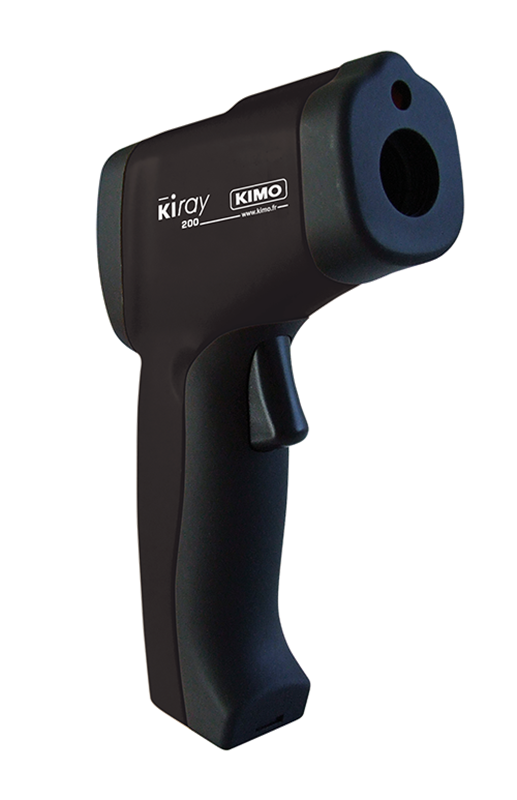

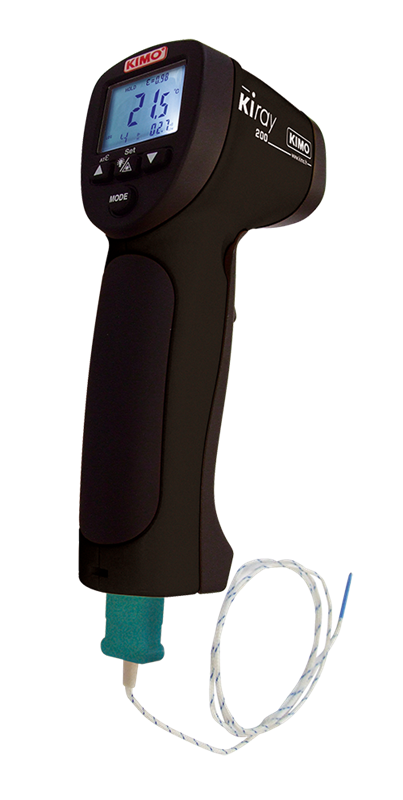

The Kimo KIRAY 200 infrared thermometer with a dual laser sighting is a key instrument to diagnose, inspect and check any temperature, with the advantage of using “no-contact” technology. It has a range from -50 to +850 °C. An infrared thermometer measures surface temperatures of hot objects that are dangerous or difficult to access.

Technical specification table Operation manual
Measuring range from -50 °C to +850 °C
Spectral response: 8 - 14 µm
Optical: 30:1
Dual laser sighting: wave length: from 630 nm-670 nm
Emissivity: adjustable de 0.10 à 1.00 (pre-set at 0.95)
High/low alarm and thermocouple K probe


×

Product info

Compliance

MEASURE DETAILS

  • Units
    °F, °C



MEASURING RANGES

  • Temperature
    -50.00 °C ... 850.00 °C
  • Temperature
    -58.00 °F ... 1562.00 °F
  • Thermocouple temperature
    -40.00 °C ... 400.00 °C
  • Thermocouple temperature
    -40.00 °F ... 752.00 °F

TECHNICAL DETAILS

  • Parameters
    Temperature
  • Displays
    1-line display
  • Battery life
    38 hours
  • Standards
    EN 61326-2: 2013
    FCC part 15
    EN 61326-1: 2013
  • Power supply
    Alkaline 9 V battery
  • Probe type
    Built-in probe
  • Protective cover
    No
  • Interchangeable module
    No


INSTRUMENT DIMENSIONS

  • Length
    6 7/8 inches
    175 mm
  • Width
    4 11/32 inches
    110 mm
  • Height
    1 25/32 inches
    45 mm
  • Weight
    1/2 pounds
    230 g



OPERATING TEMPERATURE

  • Min
    0.00 °C
    32.00 °F
  • Max
    50.00 °C
    122.00 °F

STORAGE TEMPERATURE

  • Min
    -20.00 °C
    14.00 °F
  • Max
    60.00 °C
    140.00 °F



RoHS Certificate Reach certificate
