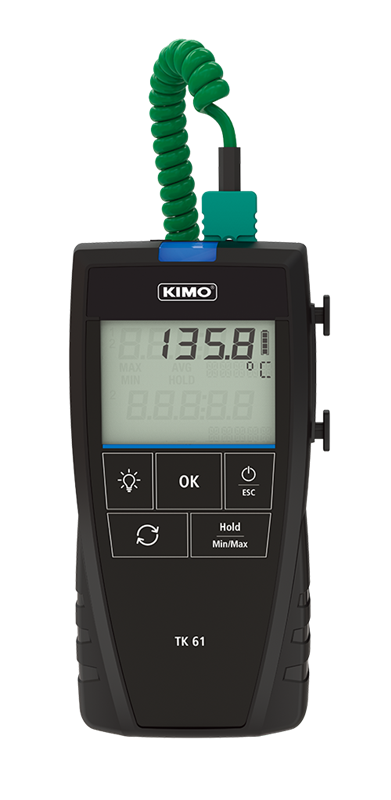

TK 61

Thermocouple temperature

Inquiry

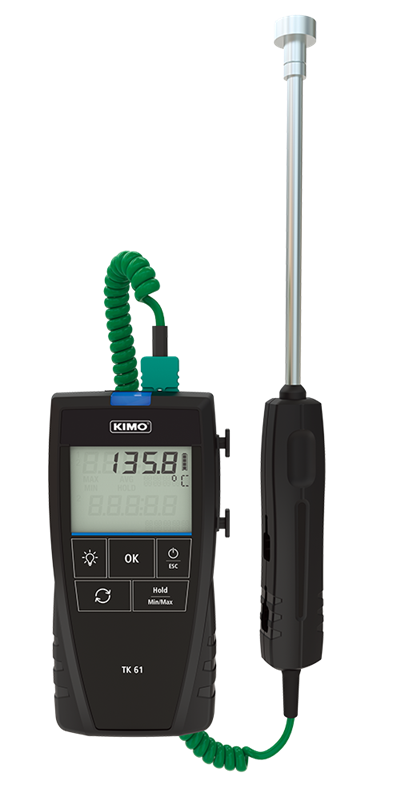

Kimo’s TK 61/62 digital thermometers are designed to accurately measure air temperature using an assortment of thermocouples.
Probe(s) not included, sold separately.

Technical specification table Operation manual
Measuring range: -200 to +1760°C
TK 61: 1 channel and TK 62: 2 channels
Adjustable alarms
Adjustable backlight
Hold function and min-max values
Adjustment certificate


×

Product info

Probe

Accessories

Compliance

MEASURE DETAILS

  • Units
    °F, °C



MEASURING RANGES

  • Thermocouple temperature
    -200.00 °C ... 1300.00 °C
  • Thermocouple temperature
    -100.00 °C ... 750.00 °C
  • Thermocouple temperature
    -200.00 °C ... 400.00 °C
  • Thermocouple temperature
    0.00 °C ... 1760.00 °C
  • Thermocouple temperature
    -328.00 °F ... 2372.00 °F
  • Thermocouple temperature
    -148.00 °F ... 1382.00 °F
  • Thermocouple temperature
    -328.00 °F ... 752.00 °F
  • Thermocouple temperature
    32.00 °F ... 3200.00 °F

TECHNICAL DETAILS

  • Parameters
    Temperature
  • Displays
    4-line display
  • IP Protection
    IP 54
  • Battery life
    180 hours
  • Standards
    FCC part 15
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
  • Power supply
    4 batteries AAA LR03 1.5 V
  • Protective cover
    No
  • Interchangeable module
    No


INSTRUMENT DIMENSIONS

  • Length
    5 13/16 inches
    147.9 mm
  • Width
    3 1/32 inches
    76.7 mm
  • Height
    1 11/32 inches
    34.2 mm
  • Weight
    15/32 pounds
    210 g



OPERATING TEMPERATURE

  • Min
    0.00 °C
  • Max
    50.00 °C

STORAGE TEMPERATURE

  • Min
    -20.00 °C
  • Max
    80.00 °C



Thermocouple and Pt100 temperature probes

Thermocouple and Pt100 temperature probes
Transport case MT 51

Transport case MT 51
Protective cover CQ 15

Protective cover CQ 15
Telescopic extension RTE

Telescopic extension RTE
