KIRAY 300

Infrared thermometer

Inquiry

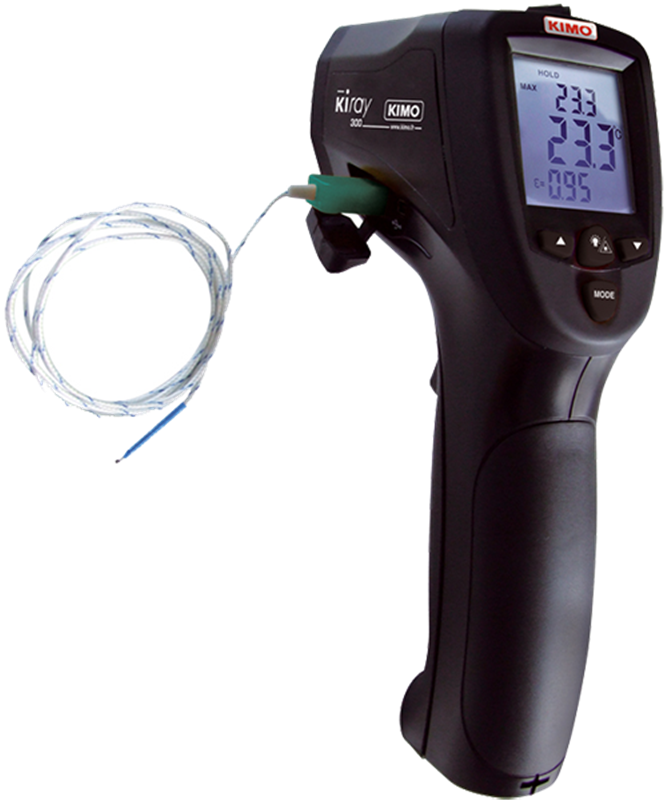

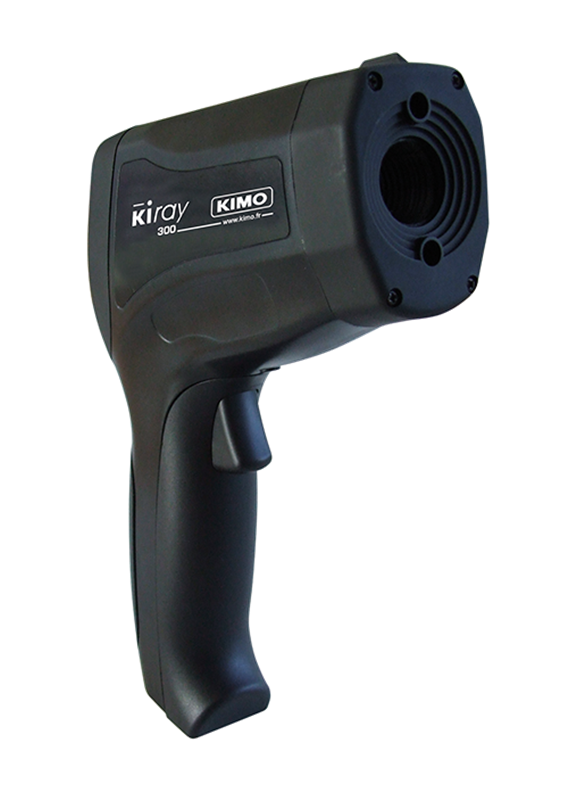

The Kimo KIRAY 300 infrared thermometer with a dual laser sighting is a key instrument to diagnose, inspect and check any temperature, with the advantage of using “no-contact” technology. It has a measuring range of -50 °C to +1850 °C. An infrared thermometer measures surface temperatures of hot objects that are dangerous or difficult to access.

Technical specification table Operation manual
Measuring range from -50°C to +1850°C
Spectral response 8 - 14 µm
Optical: 50:1
Dual laser sighting: wave length 630-670 nm
Emissivity: adjustable from 0.10 to 1.00 (pre-set at 0.95)
High/low alarm and thermocouple K probe


×

Product info

Compliance

MEASURE DETAILS

  • Units
    °F, °C



MEASURING RANGES

  • Temperature
    -50.00 °C ... 1850.00 °C
  • Temperature
    -58.00 °F ... 3362.00 °F

TECHNICAL DETAILS

  • Parameters
    Temperature
  • Displays
    3-line display
  • Battery life
    95 hours
  • Standards
    EN 61326-2: 2013
    FCC part 15
    EN 61326-1: 2013
  • Power supply
    Alkaline 9 V battery
  • Probe type
    Built-in probe
  • Protective cover
    No
  • Interchangeable module
    No


INSTRUMENT DIMENSIONS

  • Length
    7 7/8 inches
    200 mm
  • Width
    5 1/2 inches
    140 mm
  • Height
    1 31/32 inches
    50 mm
  • Weight
    23/32 pounds
    320 g



OPERATING TEMPERATURE

  • Min
    0.00 °C
    32.00 °F
  • Max
    50.00 °C
    122.00 °F

STORAGE TEMPERATURE

  • Min
    -10.00 °C
    14.00 °F
  • Max
    60.00 °C
    140.00 °F



RoHS Certificate Reach certificate
