TH20

Humidity and temperature transmitter

Inquiry

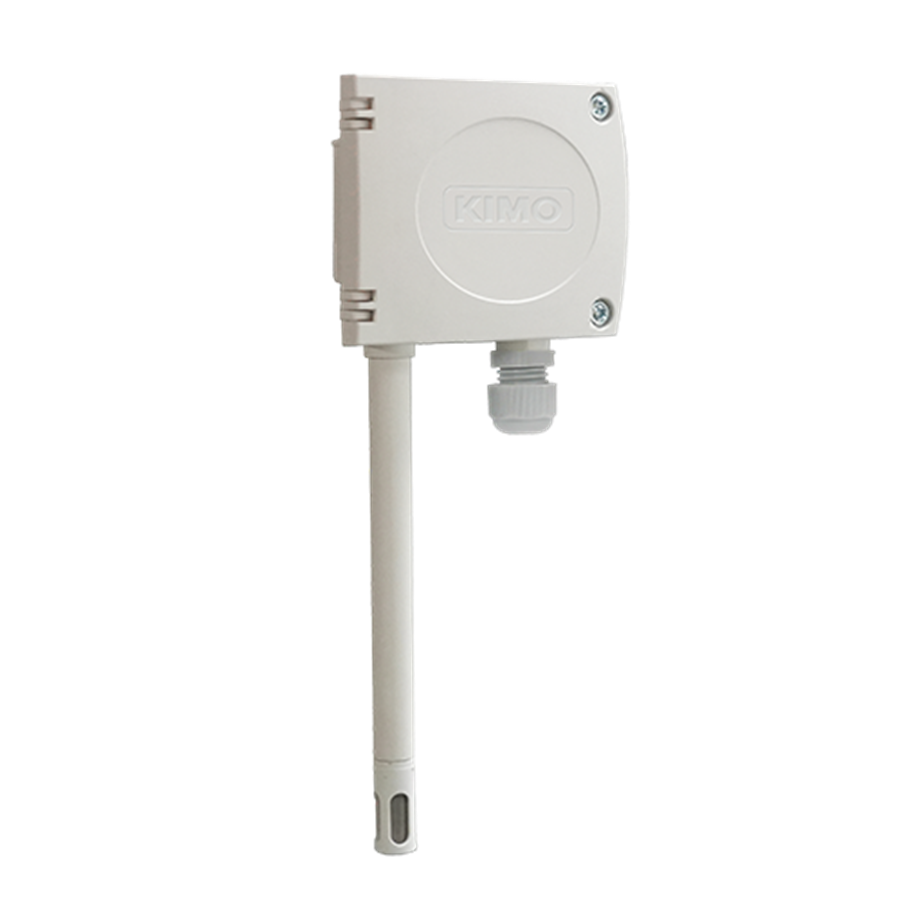

TH20 transmitters measure humidity from 0 to 100 %RH and temperature from -20 to 60°C in room or ducts.

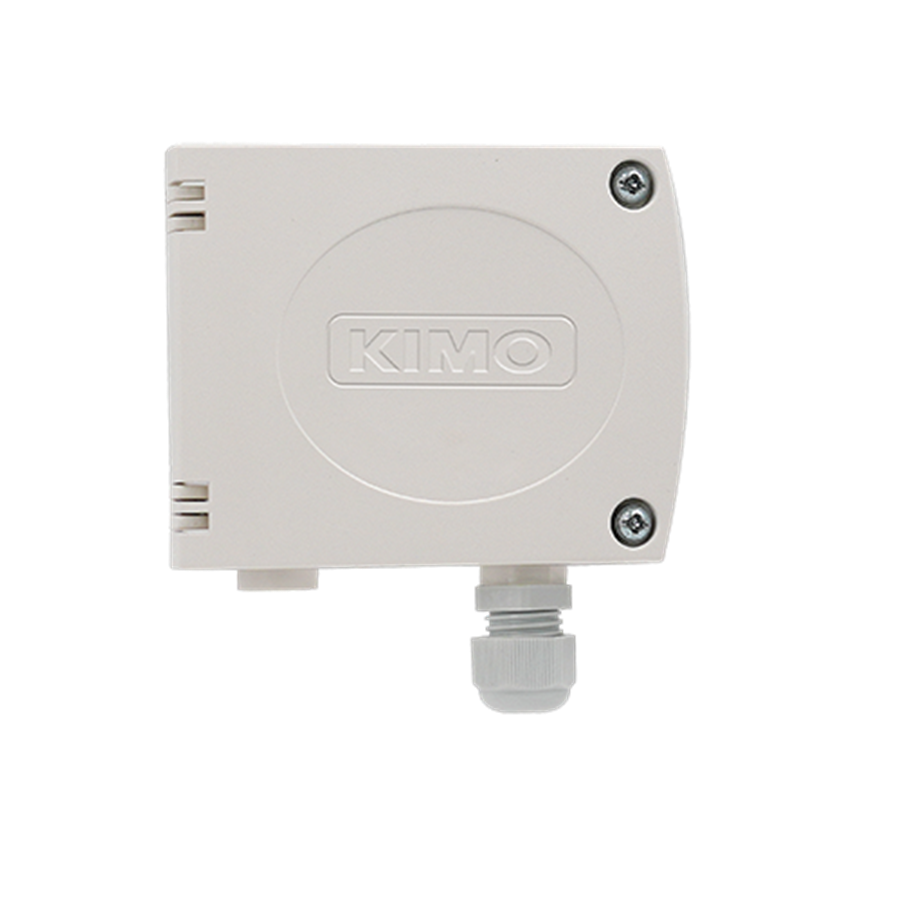

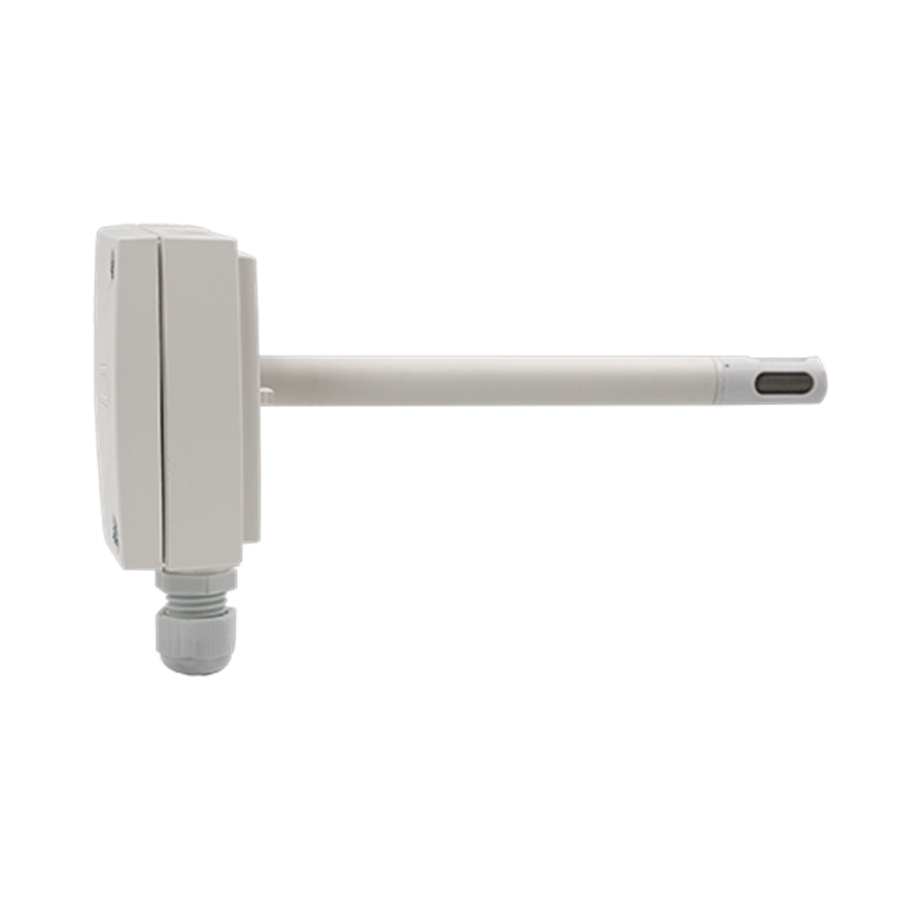

Available in wall-mounted or duct versions, these models adapt to different installation configurations and meet integrators' expectations in terms of space requirements, ease of implementation and minimising costs.

Technical specification table Operation manual Operation Manual (Simplified Version)
High accuracy: ±2%RH
Compatible with any EMS/BMS
0-10 V or 4-20 mA outputs
Compact IP54 housing


×

Product info

>Kit content

Download

Compliance

MEASURE DETAILS

  • Units
    °C, % RH

TECHNICAL DETAILS

  • Parameters
    Relative humidity
    Temperature
  • Displays
    No
  • IP Protection
    IP 54
  • Standards
    UKCA
    2011/65/EU RoHS II
    2012/19/EU WEEE
    2014/30/EU EMC
  • Power supply
    24 Vac/Vdc ±10% ou 16/30 Vdc
  • Outputs
    Active 0-10 V or passive 4-20 mA
  • Ethernet communication
    No
  • ModBus network
    No

INSTRUMENT DIMENSIONS

  • Weight
    126 g



OPERATING TEMPERATURE

  • Min
    -20.00 °C
  • Max
    60.00 °C

STORAGE TEMPERATURE

  • Min
    -25.00 °C
  • Max
    70.00 °C





1 Quick Start Guide
1 mounting plate with fixing screws
