Dust removal systems
Dust removal systems

Maintaining flow measurement reliability

The flow sensors in the ducts of dedusting systems use very reliable "Pitot" technology, but they are naturally subject to clogging. A cleaning solution exists to maintain the reliability of their measurements.

Dedusting systems are essential for evacuating particles and pollutants, and require continuous airflow measurement, the accuracy of which must be maintained to ensure optimum efficiency of the building's aeraulic system. However, this measurement is disrupted by the inevitable clogging of flow sensors by dust.

Parameter to be monitored

  • Air flow


METROLOGICAL SERVICES

SPOT MEASUREMENTS

CONTINUOUS MONITORING

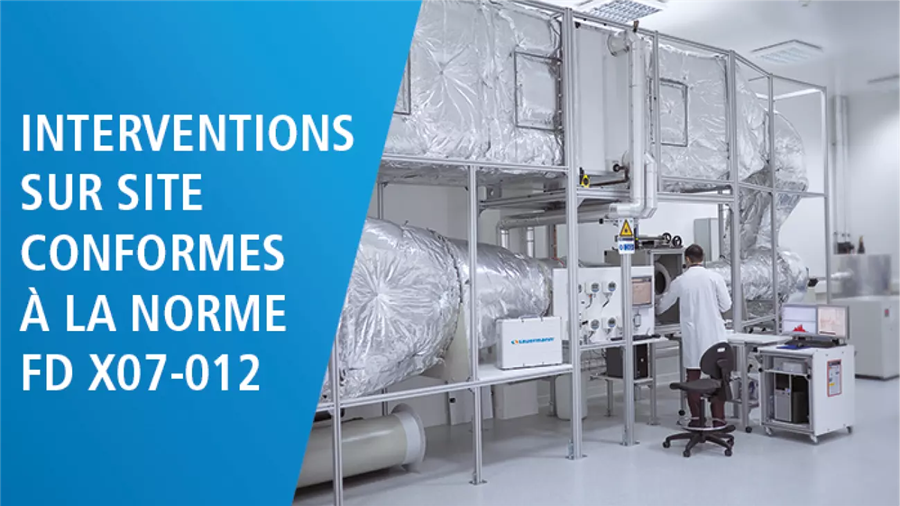

METROLOGICAL SERVICES
The airflow test benches in our laboratories can calibrate all types of airflow measurement devices.
METROLOGICAL SERVICES

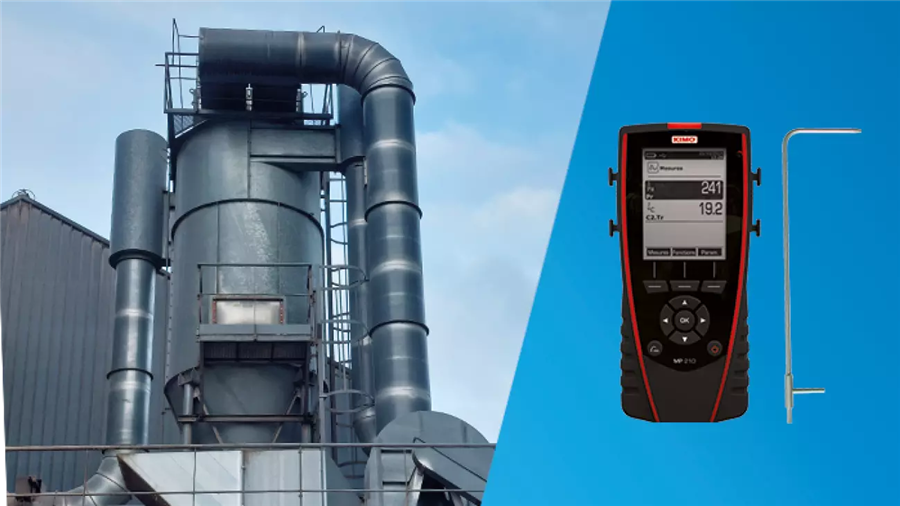

SPOT MEASUREMENTS
Spot measurements are used to check the condition of the airflow network and its dust collection system, to ensure that airflow is guaranteed at different points in the ducts. They are used for periodic maintenance and repair operations.
A good portable measuring device can also be connected to Pitot S or DEBIMO probes installed in ducts to check that they are working properly. Their calibration must be certified to provide accurate measurements for comparison with those of fixed transmitters.
SPOT MEASUREMENTS
Multifunction

Multifunction

AMI 310
Micromanometer

Micromanometer

MP 210
SPOT MEASUREMENTS

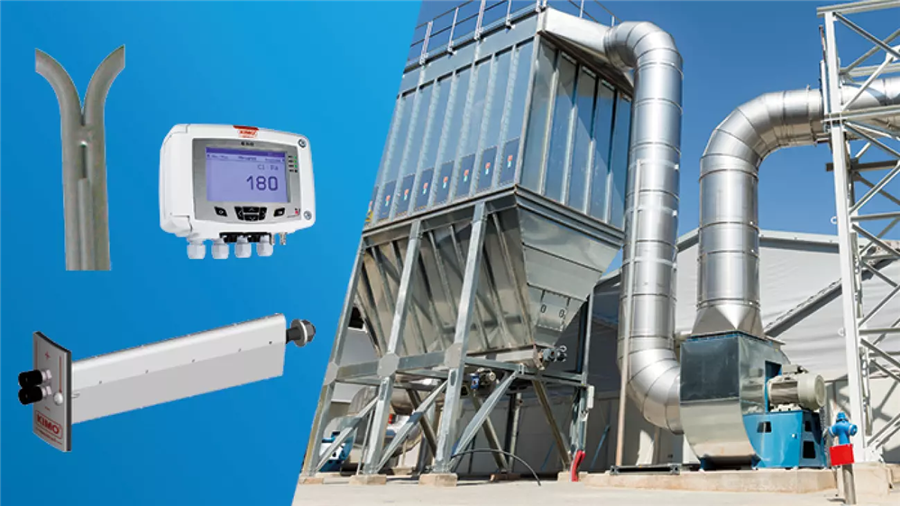

CONTINUOUS MONITORING
The best monitoring solution is based on a transmitter equipped with a self-calibrating pressure sensor and a stainless steel Pitot S probe, together with a dust collection box that automatically blows away dust to unclog the measuring holes.
The DEBIMO wings solution has the advantage of providing a multi-point measurement that gives a meaningful average of the entire duct cross-section. For maximum durability, these aluminium wings have an optional ECTFE treatment for solvent resistance.
CONTINUOUS MONITORING
Differential pressure and temperature sensor

Differential pressure and temperature sensor

CP 211
CONTINUOUS MONITORING
Products and accessories
  • Pressure module
    Pressure module

    MPR 500 / MPR 2500 / MPR 10000 / MPR 500 M / MPR 2000 M

    Kimo's pressure measuring modules consist of two pressure inputs and one thermocouple input. There are five models available.
    Read more
  • TPS Pitot tubes Type S
    TPS Pitot tubes Type S

    Measuring air velocity and air flow
    Read more
