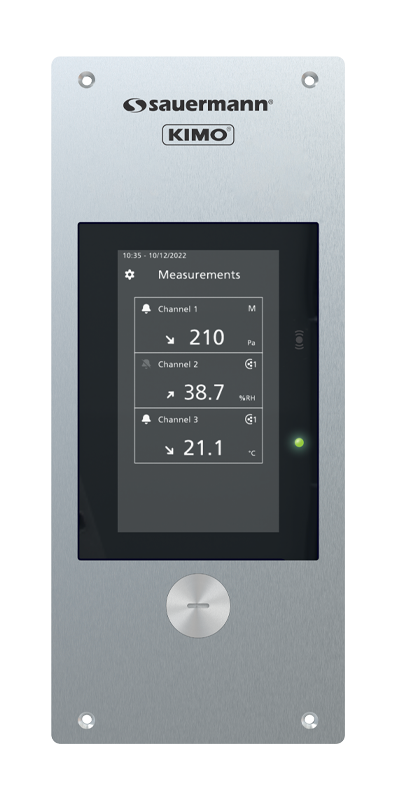

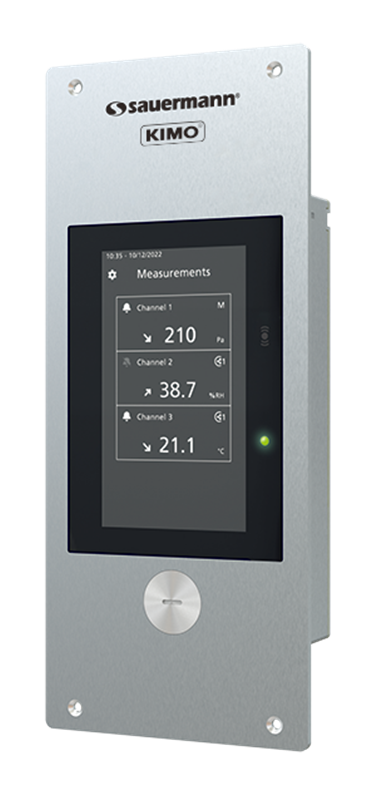

Si-ATE320

Flush-mount display

The flush-mount displays Si-ATE320 are a good solution to integrate the visualisation of the parameters measured by other sensors/transmitters into a single display device and, simultaneously, transfer these measurements to a BMS or Scada through modbus RTU.

Technical specification table Operation manual Operation Manual (Simplified Version)

Display of 1 to 3 parameters

Visual and acoustic alarms

Graphic Touch display

RS485 MODBUS protocol communication

IP 66, VHP resistant

30 pre-programmed units and custom units

×

Product info

>Kit content

Accessories

Download

MEASURE DETAILS

Units
ACH, dam³/h, fps, inWc, ppb, °Ctf, °F, °Ftf, °C, % RH, °Ctw, °Ctd, °Ftd, °Ftw, Pa, m³/s, PSI, kPa, ppm, g/m³, g/kg, kj/kg, m/s, mbar, l/s, hPa, m³/h, mmH₂O, mmHg, daPa, cfm
Alarm
Buzzer (60 dB at 10 cm)

TECHNICAL DETAILS

Parameters
Air velocity
CO
VOC
CO₂
Differential pressure
Relative humidity
Temperature
Displays
Graphic touch display
IP Protection
IP 66, VHP resistant (Vaporized hydrogen peroxide)
Standards
2015/863 EU (RoHS 3)
UKCA
2012/19/EU WEEE
2014/30/EU EMC
2014/35/EU Low Voltage
Power supply
24 VAC / VDC ±10%
Ethernet communication
No
ModBus network
Yes

INSTRUMENT DIMENSIONS

Length
3 15/16 inches
100 mm
Width
1 27/32 inches
47 mm
Height
9 7/32 inches
234 mm
Weight
1 17/32 pounds
700 g

OPERATING TEMPERATURE

Min
0.00 °C
Max
50.00 °C

STORAGE TEMPERATURE

Min
-10.00 °C
Max
70.00 °C

1 Si-ATE320

1 Quick Start Guide

1 RS485 interface with ModBus RTU protocol

Terminal blocks for power connection

BI320 Stainless steel housing

BI320 Stainless steel housing

3D File
