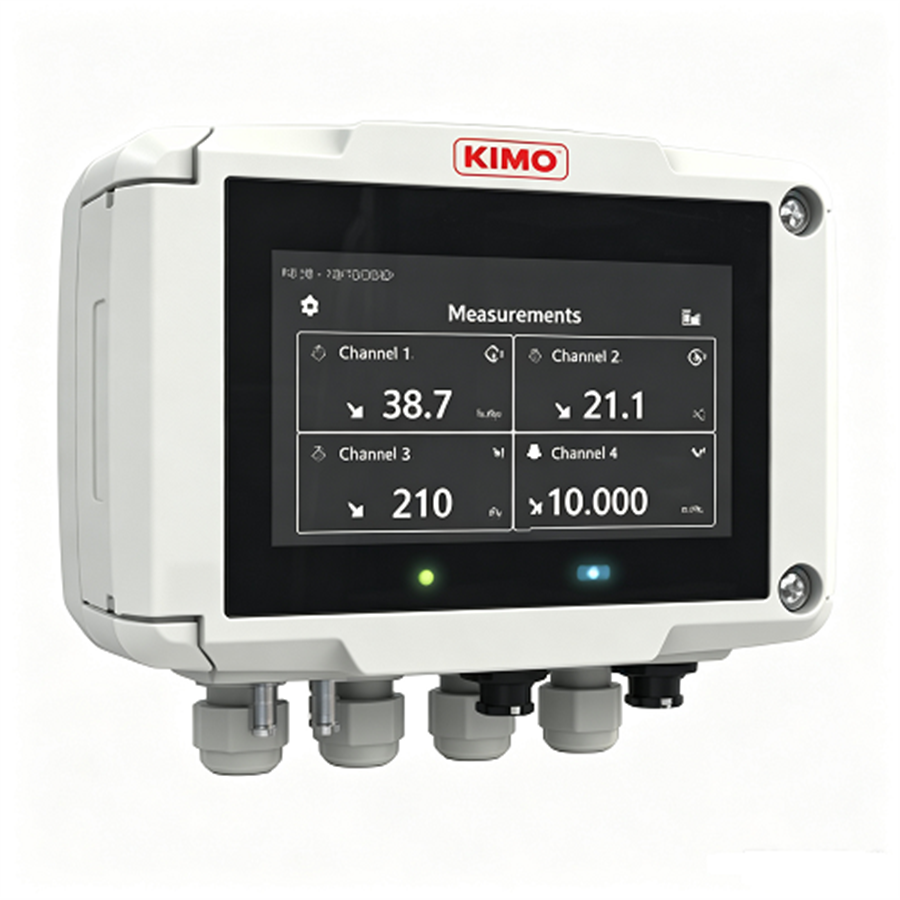

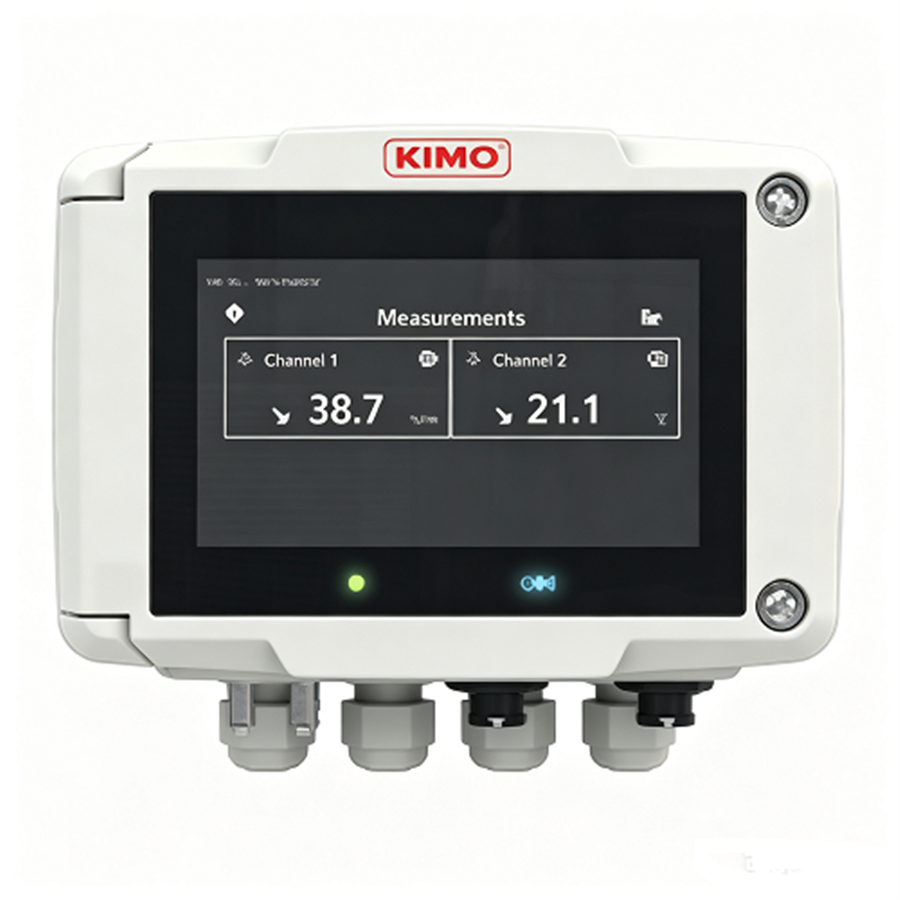

Si-C320

Multifunction transmitter

Inquiry

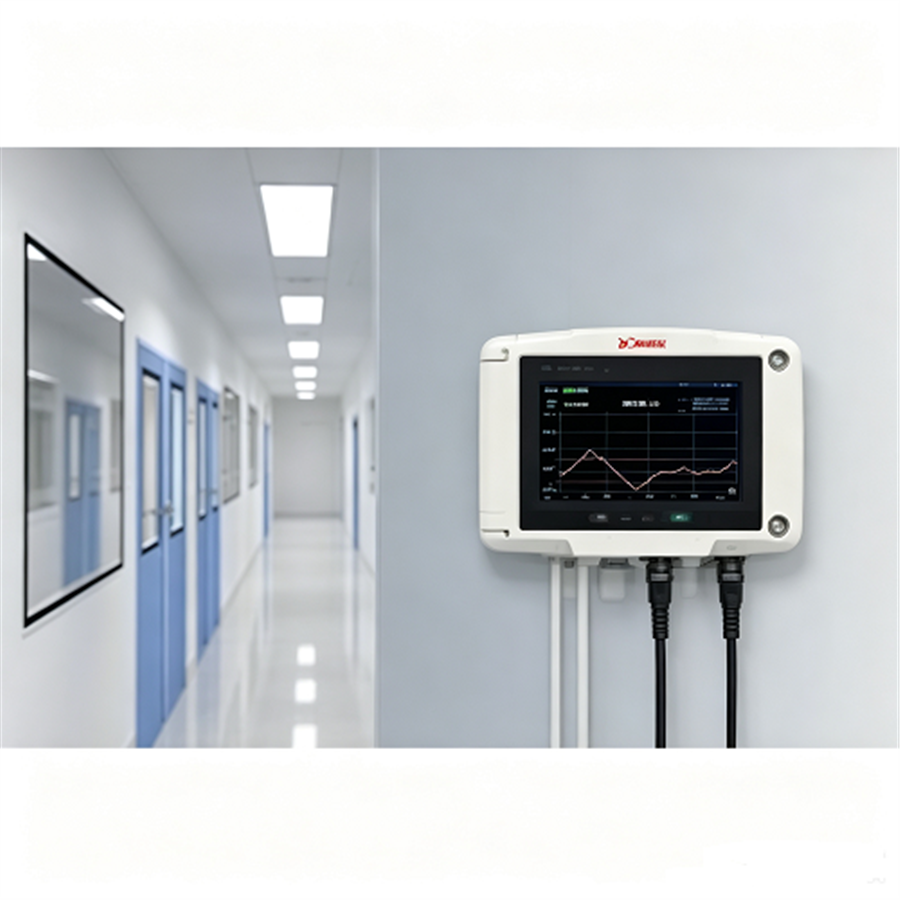

For clean rooms, regulated environments and industrial VAC applications where a perfect regulation/monitoring of the air parameters is needed, our Si-C320 transmitters provide reliable measurements and allow you to achieve compliance with the strictest regulations. The Si-C320 housing is waterproof, rugged and resistant to vaporised hydrogen peroxide (VHP). It also features a colour touch screen for comprehensive viewing and advanced control of measurement parameters. In addition, measurements can be recorded and downloaded via the Sauermann Control application/software. See all available models

Technical specification table Operation manual Operation Manual (Simplified Version)
Multifunction for VAC and IAQ applications
2 x inputs for external probes
4 x analogue outputs
1 x RS485 interface for ModBus RTU protocol
Outputs diagnostic
Possibility to edit the channel names


×

Product info

Probe

>Kit content

Accessories

APPSoftware

Video

Download

Compliance

MEASURE DETAILS

  • Units
    ACH, inH₂O, ppb, °Ctf, °F, °Ftf, °C, % RH, °Ctw, °Ctd, °Ftd, °Ftw, Pa, ppm, g/m³, g/kg, kj/kg, m/s, m³/h, cfm
  • Alarm
    Buzzer (60 dB at 10 cm)

TECHNICAL DETAILS

  • Parameters
    Absolute humidity
    Air Change Rate
    Air velocity
    Airflow
    Atmospheric pressure
    CO
    VOC
    CO₂
    Dew point
    Differential pressure
    Enthalpy
    Frost point
    Mixing Ratio
    Relative humidity
    Temperature
    Wet-bulb temperature
  • Displays
    Graphic touch display
  • IP Protection
    IP 66, VHP resistant (Vaporized hydrogen peroxide)
  • Standards
    2015/863 EU (RoHS 3)
    UKCA
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
    2014/53/EU RED
  • Wireless connection
    1
  • Power supply
    24 VAC / VDC ±10%
  • Outputs
    4 x 4-20 mA, 0-20 mA, 0-10 V and 0-5 V analogue outputs
  • Ethernet communication
    No
  • ModBus network
    Yes


INSTRUMENT DIMENSIONS

  • Length
    6 7/32 inches
    158.25 mm
  • Width
    3 1/32 inches
    76.65 mm
  • Height
    5 11/32 inches
    135.8 mm
  • Weight
    1 13/32 pounds
    626 g



OPERATING TEMPERATURE

  • Min
    -10.00 °C
    14.00 °F
  • Max
    50.00 °C
    122.00 °F

STORAGE TEMPERATURE

  • Min
    -10.00 °C
    14.00 °F
  • Max
    70.00 °C
    158.00 °F



Atmospheric pressure module

Atmospheric pressure module
DEBIMO Airflow measuring blades

DEBIMO Airflow measuring blades

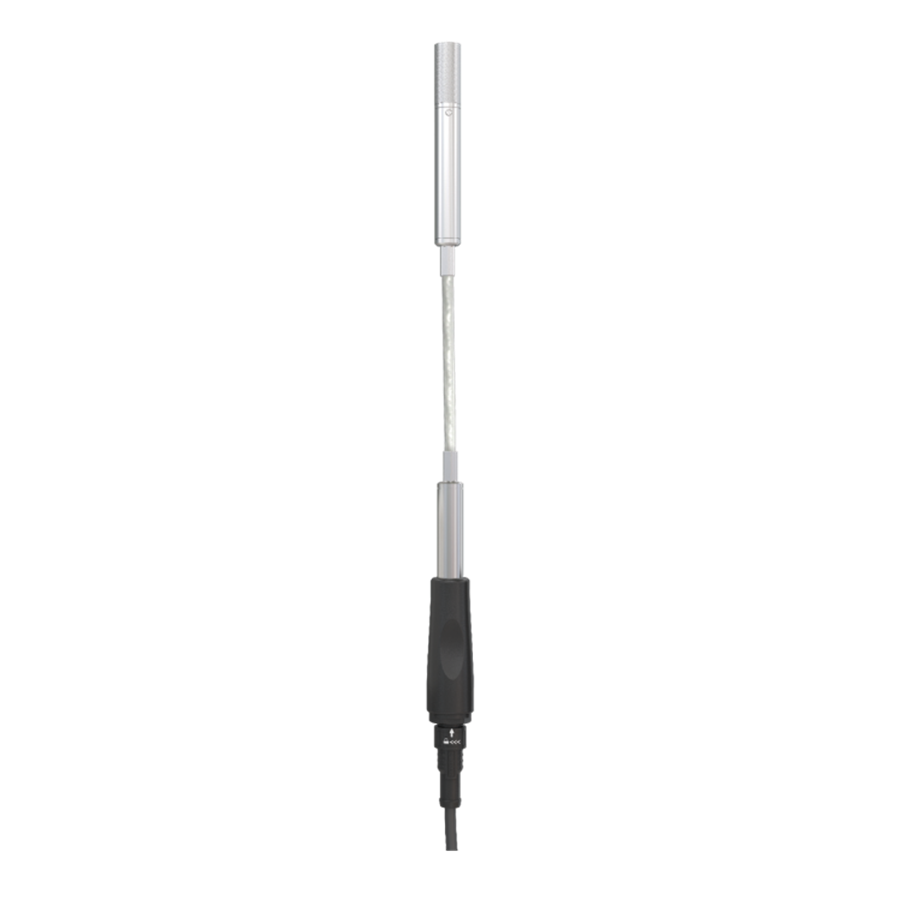

Heated humidity probe

Heated humidity probe

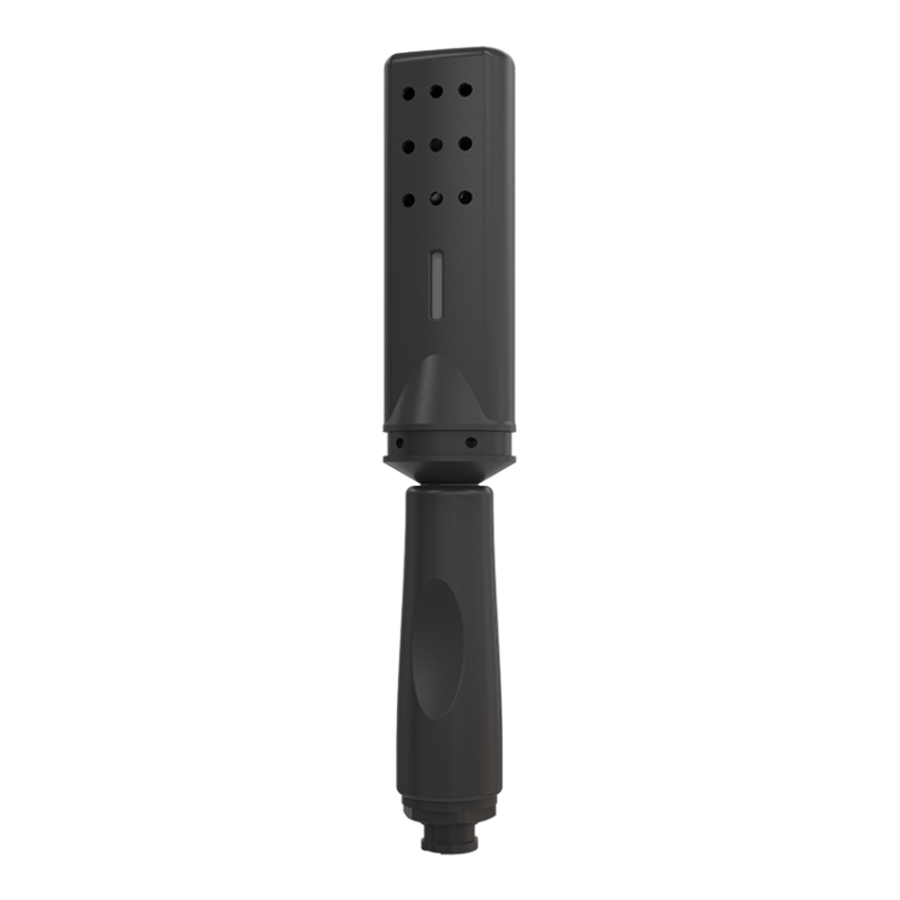

IAQ probes

IAQ probes

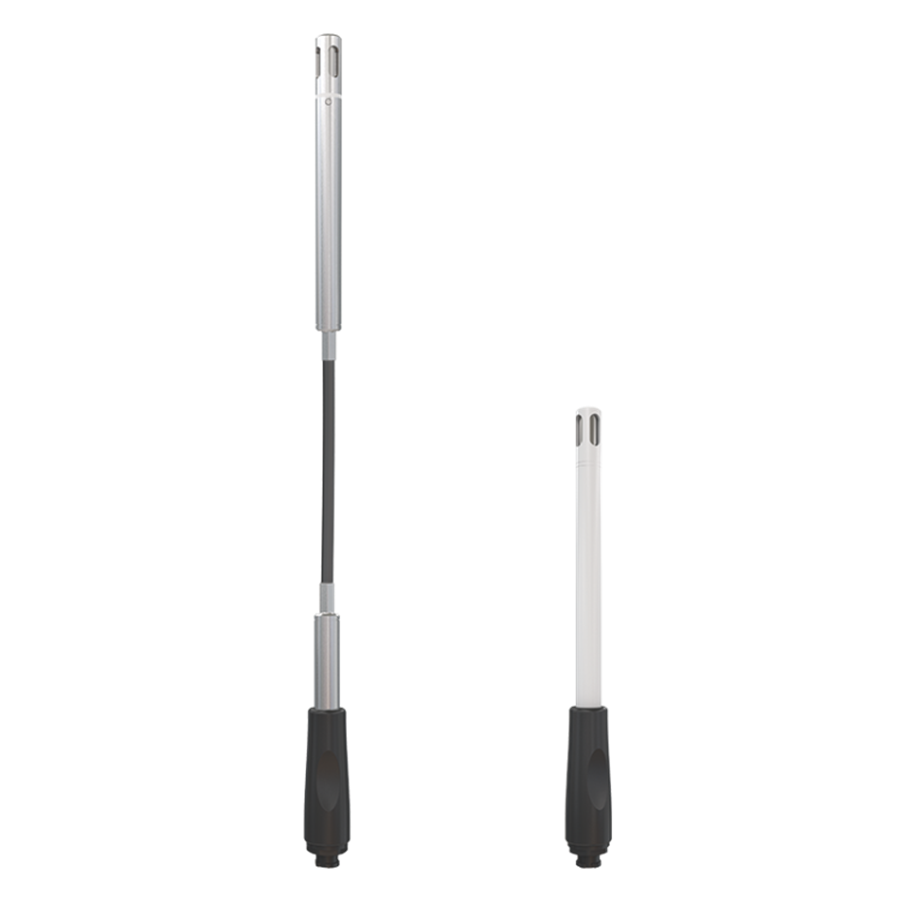

Hygrometry probes

Hygrometry probes

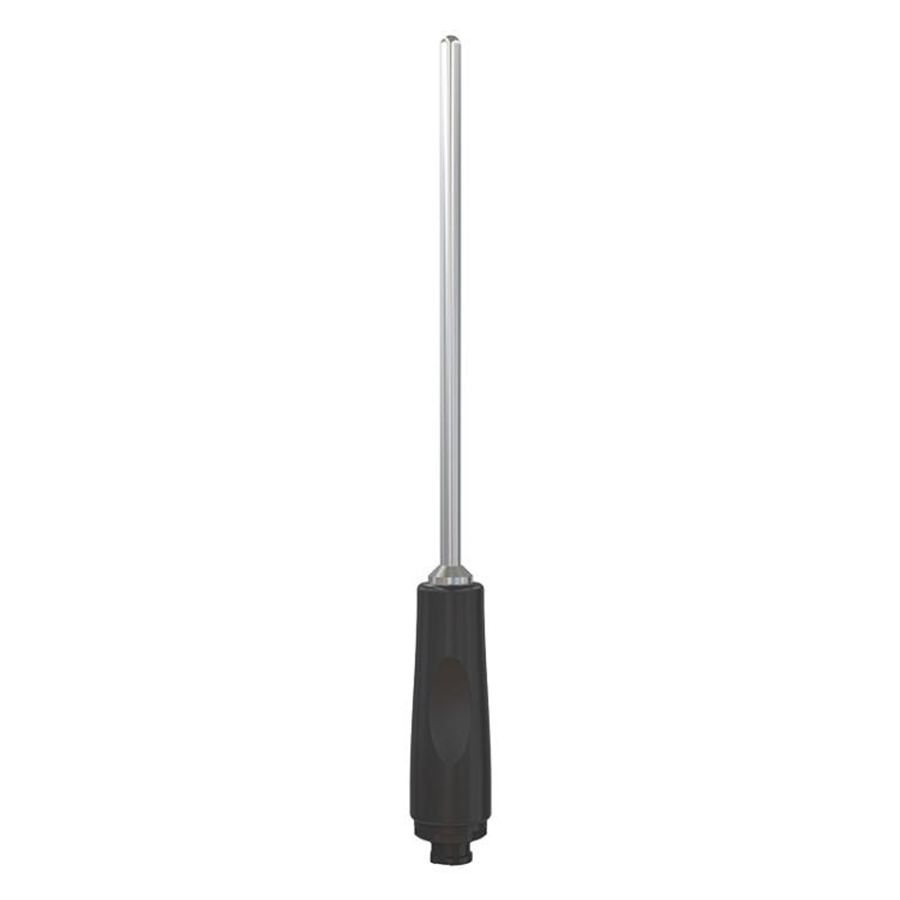

Temperature probe

Temperature probe

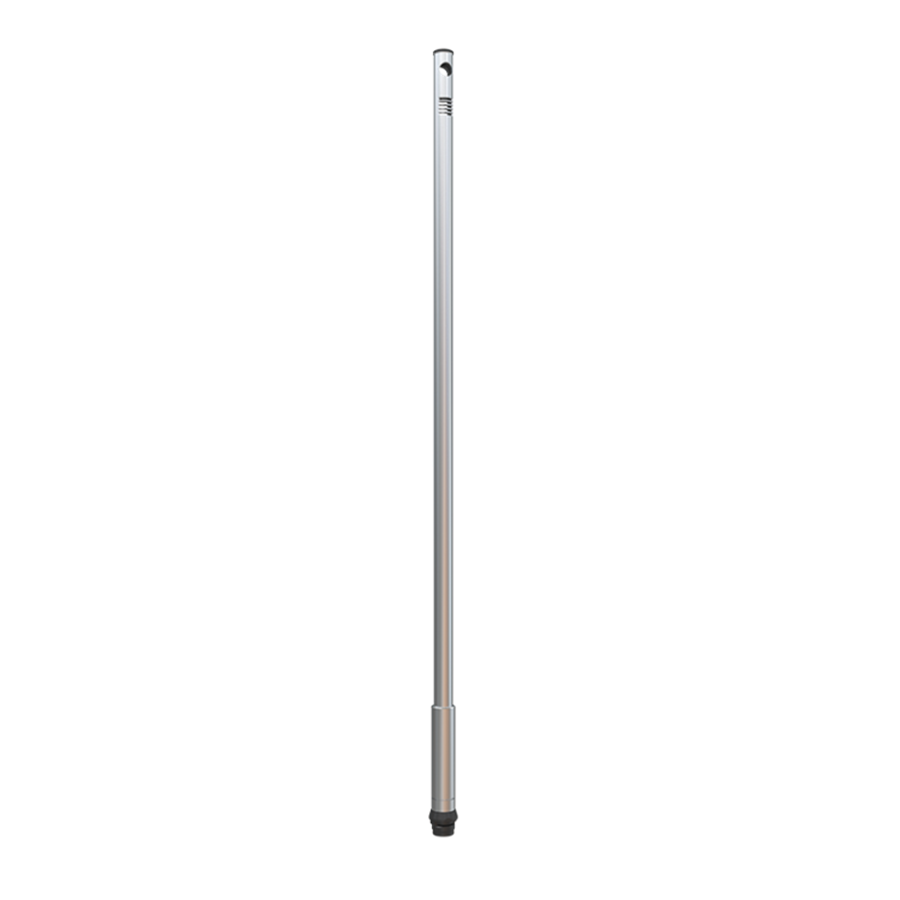

Air velocity hotwire probe

Air velocity hotwire probe

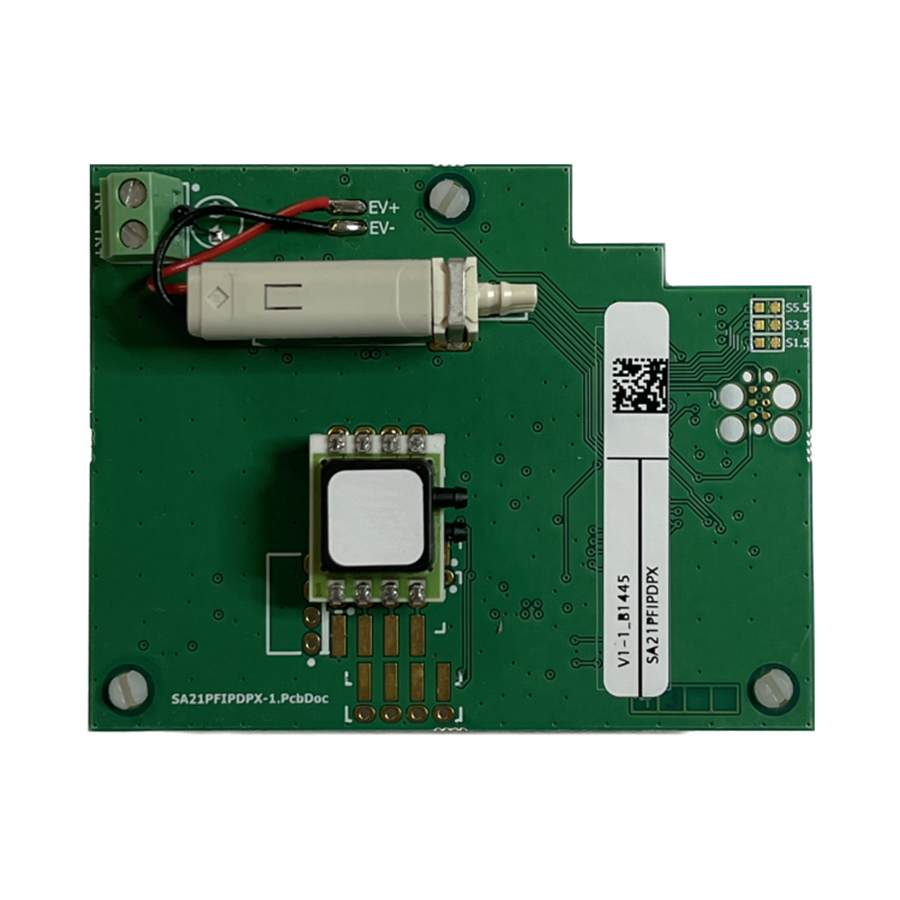

Differential pressure modules

Differential pressure modules
TPL Pitot tubes Type L

TPL Pitot tubes Type L
TPS Pitot tubes Type S

TPS Pitot tubes Type S
1 Si-C320 Multifunction transmitter
4 analogue outputs
1 RS485 interface with ModBus RTU protocol
Inputs for 2 x probes
1 slot for optional differential pressure module
1 slot for optional relay module
1 slot for optional wireless communication module
Terminal blocks for power connection
Terminal blocks for output connections
Wall-mount fixing plate
1 adjusting certificate


4x relay module

4x relay module
Wireless communication module

Wireless communication module
Transmitters and probes accessories

Transmitters and probes accessories

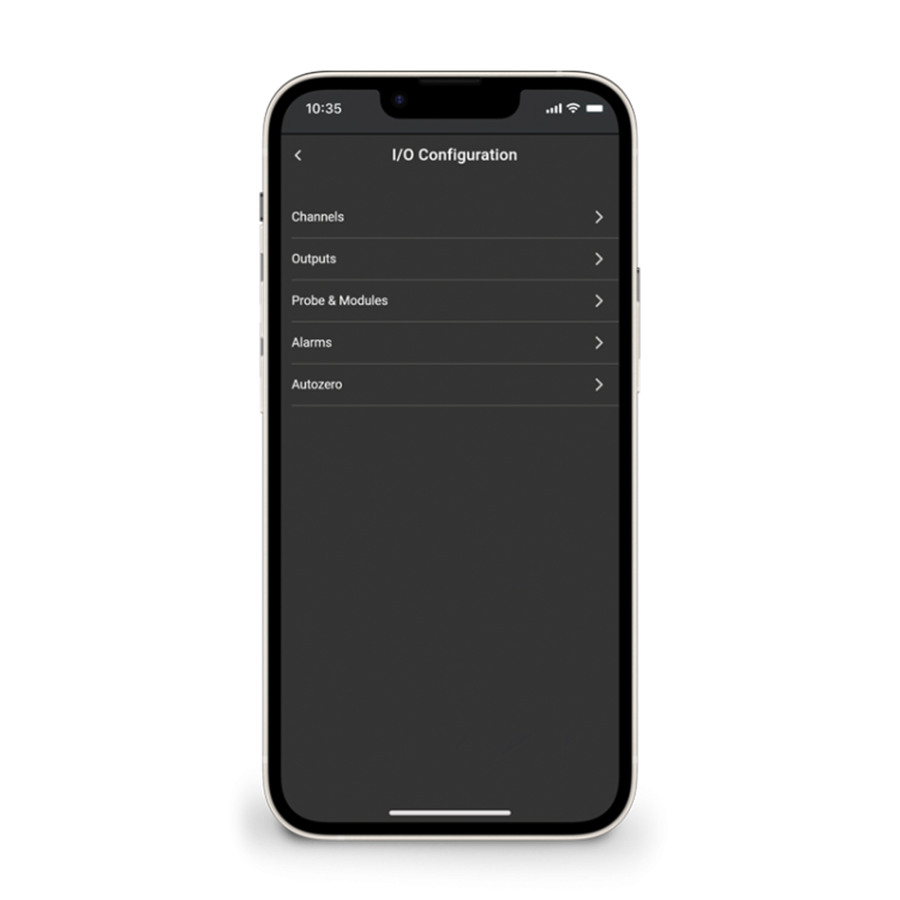

Sauermann Control mobile App

Sauermann Control mobile App

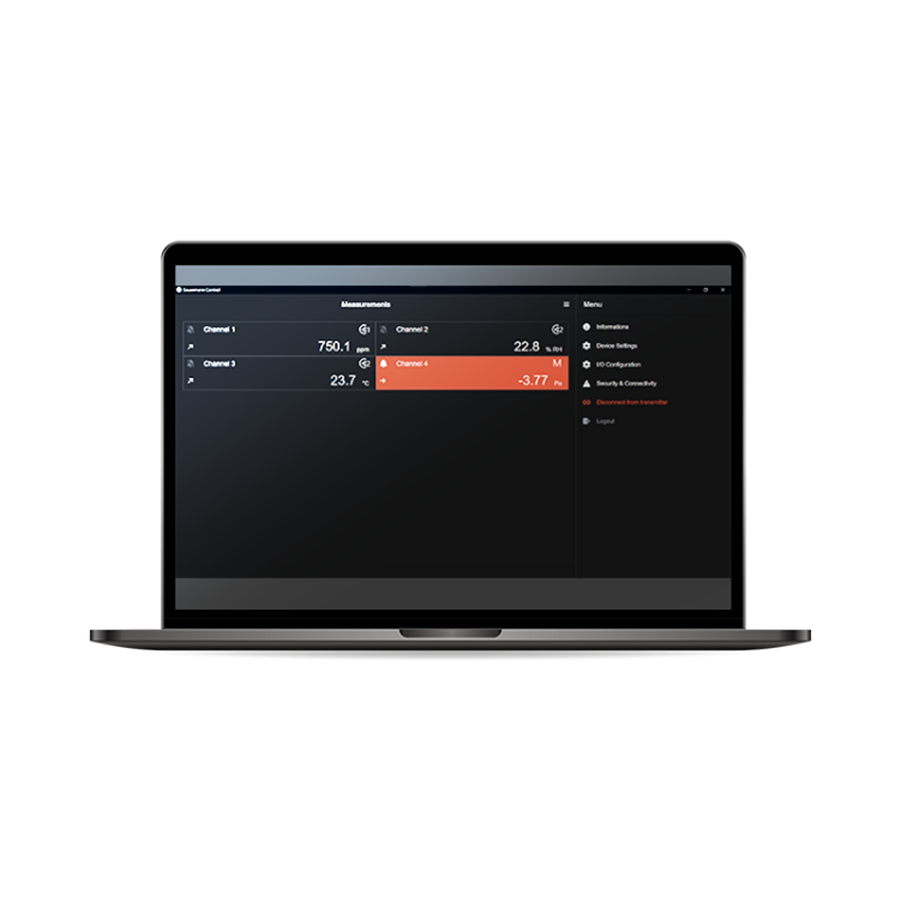

Sauermann Control software

Sauermann Control software
