Si-CPE320

Multifunction panel transmitter

Inquiry

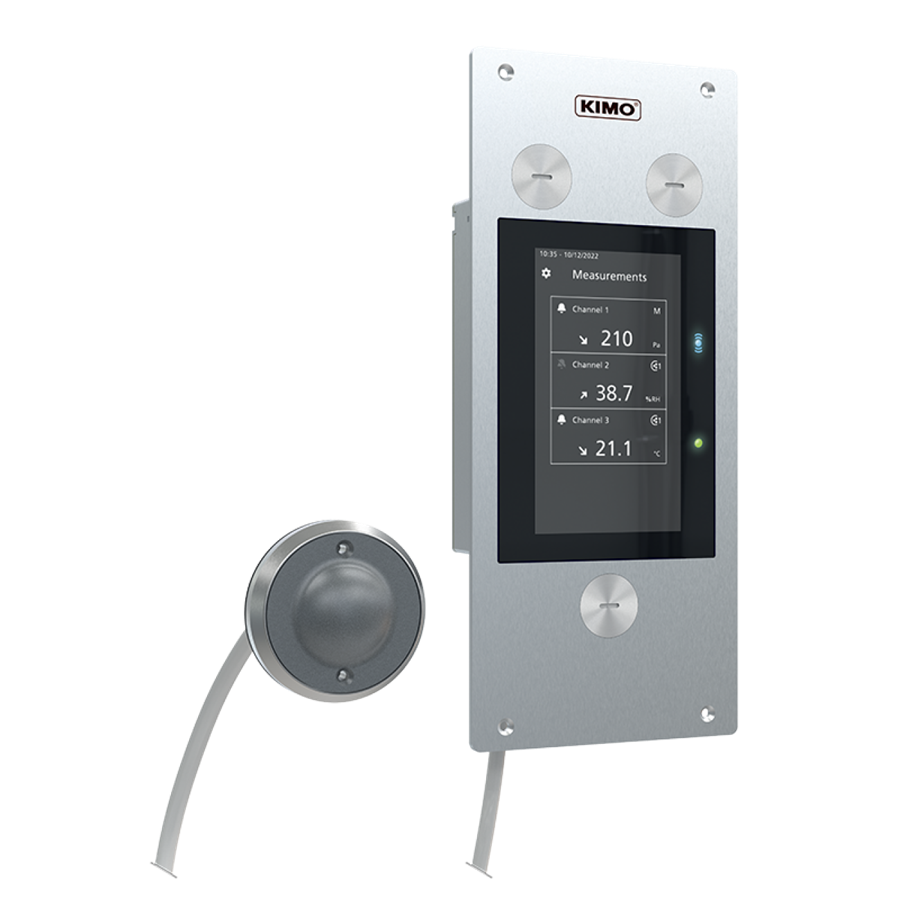

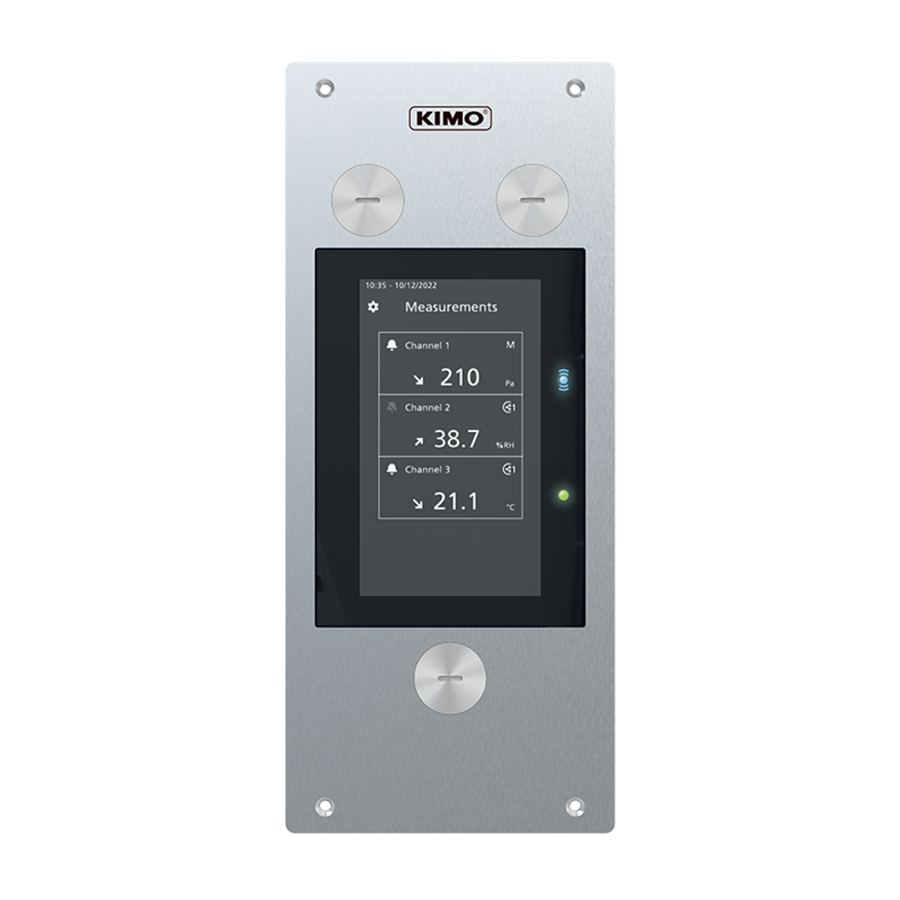

For clean rooms applications, the Si-CPE320 transmitter is flush mountable to avoid disturbing the working environment. It is equipped with a highgrade stainless-steel waterproof front panel with an integrated touch screen.
Equipped with the same technologies as the Si-C320, this panelmounted version provides state-of-the-art reliability and accuracy.
In addition, measurements can be recorded and downloaded via the Sauermann Control application/software.
Si-CPE320: Optional wireless communication module
Si-CPE320-W: Integrated wireless communication module

Technical specification table Operation manual Operation Manual (Simplified Version)
1 x input for external probe
3 x analogue outputs
Graphic touch display
IP 66, VHP resistant (Vaporized hydrogen peroxide)
Outputs diagnostic
Possibility to edit the channel names


×

Product info

Probe

>Kit content

Accessories

APPSoftware

Video

Download

Compliance

MEASURE DETAILS

  • Units
    ACH, inH₂O, inWc, °Ctf, °F, °Ftf, °C, % RH, °Ctd, °Ftw, Pa, kPa, g/m³, g/kg, kj/kg, mbar, m³/h, mmH₂O, daPa, cfm
  • Alarm
    Buzzer (60 dB at 10 cm)

TECHNICAL DETAILS

  • Parameters
    Absolute humidity
    Air Change Rate
    Air velocity
    Airflow
    CO
    VOC
    CO₂
    Dew point
    Differential pressure
    Enthalpy
    Frost point
    Mixing Ratio
    Relative humidity
    Temperature
    Wet-bulb temperature
  • Displays
    Graphic touch display
  • IP Protection
    IP 66, VHP resistant (Vaporized hydrogen peroxide)
  • Standards
    2015/863 EU (RoHS 3)
    UKCA
    2012/19/EU WEEE
    2014/30/EU EMC
    2014/35/EU Low Voltage
    2014/53/EU RED
  • Wireless connection
    1
  • Power supply
    24 VAC / VDC ±10%
  • Outputs
    3 x 0/4-20 mA or 3 x 0-5/10 V (4 wires)
  • Ethernet communication
    No
  • ModBus network
    Yes


INSTRUMENT DIMENSIONS

  • Length
    3 15/16 inches
    100 mm
  • Width
    1 27/32 inches
    47 mm
  • Height
    9 7/32 inches
    234 mm
  • Weight
    1 1/2 pounds
    684.4 g



OPERATING TEMPERATURE

  • Min
    -10.00 °C
    14.00 °F
  • Max
    50.00 °C
    122.00 °F

STORAGE TEMPERATURE

  • Min
    -10.00 °C
    14.00 °F
  • Max
    70.00 °C
    158.00 °F



Heated humidity probe

Heated humidity probe
Relative humidity and temperature probe

Relative humidity and temperature probe
IAQ probes

IAQ probes
Hygrometry probes

Hygrometry probes
Temperature probe

Temperature probe
Air velocity hotwire probe

Air velocity hotwire probe
1 Si-CPE320 multifunction panel transmitter
1 integrated high accuracy differential pressure sensor (-250 to 250 Pa / -1.0 to 1.0 inH₂O)
3 analogue outputs
1 RS485 interface with ModBus RTU protocol
1 input for probes
1 adjusting certificate
Terminal blocks for power connection, and output connections
1 front pressure connector cap with a pierced hole in the middle
1 silicone cap for closing a rear pressure connector
1 protective cap for frontal interface connection
1 protective cap for the external probe connector
