Air velocity and flow measurement on fume cupboards
Air velocity and flow measurement on fume cupboards

Laboratory inspection and safety

Essential for operators’ safety, fume hoods prevent contamination of ambient air by maintaining a constant suction flow at the front. Kimo instruments and Sauermann services ensure that this air flow is properly controlled.

Safety standards require several test points, some of which are crucial: mapping of face velocities, measurement of outlet airflow, and measurement of ambient airflow within the laboratory. Sauermann offers end-to-end solutions for these performance tests.

Parameters to be monitored

  • Air velocity and airflow


FRONTAL VELOCITY MAPPING

EXHAUST AIR FLOW MEASUREMENT

AMBIENT VELOCITY MEASUREMENT

METROLOGICAL SERVICES

FRONTAL VELOCITY MAPPING

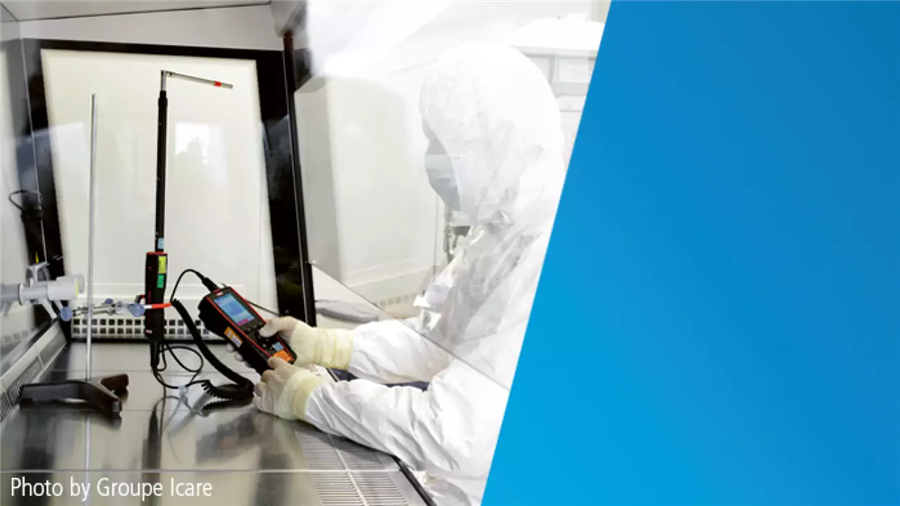

This mapping involves taking measurements at several points on the front side to check the homogeneity and velocity of the inflowing air. Kimo hot-wire anemometers (± 3% VL, ± 0.03 m/s) guarantee the accuracy of these measurements.
The number of measurement points depends on the width of the fume cupboard, and the recommended average velocity is 0.4 m/s, evenly applied to each point. Our probe extensions and telescopic hot wires allow you to avoid standing in front of the fume cupboard, in order not to disrupt the air flow.
FRONTAL VELOCITY MAPPING
Air velocity hot wire probes

Air velocity hot wire probes

SFC 300 / SFC 900 / SFC 900 GN / SFC 300 S
Multifunction

Multifunction

AMI 310
Thermo-hygrometer-anemometer

Thermo-hygrometer-anemometer

VT 210
FRONTAL VELOCITY MAPPING
EXHAUST AIR FLOW MEASUREMENT

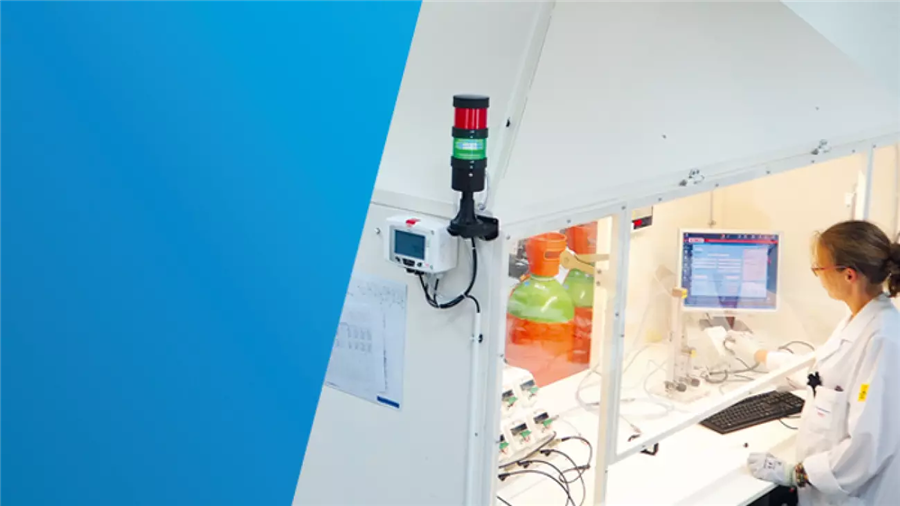

The exhaust airflow rate extracted from the fume hood is an essential measurement for monitoring its suction performance. It can be measured on the fume cupboard outlet duct (portable instrument, hot-wire sensor) or even in the technical area (transmitter).
If the flow rate is too low, the fume cupboard cannot guarantee proper extraction of emanations, which could then contaminate the surrounding air. If the flow rate is too high, turbulence may also compromise containment and reduce the energy efficiency of the system.
EXHAUST AIR FLOW MEASUREMENT
Multifunction transmitter

Multifunction transmitter

Si-C320
Air velocity hotwire probe

Air velocity hotwire probe

Si-PRO-V-300
Air velocity and temperature sensor

Air velocity and temperature sensor

CTV 210
EXHAUST AIR FLOW MEASUREMENT
AMBIENT VELOCITY MEASUREMENT

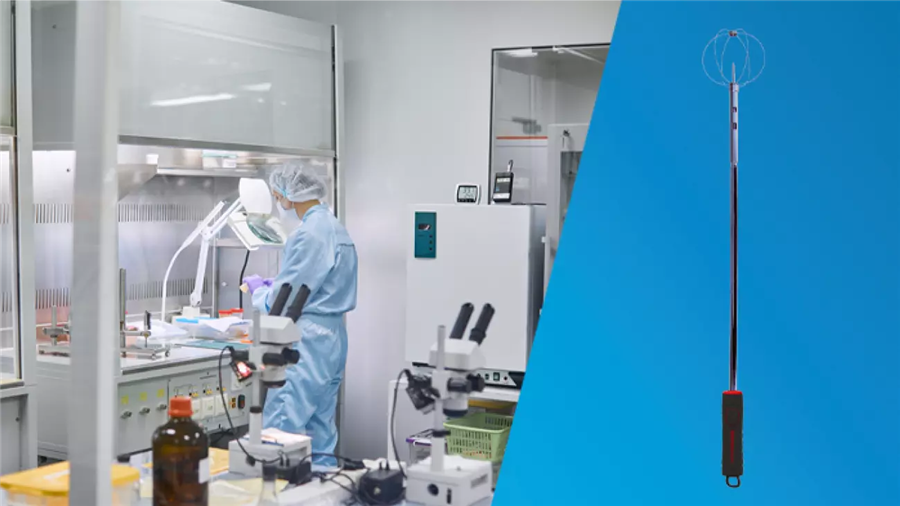

The behaviour of the ambient air around the fume hood (ventilation system, door openings) must also be monitored, as it can interfere with the flow of air drawn into it. An omnidirectional hot-wire probe is essential for this type of measurement.
Given the very low velocities required (0.2 m/s), the accuracy of the measuring instruments is crucial. A Kimo device with an omnidirectional hot-wire probe measures the average velocity of ambient air, regardless of flow direction, with an accuracy of ± 0.05 m/s and a resolution of 0.01 m/s.
AMBIENT VELOCITY MEASUREMENT
Omnidirectional probe SOM 900

Omnidirectional probe SOM 900

SOM 900
Multifunction

Multifunction

AMI 310
Thermo-hygrometer - Air quality

Thermo-hygrometer - Air quality

HQ 210
AMBIENT VELOCITY MEASUREMENT
METROLOGICAL SERVICES

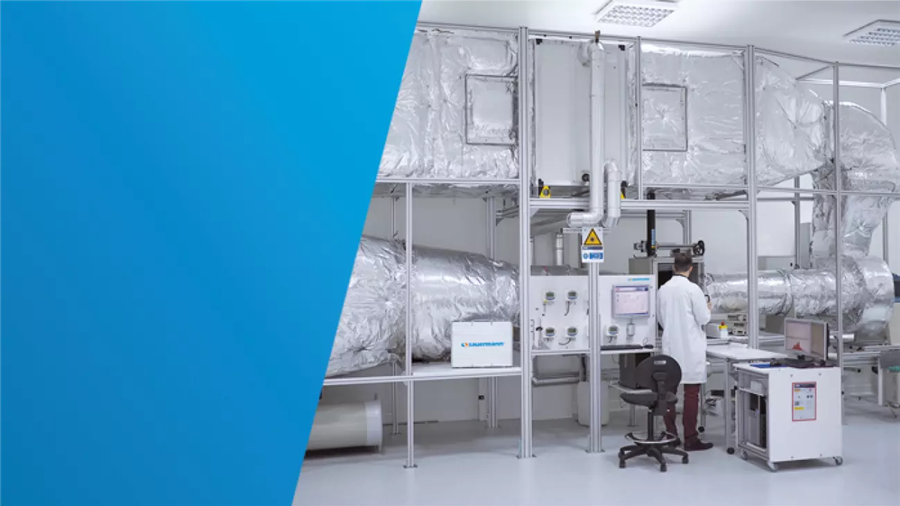

Sauermann has state-of-the-art laboratories in France for the calibration and verification of measuring equipment, using highly advanced velocity and flow test benches to guarantee the precision required for fume hood inspection.
To guarantee the accuracy of measurements of frontal velocities, ambient velocities and airflow in and around fume hoods, the instruments must be accurate to very low values. Metrological follow-up (calibration and verification) is therefore essential.
METROLOGICAL SERVICES
