HOME Applications Monitoring and Regulation
Air conditioning and ventilation

Monitoring and Regulation

Monitoring and Regulation

In critical settings, ventilation systems need to be monitored around the clock to make sure indoor air is being managed as optimally as possible. Here, monitoring involves preventing and detecting breakdowns and malfunctions of the air conditioning system. Measuring instruments also enable real-time regulation of the entire air conditioning system in a building, room by room.

This application requires multifunction transmitters, or transmitters specially designed to measure a specific parameter. The regulation process therefore forms part of the Building Management System. In addition, it relies on SCADA (Supervisory Control and Data Acquisition) systems – a computerised environment that also optimises the building’s energy use by analysing data collected by our measurement instruments.

That’s why Sauermann’s transmitters are open by design, meaning they have standard outputs – both analogue and digital. And our transmitters offer the ultimate in flexibility when it comes to BMS topology, structure and configuration.


The aim is to regulate air quality parameters non-stop and around the clock, to achieve flawless indoor air quality management and to support preventive maintenance of the ventilation system. The awareness about indoor air quality has become one of the pillars of the developments of the HVACR industry.

The impact that the design, control and maintenance of VAC systems have on each individual's health and well-being is known. It does have a direct influence on the energy efficiency too. Creating the best indoor air conditions following specific guidelines is the main goal of regulations like the ANSI/ASHRAE Standard 62.1. With a given set of specific procedures and engineering methods, the ANSI/ASHRAE Standard 62.1 provides the tools to design and manage VAC systems in non-residential buildings, delivering the outmost air quality. The continuous analysis of the key air parameters through measuring is an essential part to succeed in such important challenge. Sauermann's instruments have been designed to help you reaching this goal.


Monitoring and Regulation

MULTIFUNCTION TRANSMITTERS

TEMPERATURE AND HUMIDITY

PRESSURE

AIR VELOCITY AND AIR FLOW

CARBON DIOXIDE

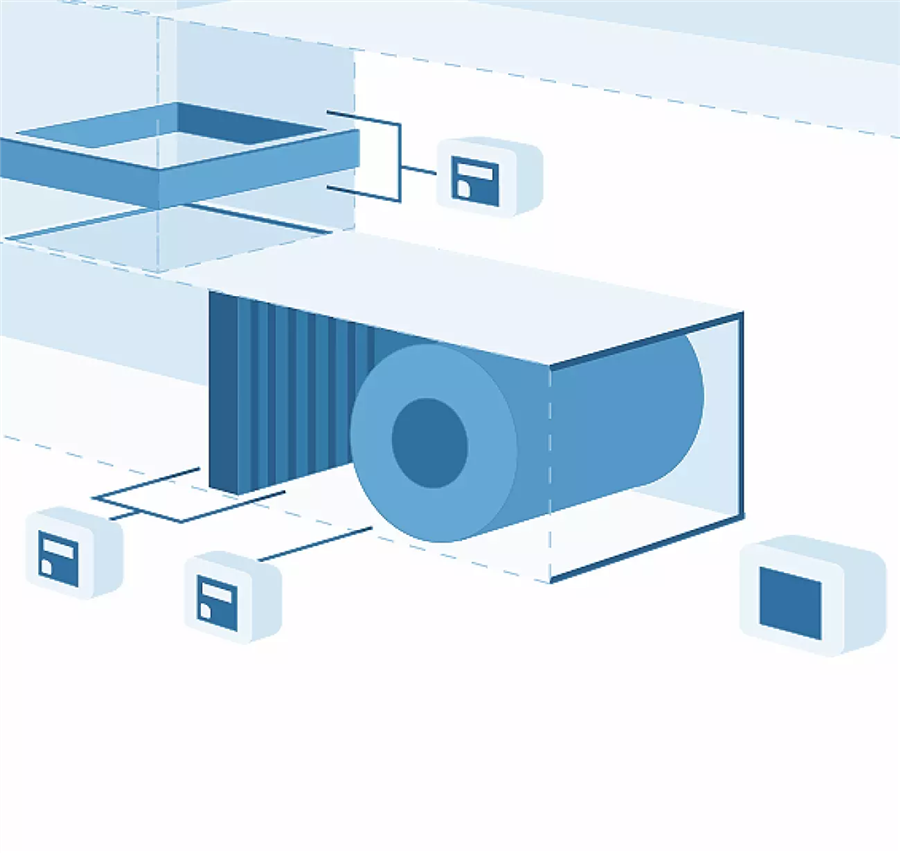

MULTIFUNCTION TRANSMITTERS
Sauermann’s multifunction transmitters are great to measure differential pressure and psychrometric parameters simultaneously in specific VAC applications. These premium instruments deliver unmatched reliability and are built to withstand the test of time.
Measuring differential pressure is especially important in buildings, helping to monitor filters in aeraulic networks. Some of these filters are HEPA or ULPA models, which are designed to remove airborne micro- and nano-particles including bacteria and viruses. Filters' efficiency decreases quickly as they get clogged, meaning they need to be monitored constantly for replacement planning purposes. These multifunction measurement instruments can also accommodate one or more additional probes for monitoring extra parameters (atmospheric pressure, temperature/humidity, air velocity and air flow, and CO/CO2/VOC concentration).
Multifunction transmitter

Multifunction transmitter

Si-C320
MULTIFUNCTION TRANSMITTERS

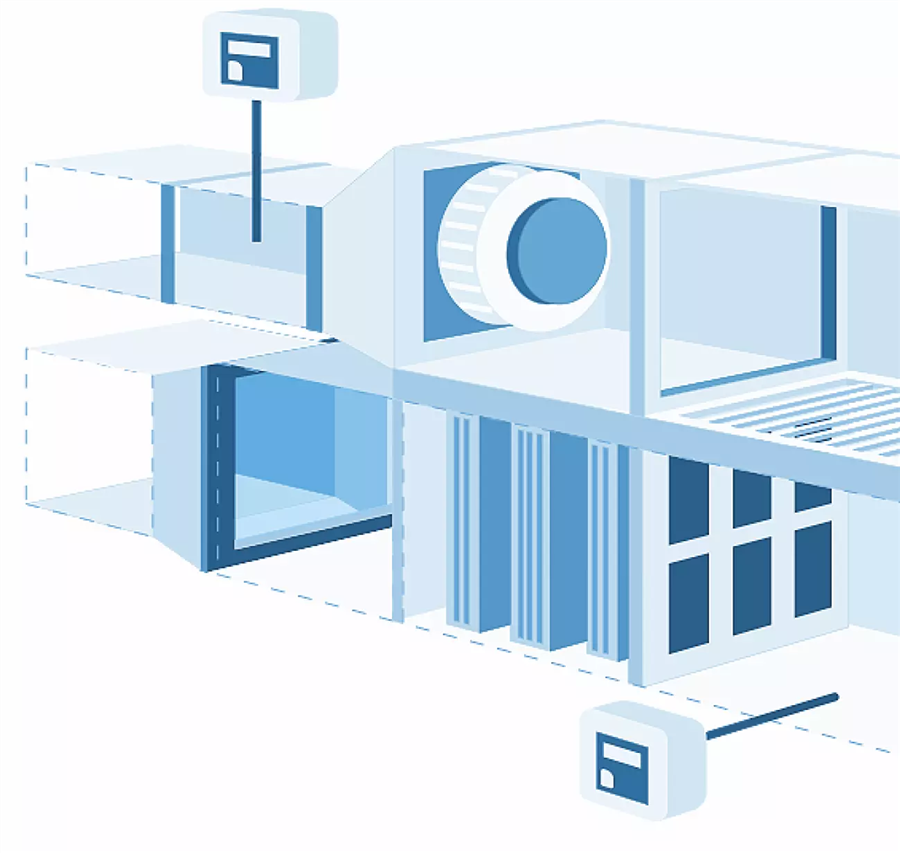

TEMPERATURE AND HUMIDITY
Temperature and relative humidity are the key indicators of the climatic conditions inside a building. They are essential to both occupant comfort and the preservation of products in store rooms. The regulation of these parameters is therefore vital not only for health and quality purposes, but also for financial reasons, since regulating temperature and humidity is essential to achieve the energy efficiency standards set by recent environmental regulations. Likewise, effective monitoring helps to identify weak points in a building’s insulation. Sauermann has been supplying temperature and humidity transmitters for 45 years. All our models undergo strict reliability checks for both parameters before leaving our factories, with the results certified by our ISO 17025:2017-accredited laboratories in France. Buildings of all types rely on our expertise for indoor air regulation: factories, warehouses, museums, schools, hospitals, offices and more.
TM 110 Temperature transmitter / sensor

TM 110 Temperature transmitter / sensor
Humidity and temperature sensor

Humidity and temperature sensor

TH 110
TEMPERATURE AND HUMIDITY

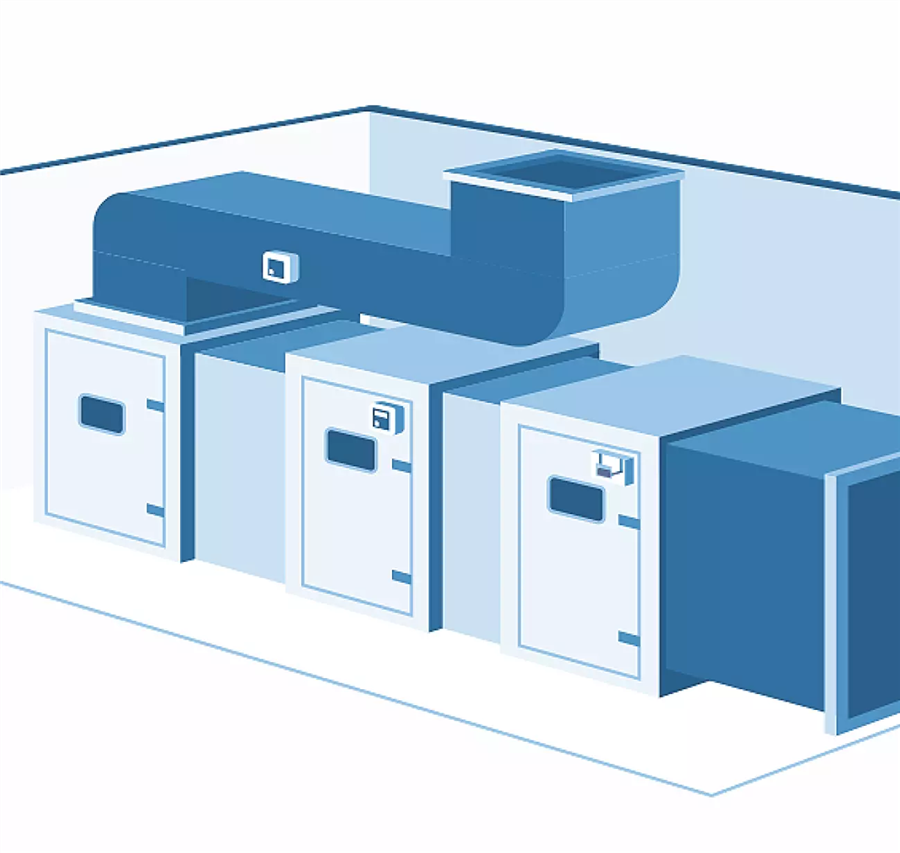

PRESSURE
Measuring differential pressure is especially important in monitoring the performance of air treatment units. These measurements are taken at air filters and ducts, where differential pressure measurements can be used to deduce the air flow rate.
The filters inside air treatment units get clogged at different rates depending on their filtration efficiency. Constant monitoring is vital for antibacterial HEPA and ULPA filters in particular.
Differential pressure values taken between both sides of a filter indicate the extent of clogging and help to determine when the filter needs to be replaced as part of preventive maintenance planning – the process by which maintenance work is scheduled at the most appropriate moment in order to reduce or eliminate downtime.
Building on its long-standing expertise in pressure measurement instruments, Sauermann’s solutions – connected digital manometers and liquid column manometers – cover the complete range of applications. Our digital manometers are ideal for recording values remotely and over time. All models feature a visual and audible alarm, and some come with an integrated display. Meanwhile, our liquid column manometers set new standards for durability and work without power supply, which makes them exceptionally resilient.
Inclined Liquid Column Manometers

Inclined Liquid Column Manometers

MG Series
Pressostat

Pressostat

PST-11

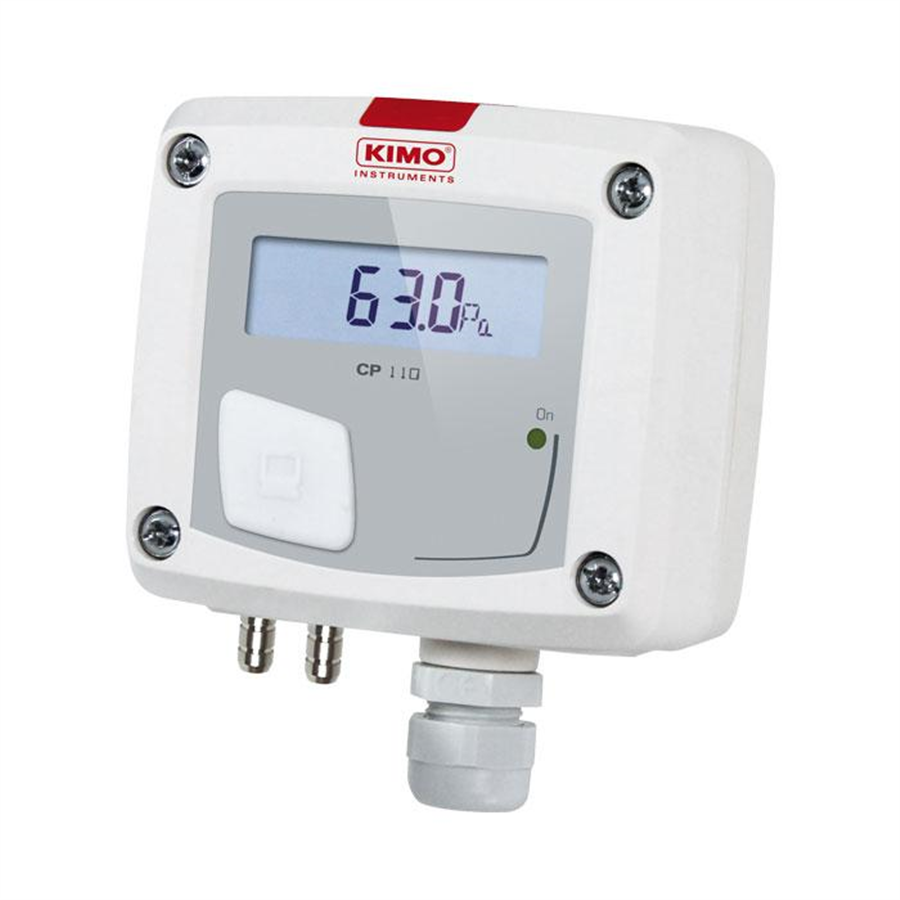

Differential pressure transmitter

Differential pressure transmitter

CP 111
PRESSURE

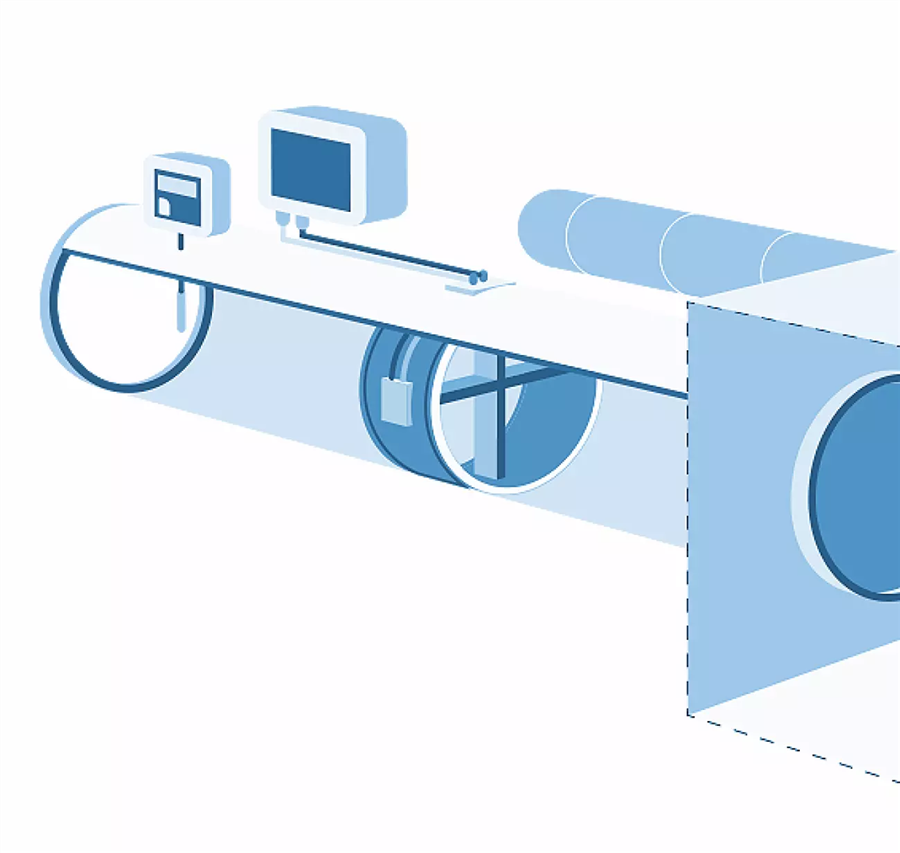

AIR VELOCITY AND AIR FLOW
Monitoring air velocity and flow rate helps to ensure that air is circulating properly in air-conditioned buildings. And crucially, it gives an indication as to whether the air change rate is sufficient in parts of the building where this is necessary.
Having a regular circulation of fresh air is essential to keep the climate constant, especially in rooms containing equipment that radiates heat such as machines, power supply units and microcomputers. In other instances, it helps to remove cold air or chemicals released by particular products.
That’s why Sauermann has developed advanced instruments for monitoring and recording air velocity and flow rate values in ventilation system pipes, covering both inlets and outlets. Our solutions also include DEBIMO blades, a renowned technology for calculating air exchange volumes in ventilated premises in real time.
Air velocity and temperature sensor

Air velocity and temperature sensor

CTV 210
Differential pressure and temperature sensor

Differential pressure and temperature sensor

CP 211
AIR VELOCITY AND AIR FLOW

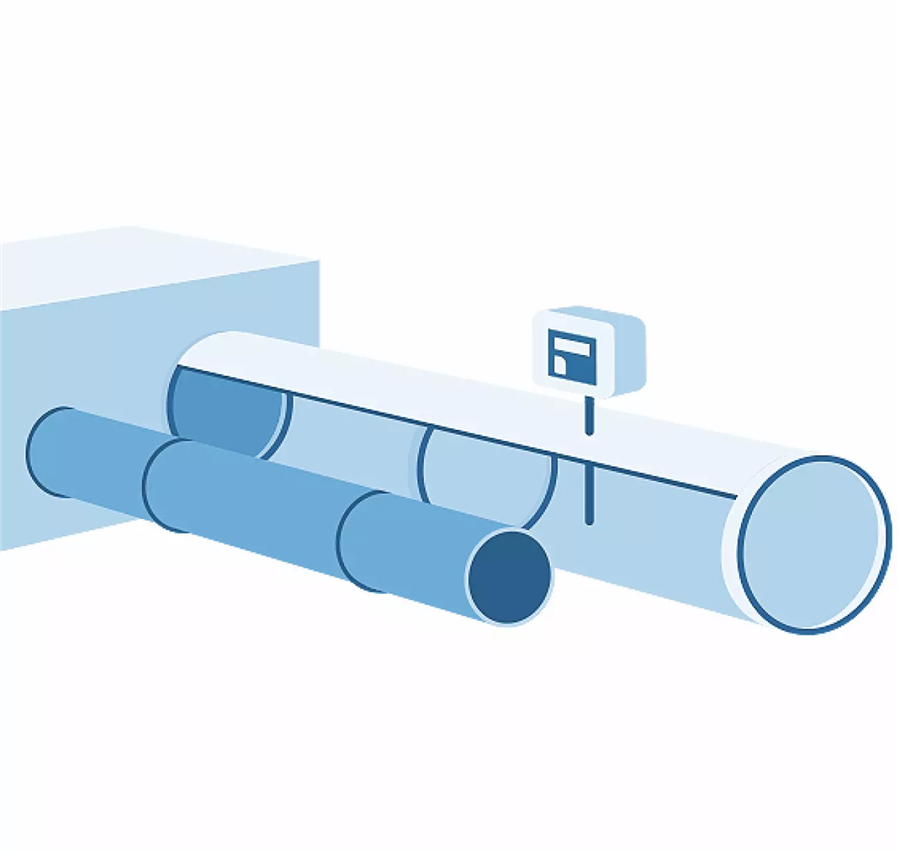

CARBON DIOXIDE
Because CO2 concentration the environment is an important indicator of the indoor air quality, it is a key parameter in determining the overall and ultimate efficiency of a building’s ventilation system.
CO2 concentration can be measured quickly and in real time, but capturing reliable measurements requires high-end CO2 sensors. Sauermann’s technology is totally reliable: non-dispersive infrared (NDIR) sensors integrated into instruments that are calibrated by our in-house metrological service.
CO2 measurement is no longer exclusive to the most critical buildings. In fact, it is highly recommended in all public premises, including schools and offices. Scientists currently agree that a CO2 concentration between 800 and 1,000 ppm indicates a sufficient air change rate to reduce the concentration of bacteria and viruses suspended in the air, thereby mitigating the potential spread of airborne pathogens.
CARBON DIOXIDE
Products and accessories
  • Multifunction transmitter
    Multifunction transmitter

    Si-C320

    For clean rooms, regulated environments and industrial VAC applications where a perfect regulation/monitoring of the air parameters is needed, our Si-C320 transmitters provide reliable measurements and allow you to achieve compliance with the strictest regulations. The Si-C320 housing is waterproof, rugged and resistant to vaporised hydrogen peroxide (VHP). It also features a colour touch screen for comprehensive viewing and advanced control of measurement parameters. In addition, measurements can be recorded and downloaded via the Sauermann Control application/software. See all available models
    Read more
  • CO meter
    CO meter

    CO 110

    The Kimo CO 110 is a portable, handheld carbon monoxide (CO) meter with a 4-line display that allows you to easily measure carbon monoxide content in ambient air. Carbon monoxide can be a silent killer.
    Read more
  • Accessories for liquid column manometers
    Accessories for liquid column manometers

    Kimo offers a wide range of liquid column manometers accessories.
    Read more
  • Inclined Liquid Column Manometers
    Inclined Liquid Column Manometers

    MG Series

    Kimo's MG series are inclined liquid column manometers with AWS.10 manometer liquid with a density of 0.87.
    Inclined liquid column manometers measure slight variations in pressure, depression or differential pressure of air or gas.
    Read more
  • Vertical Liquid Column Manometers
    Vertical Liquid Column Manometers

    TJ Series

    Kimo's TJ range of vertical liquid column manometers are used for measuring variations of pressure, depression or differential pressure of air or gas within a measurement range. These may vary depending on the type of manometric liquid used: AWS.10 or VOLT.1S.
    Read more

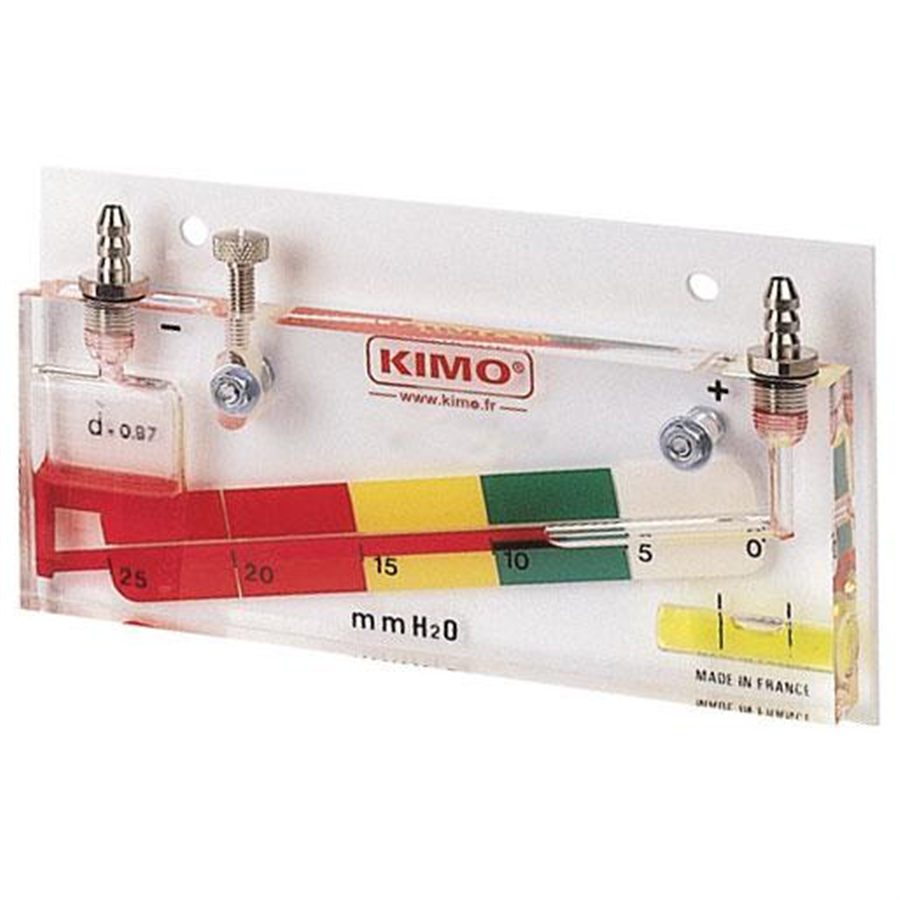

  • Inclined liquid column manometer
    Inclined liquid column manometer

    CP 25

    Kimo's CP 25 inclined liquid column manometer measures slight variations in pressure, depression or differential pressure of air or gas. It is specially designed for checking clogging of filters in painting booths.
    Read more
  • Transmitters and probes accessories
    Transmitters and probes accessories

    Read more
  • SF 50 Cable temperature probe with resistive element
    SF 50 Cable temperature probe with resistive element

    -50 ~ +400 °C
    Read more
