Duct airflow control
Duct airflow control

Reliable measurements for optimum HVAC management

Duct measurement is a highly complex process, since its effectiveness depends on the many different configurations of the ductwork. Good measurement is essential to ensure efficient air distribution in a building and the comfort of its occupants.

Mapping cross-sections, taking into account turbulent areas, determining the right measurement locations and taking multi-point readings (exploring velocity fields)... All these complex methods require the use of portable and fixed measuring instruments with different probe types.

Parameters to be monitored

  • Airflow

  • Velocity

  • Temperature

  • Pressure


CONTINUOUS MONITORING

PITOT TUBE MEASUREMENTS

HOT WIRE MEASUREMENTS

METROLOGICAL SERVICES

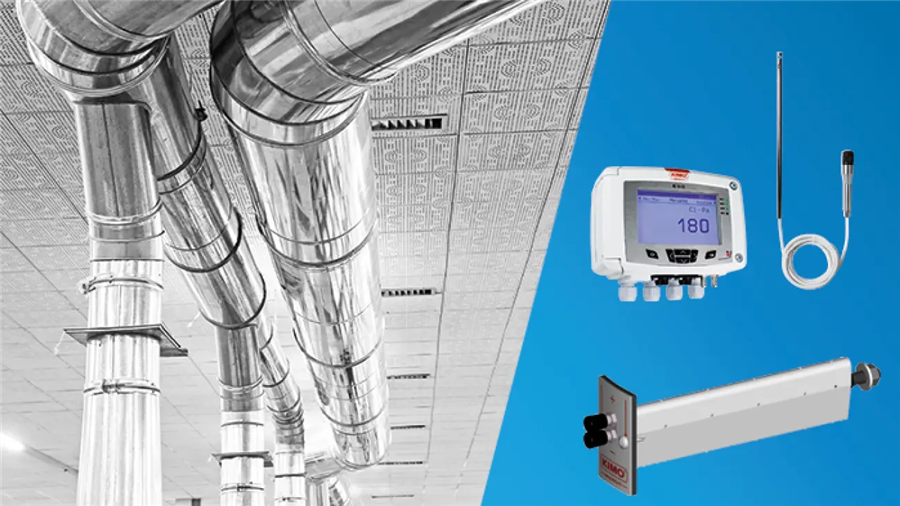

CONTINUOUS MONITORING
Sauermann manufactures DEBIMO wings with various measuring points positioned in accordance with NF X10-112 standards, ensuring efficient measurement averaging. This measurement can be compensated for temperature and atmospheric pressure, depending on the associated sensor model.
For highly sensitive, accurate measurements in non-turbulent flows up to 50°C, hot wire is recommended. For turbulent and polluted flows up to 210°C, DEBIMO wings provide a more suitable multi-point, averaged measurement.
CONTINUOUS MONITORING
Multifunction transmitter

Multifunction transmitter

Si-C320
Temperature and air velocity transmitter

Temperature and air velocity transmitter

CTV 114
Air velocity and temperature sensor

Air velocity and temperature sensor

CTV 210
CONTINUOUS MONITORING

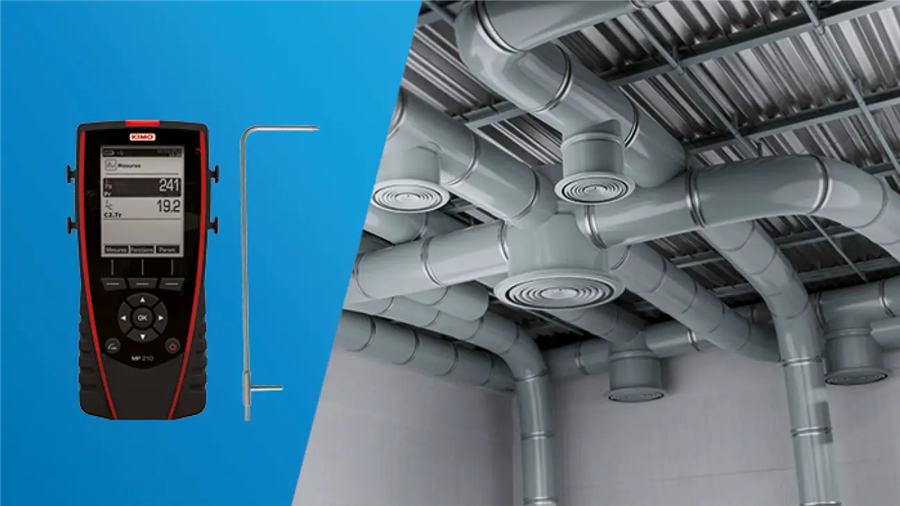

PITOT TUBE MEASUREMENTS
L-shaped Pitot tube measurement enables reliable measurement in ducts where the air may be polluted, at high temperature, slightly turbulent, and up to a speed of 100 m/s. This measurement is made using a pressure sensor integrated into a manometer or multifunction device.
To compensate for any turbulence, our Class 210 and 310 devices feature a "measurement integrator" function to smooth out fluctuations. An averaging function also enables reliable determination of duct air velocity or airflow.
PITOT TUBE MEASUREMENTS
Manometer

Manometer

MP 120L
Multifunction

Multifunction

AMI 310
Micromanometer

Micromanometer

MP 210
PITOT TUBE MEASUREMENTS

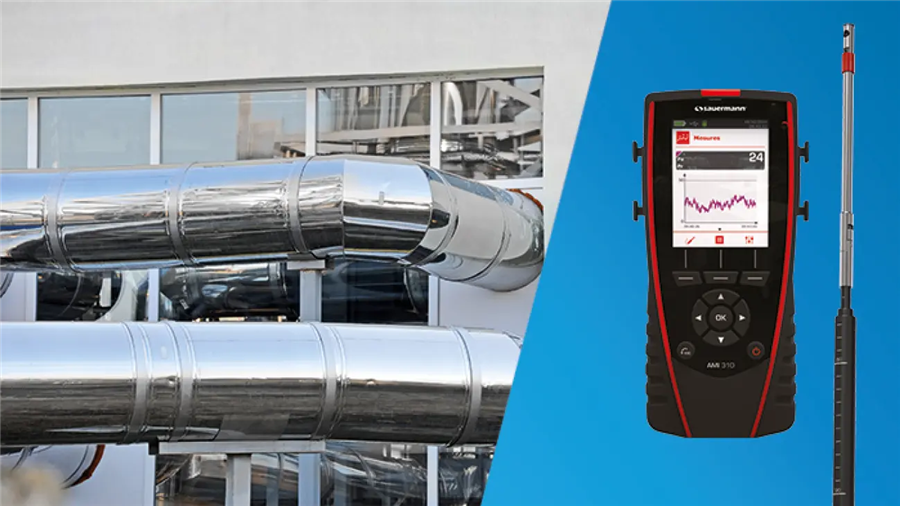

HOT WIRE MEASUREMENTS
For clean, non-turbulent air networks, hot-wire measurement is the most precise and sensitive solution. Throughout the ventilation network, our probes and their extension leads enable measurements in compliance with existing standards (NF X10-112, NF 12599, NF 16211, etc.).
Our hand-held devices feature an "Average" function to obtain a flow value that represents the entire airflow in the duct from several measurement points. This method ensures optimum measurement of the duct airflow.
HOT WIRE MEASUREMENTS
Hotwire thermo-anemometer

Hotwire thermo-anemometer

VT 110 / VT 115
Multifunction

Multifunction

AMI 310
Micromanometer

Micromanometer

MP 210
HOT WIRE MEASUREMENTS
METROLOGICAL SERVICES
The airflow test benches in our laboratories can calibrate all types of airflow measurement devices.
METROLOGICAL SERVICES
Products and accessories
  • Pressure module
    Pressure module

    MPR 500 / MPR 2500 / MPR 10000 / MPR 500 M / MPR 2000 M

    Kimo's pressure measuring modules consist of two pressure inputs and one thermocouple input. There are five models available.
    Read more
  • Air velocity hotwire probe
    Air velocity hotwire probe

    Si-PRO-V-300

    Interchangeable hotwire probe for air velocity and temperature measurements.
    Stainless steel body length 267 mm (10.51''), Ø 8 mm (0.31'').
    Thanks to its design, it minimises the impact of the angle of the airflow on the measurements.
    Main applications: laminar flow monitoring in clean rooms, isolators, glove boxes, fume hoods, isolation cabinets, pharma/cosmetic and semiconductors manufacturing facilities.
    Si-ACC-RVP probe cable for connection to class 320 transmitters is needed.
    Read more
